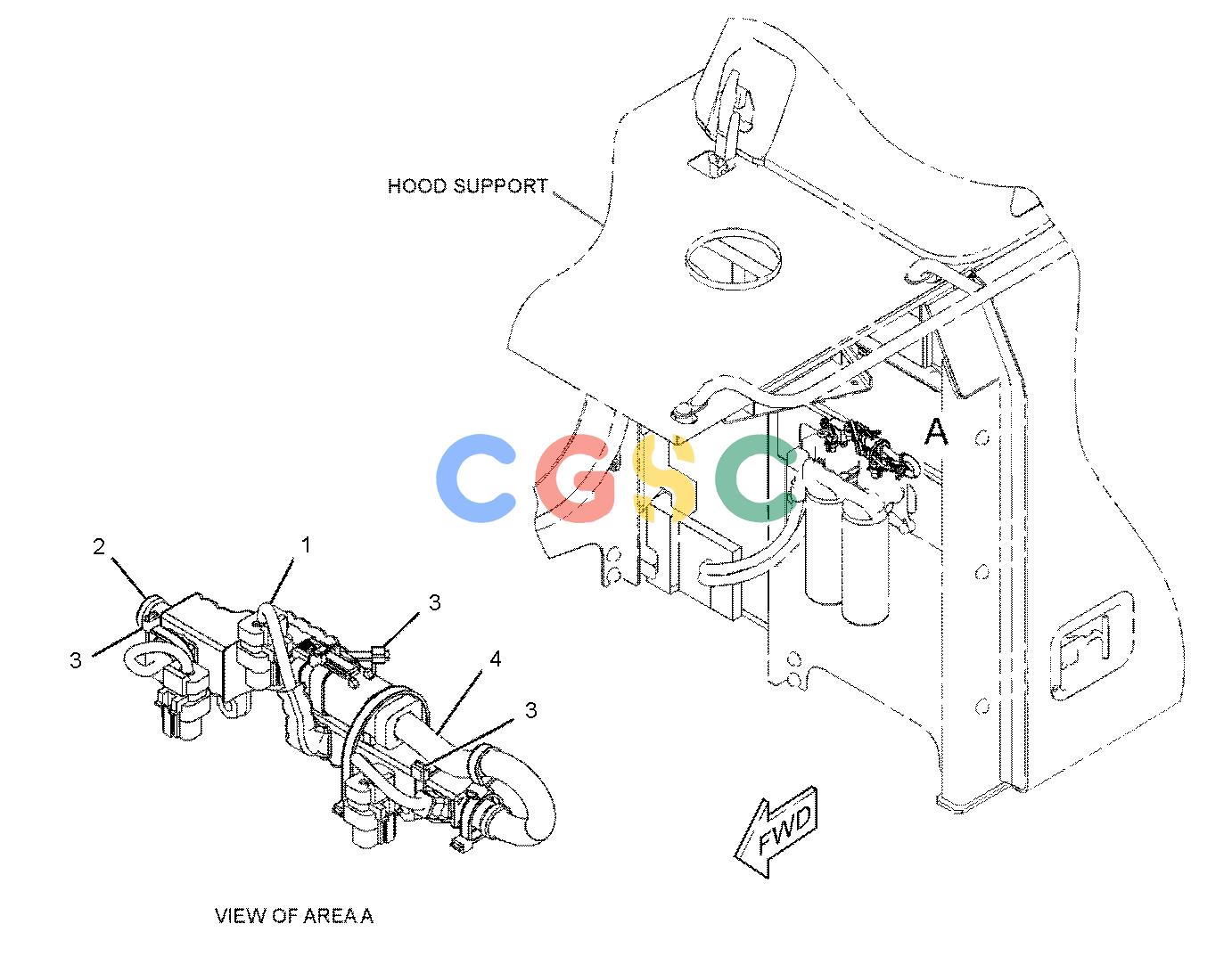

卡特零件查询（725C） 367-2378: WIRING GP-SENSOR
广数供应链运营团队, 14 02月, 2025，浏览：
584 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 349-1503 | [1] | HARNESS AS-ENGINE | |
| | 3S-2093 | [3] | STRAP-CABLE | |
| | | [1] | HARNESS AS-SENSOR |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| | 9X-3402 | [8] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [8] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-3401 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [5] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 230-4011 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 230-5011 | [1] | RECEPTACLE AS-CONNECTOR(6-PIN) | |
| | 281-8804 | [2] | PLUG AS-CONNECTOR(3-PIN) | |
| | | | (EACH INCLUDES) |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 317-1204E | | SLEEVE(21-CM) | |
| | 318-3823 | [1] | PLUG AS | |
| | 8T-8737 | [6] | PLUG-SEAL | |
| | 230-5010 | [1] | PLUG AS-CONNECTOR(6-PIN) | |
| 2. | | [1] | COVER |
| 3. | 8L-8413 | [3] | STRAP-CABLE(WHITE) | |
| 4. | | [1] | COVER |
| | E | | ORDER BY THE CENTIMETER |
