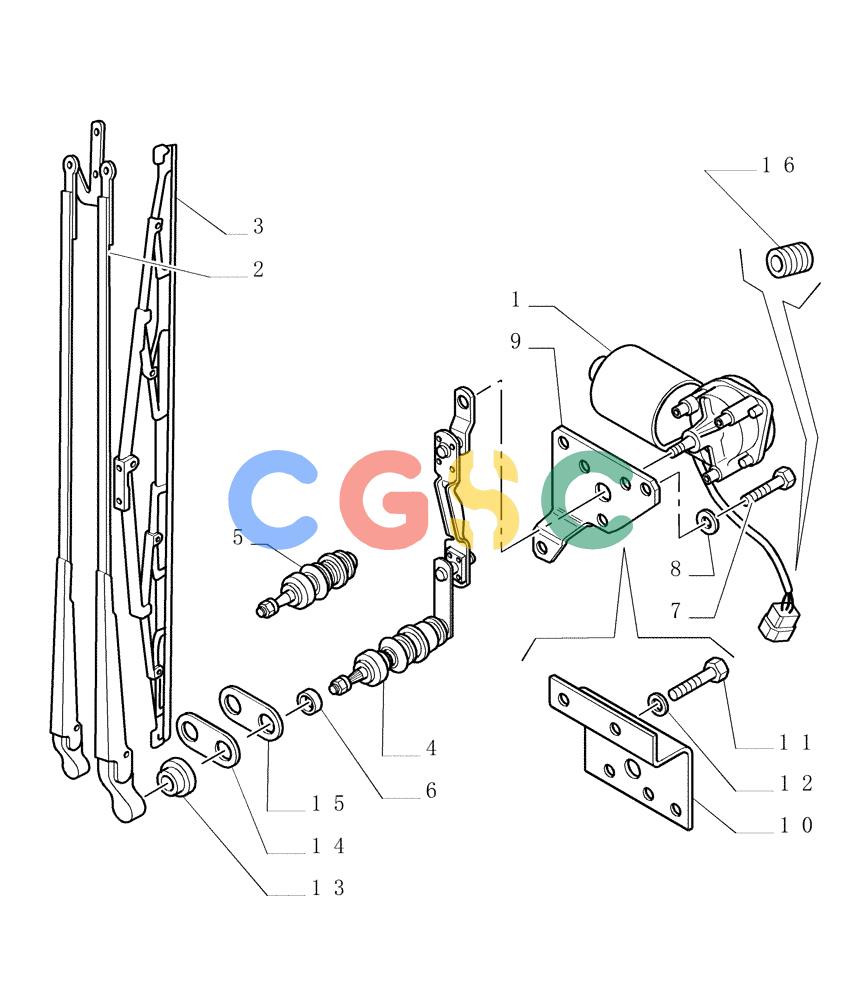

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.652[10]) - ROPS CAB - DOOR - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
629 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067672 | [1] | WIPER MOTOR | LEC24V |
| 2. | 76067148 | [2] | WIPER ARM | LEC |
| 3. | 76067149 | [2] | WIPER BLADE | LEC |
| 4. | 76067150 | [2] | LINKAGE | LEC- ASSY |
| 5. | 76067151 | [2] | PIN | LEC |
| 6. | 76067146 | [6] | SPACER | LEC |
| 7. | 10902221 | [3] | BOLT,Hex, M6 x 16mm, CL 8.8 | BHB Superseded by part number: |
| 8. | 14496431 | [3] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 9. | 79095755 | [1] | BRACKET | LEC- RIGHT |
| 10. | 79101655 | [1] | BRACKET | LEC- LEFT |
| 11. | 16043231 | [3] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 12. | 14496531 | [3] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 13. | 76067174 | [2] | SPACER | LEC |
| 14. | 76067175 | [2] | SEAL | LEC |
| 15. | 76067176 | [2] | PLATE | LEC |
| 16. | 76045509 | [4] | GROMMET | LEC |
