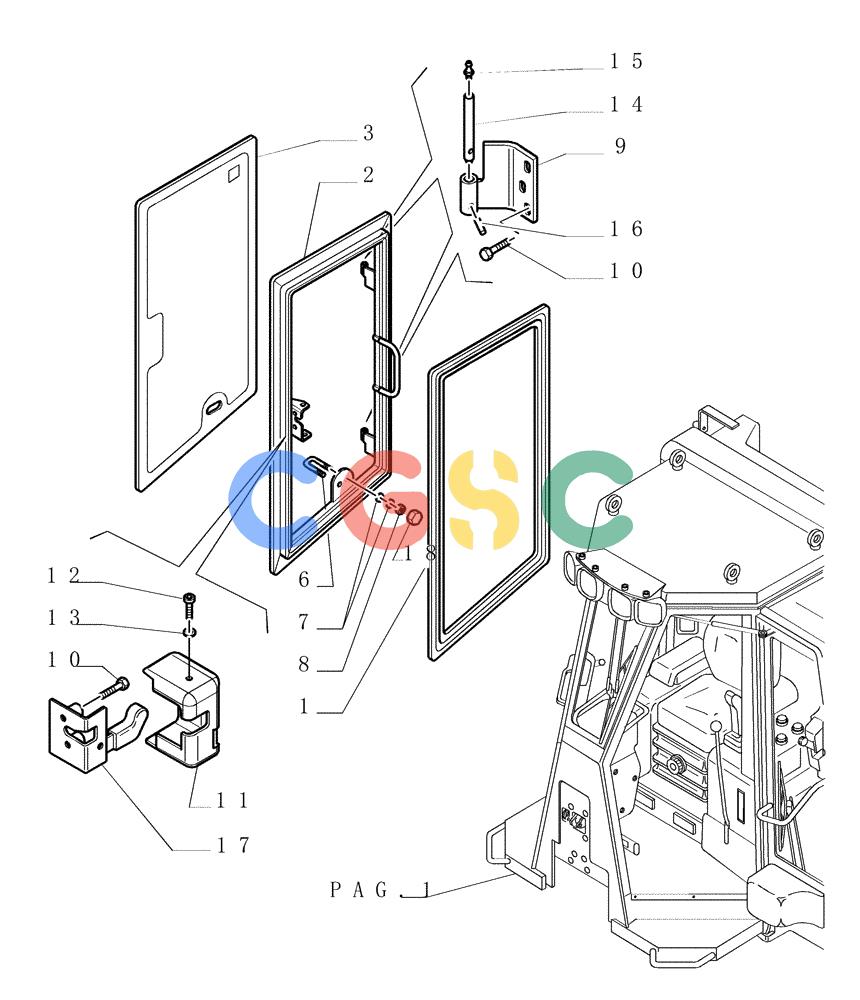

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.652[11]) - ROPS CAB - WINDOW - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
340 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067136 | [1] | SEAL | LEC- RIGHT |
| 1. | 76067135 | [1] | SEAL | LEC- LEFT |
| 2. | 76067444 | [1] | FRAME | LEC- LEFT |
| 2. | 76067445 | [1] | FRAME | LEC- RIGHT |
| 3. | 76067442 | [1] | GLASS | LEC- LEFT |
| 3. | 76067443 | [1] | GLASS | LEC- RIGHT |
| 6. | 76067733 | [1] | U-BOLT | LEC |
| 7. | 14496631 | [8] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 8. | 11701714 | [8] | NUT | LEC10 Superseded by part number: 17038131 |
| 9. | 76067447 | [2] | HINGE | LEC- RIGHT |
| 9. | 76067446 | [2] | HINGE | LEC- LEFT |
| 10. | 16046631 | [12] | SCREW,M8 x 25mm | NH8X25 mm Superseded by part number: 16043624 |
| 11. | 76067451 | [1] | GUARD | LEC- RIGHT |
| 11. | 76067450 | [1] | GUARD | LEC- LEFT |
| 12. | 79105220 | [4] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 13. | 76067309 | [4] | CUP WASHER | LEC |
| 14. | 71483900 | [4] | PIN | LEC |
| 15. | 76043510 | [4] | LUBE NIPPLE,M6 x 1 x 15 L | LEC Superseded by part number: 1491009 |
| 16. | 14161970 | [4] | LOCK PIN,M3 x 20, Slotted | LEC Superseded by part number: 80300865 |
| 17. | 76067470 | [1] | LOCK | LEC- RIGHT |
| 17. | 76067469 | [1] | LOCK | LEC- LEFT |
| 18. | 71480911 | [8] | DUST CAP | LEC |
