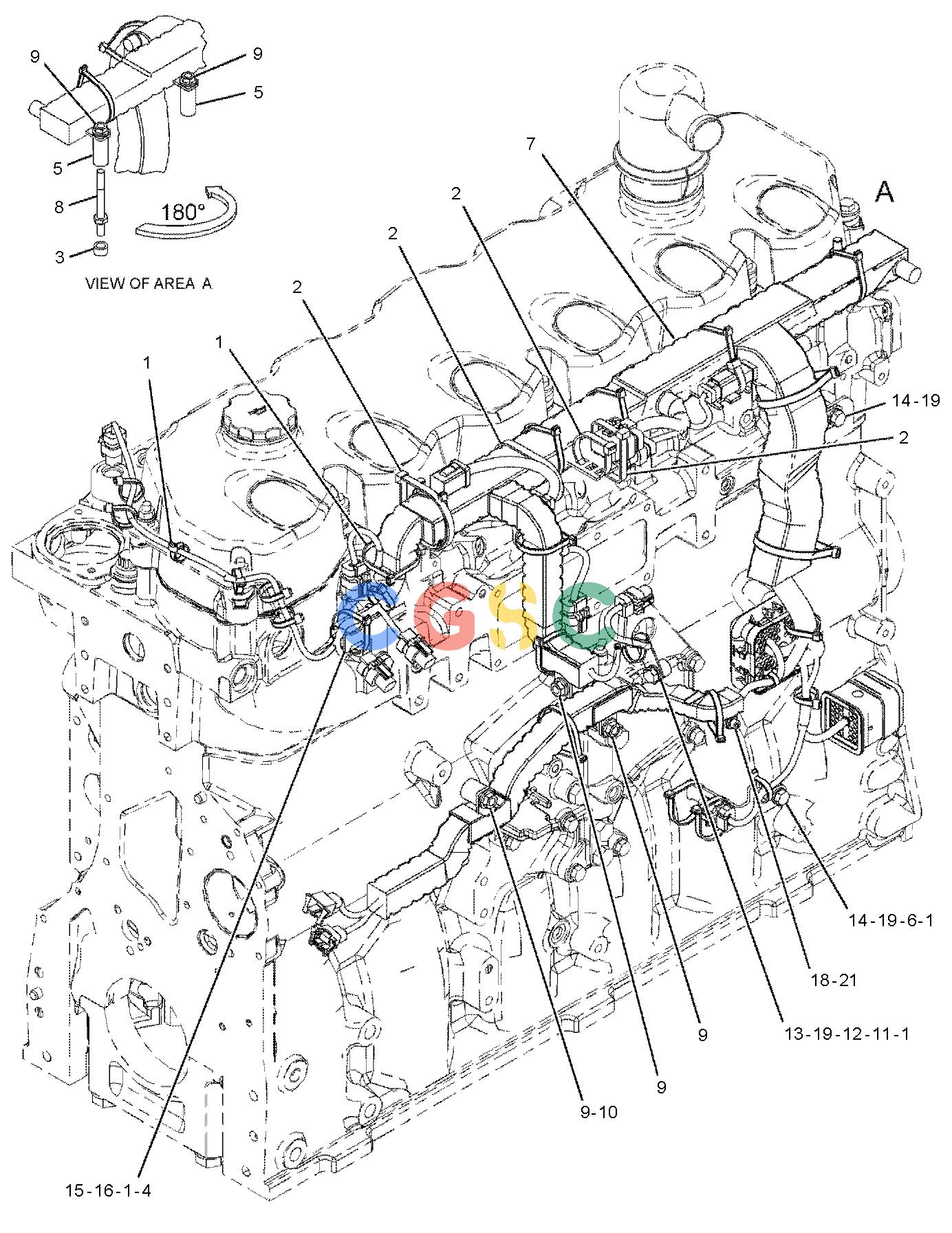

卡特零件查询（725C） 354-5336: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
1006 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [13] | STRAP-CABLE | |
| 2. | 7K-1181 | [4] | STRAP-CABLE | |
| 3. | 054-4984 | [2] | SPACER(10X15X8.5-MM THK) | |
| 4. | 224-9222 | [1] | BRACKET | |
| 5. | 307-1674 | [5] | SPACER(9X16X36-MM THK) | |
| 6. | 349-7801 | [1] | BRACKET | |
| 7. | 367-5453Y | [1] | HARNESS AS-ENGINE | |
| 8. | 131-0353M | [2] | STUD(M8X1.25X82.75-MM) | |
| 9. | 178-3336M | [8] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 10. | 9N-4685 | [1] | BLOCK | |
| 11. | 4P-5918 | [1] | CLIP | |
| 12. | 5G-4313 | [1] | SPACER(10.34X15.88X12-MM THK) | |
| 13. | 6V-2317M | [1] | BOLT(M8X1.25X30-MM) | |
| 14. | 6V-5217M | [2] | BOLT(M8X1.25X20-MM) | |
| 15. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 16. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 18. | 8C-6364M | [1] | BOLT-SOCKET HEAD(M5X0.8X14-MM) | |
| 19. | 9M-1974 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 21. | 9X-8267 | [1] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
