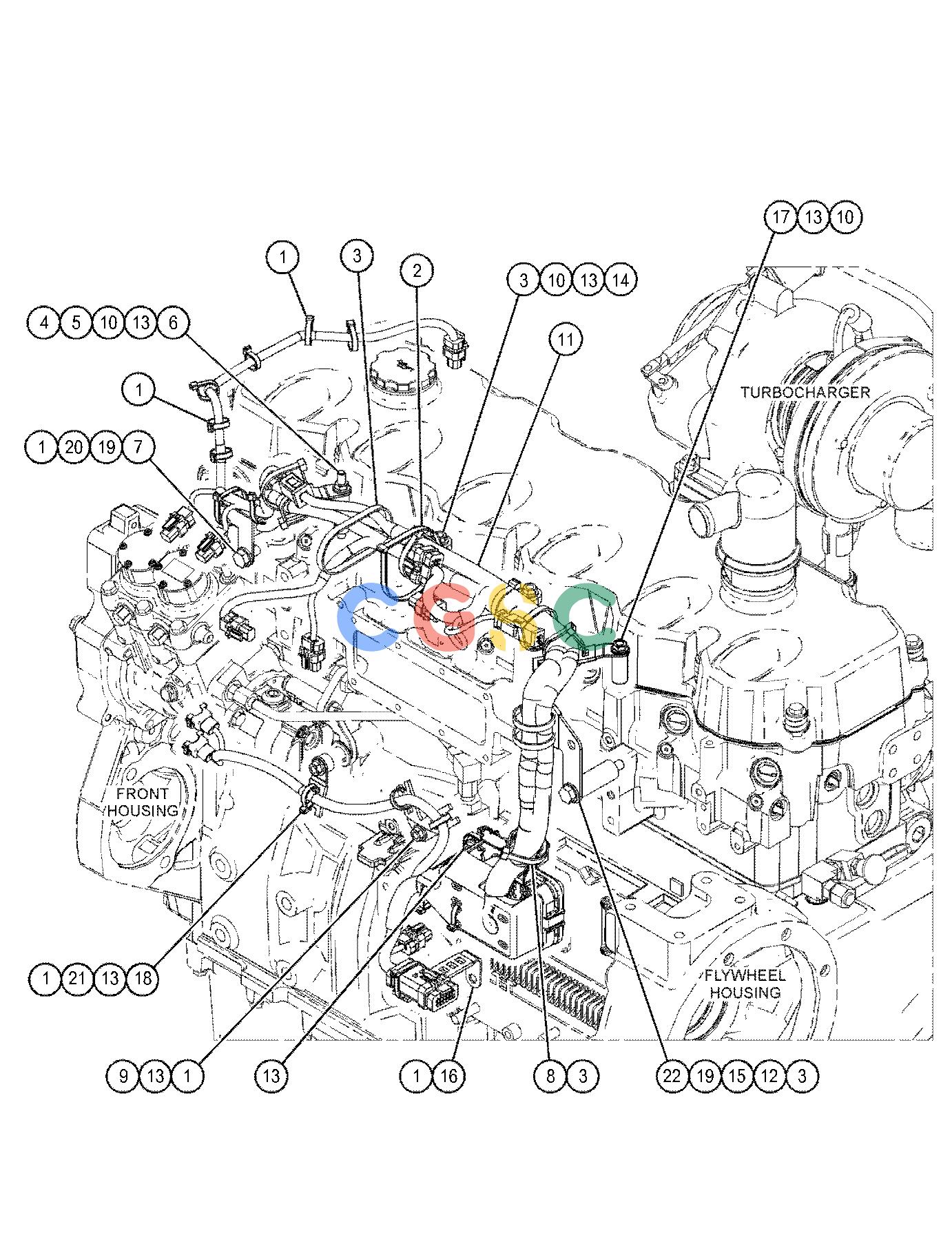

卡特零件查询（725C） 439-3951: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
175 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [12] | STRAP-CABLE | |
| 2. | 6K-0806 | [1] | STRAP-CABLE | |
| 3. | 7K-1181 | [11] | STRAP-CABLE | |
| 4. | 054-4984 | [1] | SPACER(10X15X8.5-MM THK) | |
| 5. | 131-0353M | [1] | STUD(M8X1.25X82.75-MM) | |
| 6. | 178-1780 | [1] | CLIP | |
| 7. | 224-9222 | [1] | BRACKET | |
| 8. | 244-3168 | [1] | BRACKET AS | |
| | 232-1693M | [1] | BOLT-FLANGE HEAD(M6X1X35-MM) | |
| 9. | 271-5584 | [1] | CLIP | |
| 10. | 307-1674 | [4] | SPACER(9X16X36-MM THK) | |
| 11. | 434-3254Y | [1] | HARNESS AS-SENSOR | |
| 12. | 140-0174M | [1] | BOLT(M10X1.5X75-MM) | |
| 13. | 178-3336M | [7] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 14. | 204-8000 | [2] | MOUNTING-CABLE TIE | |
| 15. | 2V-2209 | [1] | SPACER(13.9X21.3X55.6-MM THK) | |
| 16. | 309-4314 | [1] | CLIP(LADDER) | |
| 17. | 352-3964C | [1] | CLIP(LADDER) | |
| 18. | 4P-7581 | [1] | CLIP(LADDER) | |
| 19. | 6V-5839 | [2] | WASHER(11X21X2.5-MM THK) | |
| 20. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 21. | 7W-3447 | [1] | SPACER(10.2X19.05X10.2-MM THK) | |
| 22. | 347-7104 | [1] | BRACKET AS | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
