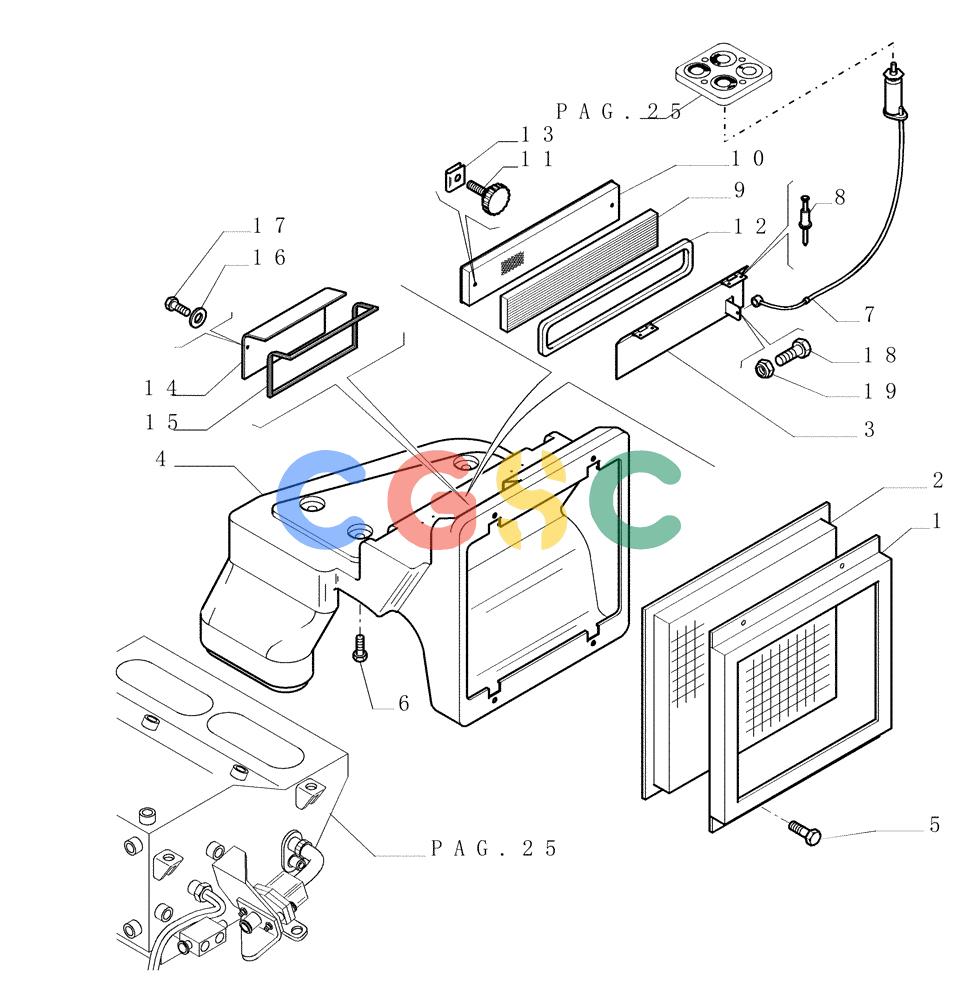

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.652[27]) - ROPS CAB - HEATER - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
126 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067304 | [1] | BEZEL | LEC |
| 2. | 76067303 | [1] | CAB FILTER | LEC |
| 3. | 76067282 | [1] | PANEL | LEC |
| 4. | 76067256 | [1] | AIR DUCT | LEC- SUCTION |
| 5. | 76067423 | [4] | CLIP | LEC- FIXING |
| 6. | 16044031 | [3] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 7. | 76067307 | [1] | FLEXIBLE CONTROL | LEC |
| 8. | 71485253 | [4] | RIVET | LEC |
| 9. | 76067299 | [1] | CAB FILTER | LEC |
| 10. | 76067300 | [1] | GRILLE | LEC- SUCTION |
| 11. | 4227213 | [2] | | |
| 12. | 76067301 | [1] | SEAL | LEC |
| 13. | 76047274 | [2] | NUT,M6 x 1 | LEC |
| 14. | 76067455 | [1] | PLATE | LEC |
| 15. | 76067457 | [1] | SEAL | LEC |
| 16. | 14496331 | [2] | WASHER,M5.3 x 10 x 1 Thk | LEC Superseded by part number: 14496321 |
| 17. | 76043518 | [2] | SCREW,M4.2 x 13mm | LEC |
| 18. | 13272217 | [1] | SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd | LEC Superseded by part number: 13272214 |
| 19. | 86625075 | [1] | NUT,M4 x 0.7, Cl 8 | FAR |
