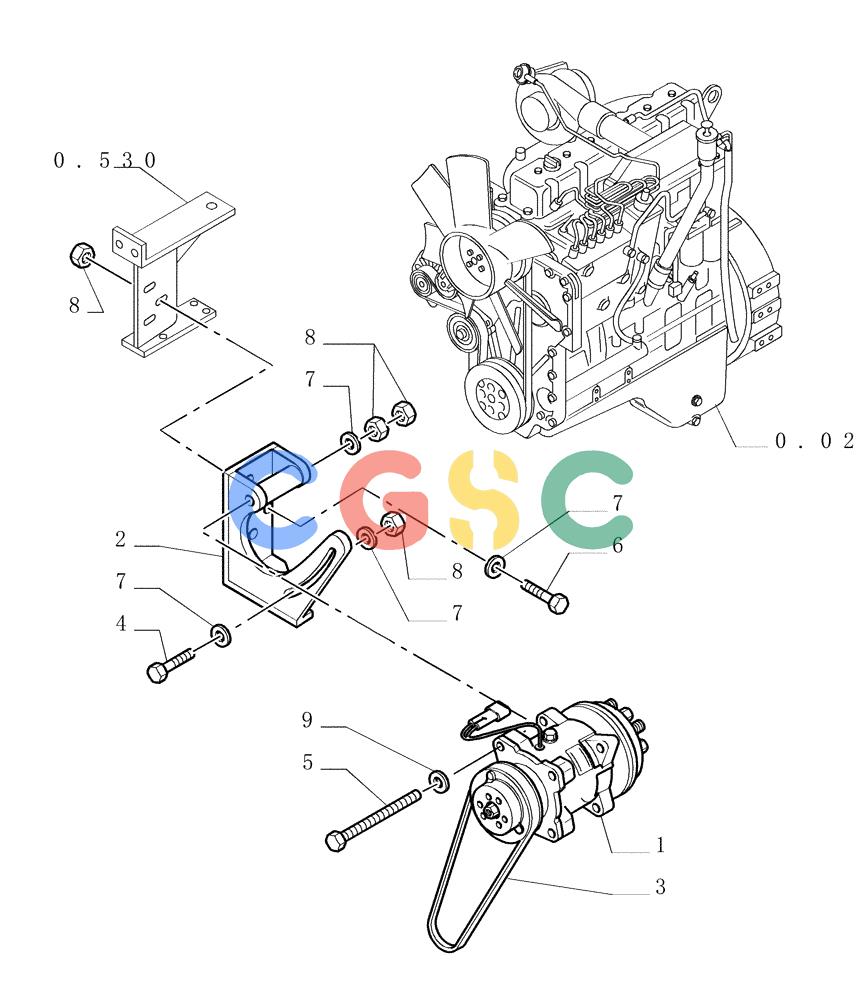

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.665[01]) - AIR CONDITIONING - COMPRESSOR - OPTIONAL CODE 76066319 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
726 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | COMPRESSOR | [1] | AIR COMPRESSOR | NH Superseded by part number: 76047005 |
| . . | 76047005R | [1] | REMAN-COMPRESSOR | LECDC180LGP (2/01-), DC180LT (5/00-), DC180PS (11/00-), Reman for New P/N COMPRESSOR |
| . . | 76047005C | [1] | CORE-COMPRESSOR | LECReturn Number |
| 2. | 76044830 | [1] | SUPPORT | LEC- COMPRESSOR |
| 3. | 76054538 | [1] | BELT | LEC |
| 4. | 11107231 | [1] | SCREW,Hex, M10 x 50mm, Cl 10.9 | LEC Superseded by part number: 75205092, 43249 |
| 5. | 11108831 | [1] | BOLT,Hex, M10 x 130mm, Cl 10.9 | LEC Superseded by part number: 84577051 |
| 6. | 11106031 | [3] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 7. | 14496631 | [6] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 8. | 12577221 | [6] | LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND | LEC |
| 9. | 12626231 | [1] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
