纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.665[03]) - AIR CONDITIONING - PIPING - OPTIONAL CODE 76066319 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
755 次

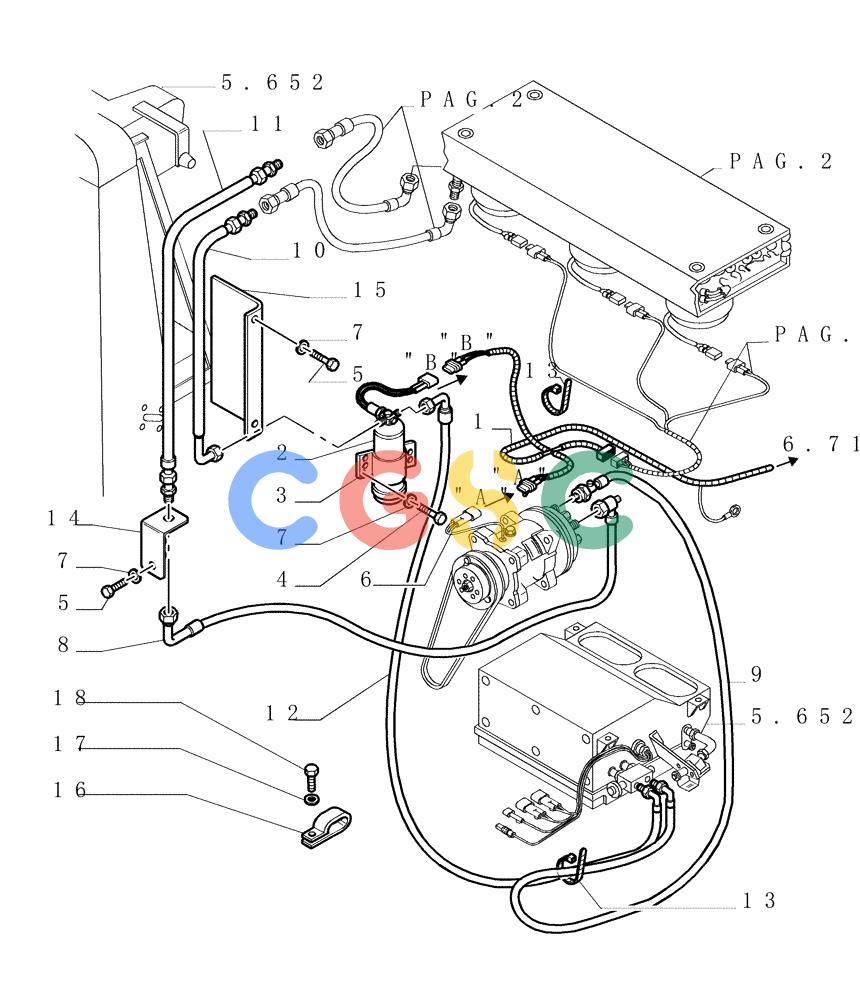

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76048018 | [1] | ELECTRIC CABLE | LEC- AIR CONDITIONING |
| 2. | 76035687 | [1] | RECEIVER-DRIER | LEC- ASSY SEE PAG.6 |
| 3. | 79092065 | [1] | BRACKET | LEC |
| 4. | 16043631 | [2] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 5. | 16043431 | [3] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 6. | 76066222 | [1] | WIRE HARNESS | LEC |
| 7. | 14496531 | [5] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 8. | 76052510 | [1] | HYDRAULIC HOSE | LEC |
| 9. | 76020512 | [1] | HYDRAULIC HOSE,12.7mm ID x 2020mm L | LECIncludes 128485A1 O-Ring for 1"-14 end & 76049689 O-Ring |
| 10. | 76067368 | [1] | RIGID TUBE | LEC |
| 11. | 76067369 | [1] | RIGID TUBE | LEC |
| 12. | 76067370 | [1] | HOSE | LECIncludes (2) 128483A1 O-Rings |
| 13. | 4982514 | [10] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 14. | 76067371 | [1] | BRACKET | LEC |
| 15. | 76067382 | [1] | SHIELD | LEC |
| 16. | 10115701 | [3] | CLAMP,12mm, Coat, P Type | LEC2 - 12 Superseded by part number: 10115705 |
| 17. | 13276011 | [3] | SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8 | LEC Superseded by part number: 86511828 |
| 18. | 14496431 | [1] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
