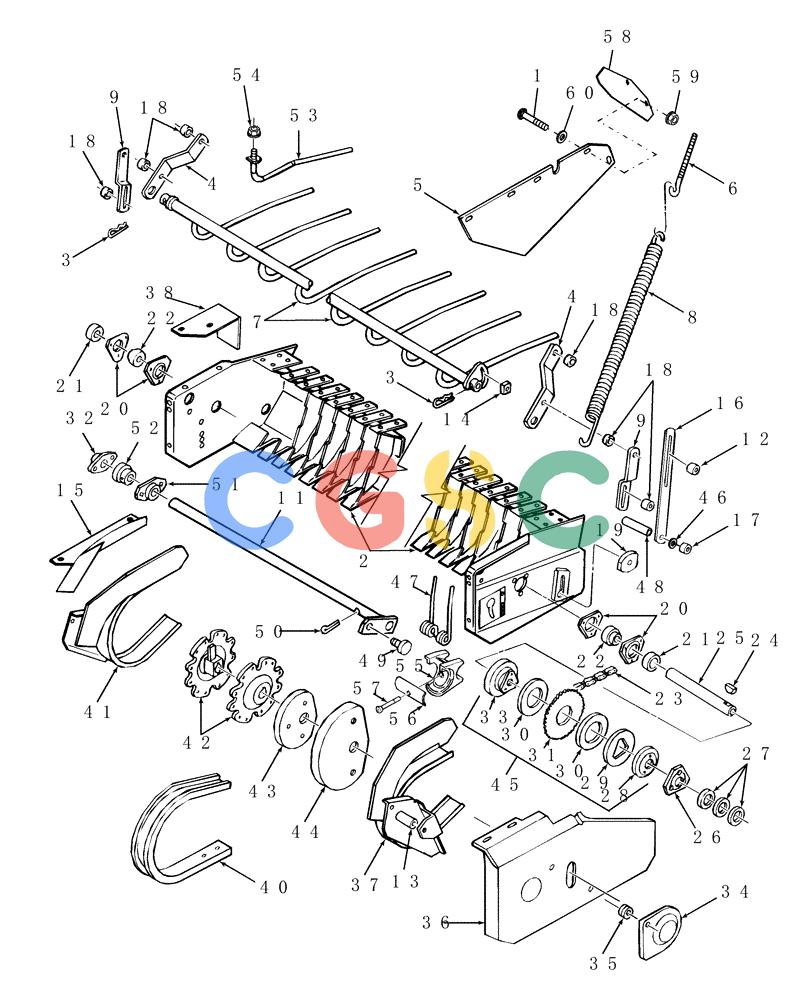

| 1. |
811-8020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 2. |
86637195
|
[1] |
FRAME ASSY
|
NH
Superseded by part number: 87041294, 87041202
|
| . . |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| . . |
412093
|
[12] |
SELF-TAP SCREW
|
NH
M6 x 1 x 12
|
| . . |
614-12040
|
[2] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| . . |
614-8016
|
[4] |
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 16043224
|
| . . |
492-11031
|
[3] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| . . |
495-21038
|
[3] |
WASHER,5/16"
|
CAS
Superseded by part number: 80664, 72187263
|
| 3. |
86000109
|
[2] |
COTTER PIN
|
NH
1/8" x 3-1/4"
|
| 4. |
86636887
|
[2] |
BAR
|
NH
Superseded by part number: 87021854
|
| . . |
9827956
|
[4] |
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
|
NH
|
| . . |
814-10050
|
[2] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| . . |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| . . |
832-46410
|
[2] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 5. |
86515944
|
[2] |
SIDE PANEL
|
NH
|
| . . |
80577826
|
[8] |
WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk
|
NH
SAE, 5/16"
|
| . . |
832-46408
|
[8] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 6. |
86628567
|
[2] |
EYEBOLT
|
NH
G2, 3/8"-16 x 8-3/4"
|
| 7. |
86636997
|
[1] |
GUARD ASSY.
|
NH
|
| . . |
86636750
|
[12] |
TINE
|
NH
Windguard
|
| . . |
811-10030
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 8. |
86553570
|
[2] |
SPRING
|
NH
Extension Superseded by part number: 9621742
|
| 9. |
86636888
|
[2] |
CONNECTING LINK
|
NH
|
| . . |
213404
|
[4] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
3/16" x 13/32" ID x 1-1/2" OD
|
| . . |
814-10040
|
[2] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120112
|
| . . |
825-51410
|
[4] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| . . |
495-21056
|
[2] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| 11. |
86637197
|
[6] |
PIPE ASSY.
|
NH
Tooth Superseded by part number: 87040501
|
| . . |
814-10060
|
[6] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 120070
|
| . . |
9618968
|
[6] |
WASHER,0.41" ID x 0.78" OD x 0.1" Thk
|
NH
|
| 12. |
748303
|
[1] |
SPACER
|
NH
|
| . . |
614-10030
|
[1] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| . . |
58225
|
[1] |
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
|
NH
Special, 1-1/4" OD Superseded by part number: 87654824
|
| 13. |
86636721
|
[1] |
SPACER
|
NH
|
| 14. |
44612
|
[2] |
SPACER
|
NH
Washer
|
| 15. |
86636752
|
[1] |
SHIELD
|
NH
|
| 16. |
86636630
|
[1] |
CONNECTING LINK
|
NH
|
| . . |
232-4146
|
[2] |
NUT,3/8"-16, GC
|
CAS
Superseded by part number: 88902
|
| . . |
433-672
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5
|
CAS
Superseded by part number: 280825
|
| 17. |
646056
|
[1] |
SPACER,13/32” ID x .750” OD x .338” Tk.
|
NH
|
| 18. |
698748
|
[6] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Spacer Superseded by part number: 626698
|
| 19. |
86584050
|
[1] |
IDLER
|
NH
Plastic Superseded by part number: 87030996
|
| . . |
811-12080
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8
|
CAS
Superseded by part number: 300662
|
| . . |
829-1412
|
[1] |
NUT,M12, Cl 10.9
|
CAS
Superseded by part number: 337475
|
| 20. |
662649R1
|
[4] |
RETAINER
|
IH
Superseded by part number: 84320112
|
| . . |
905-10020
|
[6] |
BOLT,Hex Flg, M10 x 20mm
|
CAS
Superseded by part number: 274249
|
| 21. |
557115R11
|
[2] |
COLLAR
|
IH
Superseded by part number: 45876
|
| 22. |
455959R92
|
[2] |
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
|
CAS
Superseded by part number: 47577195
|
| 23. |
9828289
|
[1] |
CHAIN,A2050, 48 Links x 31.75mm = 1524mm
|
NH
50 Pitches, Pickup Drive, Includes: (1) 25193 Coupler Link, Cotter Pin Type
|
| 24. |
126-32
|
[1] |
WOODRUFF KEY,#21, 1/4" x 1 1/4"
|
CAS
Superseded by part number: 84361
|
| 25. |
86512181
|
[1] |
SHAFT
|
NH
Pickup
|
| . . |
432-1224
|
[1] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 26. |
86636168
|
[1] |
BRACKET
|
NH
|
| 27. |
673
|
[6] |
WASHER,29mm ID x 41mm OD x 1.52mm Thk
|
NH
|
| 28. |
121092
|
[1] |
BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk
|
NH
|
| 29. |
86627129
|
[1] |
CLUTCH PLATE
|
NH
|
| 30. |
127434
|
[2] |
DISC,77.7mm ID x 146mm OD x 3.56mm Thk
|
NH
Friction
|
| 31. |
86637250
|
[1] |
DRIVEN SPROCKET
|
NH
48T, Includes: 49686 Bushing
|
| 31. |
86536130
|
[1] |
DRIVEN SPROCKET
|
NH
44T, Includes: 49686 Bushing
|
| 32. |
638025
|
[6] |
FLANGE
|
NH
|
| 33. |
86635141
|
[1] |
HUB
|
NH
Clutch
|
| . . |
413-620
|
[3] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187207, 88011
|
| 34. |
86619617
|
[1] |
SHIELD
|
NH
|
| . . |
614-8030
|
[1] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43128
|
| . . |
495-11034
|
[1] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| 35. |
29840
|
[1] |
SPRING,Compression, 11.91mm OD x 25.4mm L
|
NH
|
| 36. |
86618401
|
[1] |
SHIELD
|
NH
Pickup
|
| 37. |
86637155
|
[1] |
PLATE ASSY.
|
NH
Transition, LH
|
| . . |
614-10020
|
[2] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 38. |
86637163
|
[1] |
SHIELD
|
NH
|
| 40. |
86637150
|
[23] |
GUARD
|
NH
Pickup, 46.7"
|
| 41. |
86637153
|
[1] |
PLATE ASSY.
|
NH
Transition, RH
|
| 42. |
86635065
|
[3] |
DISC
|
NH
Finger
|
| . . |
120071
|
[1] |
BOLT,Hex, M10 x 65, 8.8
|
NH
|
| . . |
88682
|
[24] |
CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5
|
NH
|
| . . |
231-5146
|
[24] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| . . |
836-80110
|
[3] |
WOODRUFF KEY,M8 x8 11 x 27.35
|
CAS
Superseded by part number: 87038548
|
| 43. |
86636873
|
[1] |
CAM
|
NH
Inner
|
| . . |
905-10025
|
[3] |
BOLT,Hex Flg, M10 x 25mm
|
CAS
Superseded by part number: 274251
|
| 44. |
86636761
|
[1] |
CAM
|
NH
Outer
|
| 45. |
86635138
|
[1] |
SLIP CLUTCH
|
NH
Includes: Refs. 28 - 31 & 33
|
| 47. |
87394242
|
[72] |
TORSION SPRING,Coiled, 2 Prong, 186.5mm L
|
NH
Pickup, Curved, Premium, Standard
|
| 47. |
87607074
|
[72] |
TINE
|
NH
Pickup, Curved, Economy, Optional
|
| 49. |
84350126
|
[6] |
CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L
|
NH
|
| 50. |
136521
|
[6] |
COTTER PIN,5.7mm OD x 44.45mm L
|
NH
1/4" x 1-1/2"
|
| 51. |
54695
|
[6] |
BEARING HOUSING
|
NH
|
| 52. |
54770
|
[6] |
BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm
|
NH
Superseded by part number: 84330047
|
| 53. |
86636902
|
[11] |
REEL TINE
|
NH
|
| 55. |
86627654
|
[72] |
SPACER
|
NH
Tooth Superseded by part number: 84427925
|
| 56. |
134921
|
[72] |
BRACKET
|
NH
Pickup Tooth Superseded by part number: 87643386
|
| 57. |
130891
|
[72] |
BOLT,Tine, 5/16" - 18 x 2"
|
NH
Special, Pickup Finger Superseded by part number: 87642989
|
| . . |
280736
|
[72] |
NUT,5/16"-18, GC
|
NH
|
| . . |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 58. |
86619299
|
[2] |
FILLER
|
NH
|
