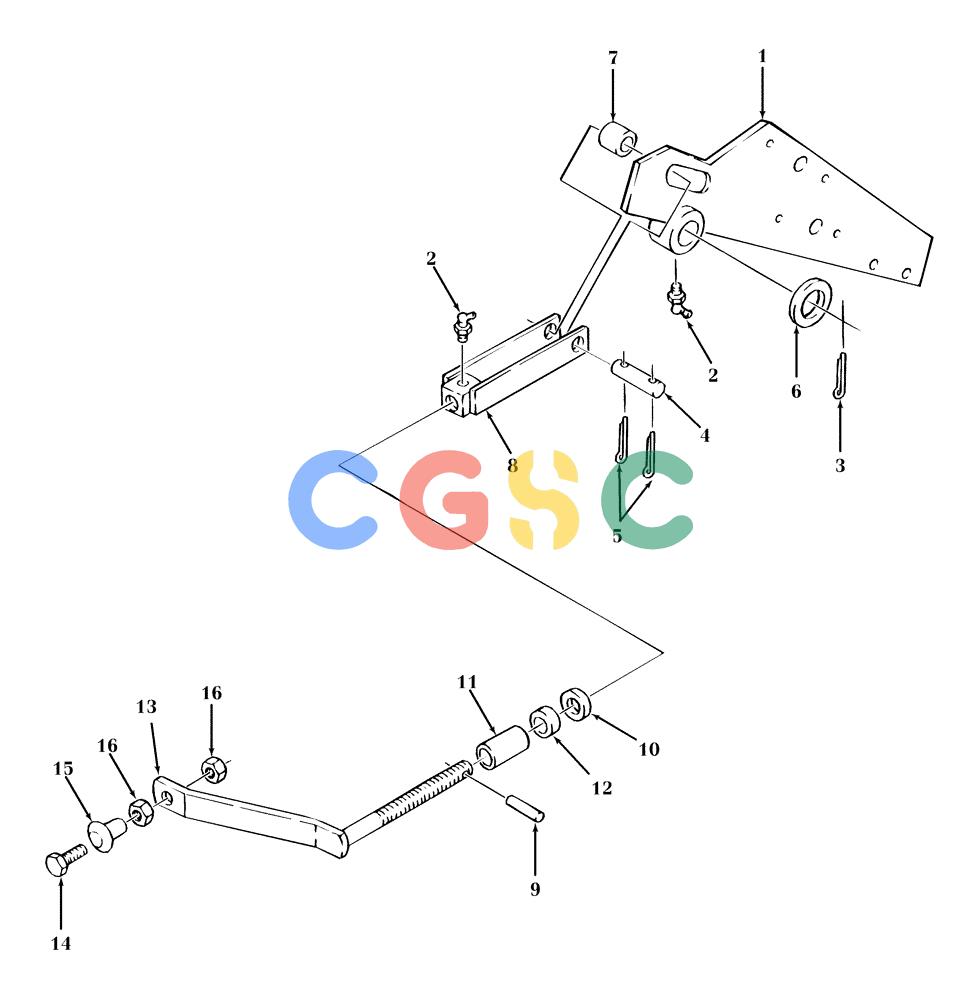

凯斯零件查询(RBX561) - CASE IH ROUND BALER (12/01-8/02) (009) - PICKUP LIFT, MANUAL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
971 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86637293
|
[1] |
ARM
|
NH
|
| 2. |
219-90
|
[2] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
Superseded by part number: 87569
|
| 3. |
432-1232
|
[1] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Superseded by part number: 87400
|
| 4. |
86634564
|
[1] |
PIN
|
NH
|
| 5. |
432-1220
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Superseded by part number: 87398
|
| 6. |
101406
|
[1] |
SPACER
|
NH
|
| 7. |
86636631
|
[1] |
HUB
|
NH
|
| 8. |
86636762
|
[1] |
ARM
|
NH
|
| 9. |
280315
|
[1] |
GROOVED PIN,4.76mm OD x 25.4mm L
|
NH
|
| 10. |
56867
|
[1] |
WASHER
|
NH
Superseded by part number: 578092
|
| 11. |
86636794
|
[1] |
SPACER
|
NH
|
| 12. |
9801922
|
[1] |
THRUST BEARING,19.25mm ID x 35.97mm OD x 11.76mm W
|
NH
|
| 13. |
86637165
|
[1] |
CRANK
|
NH
|
| 14. |
413-644
|
[1] |
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
|
CAS
Superseded by part number: 88444
|
| 15. |
33781
|
[1] |
KNOB
|
NH
|
| 16. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
