纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.756[01]) - HYDRAULIC DIAGNOSTIC SYSTEM - VERSION (01) - OPTIONAL CODE 76066044 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
573 次

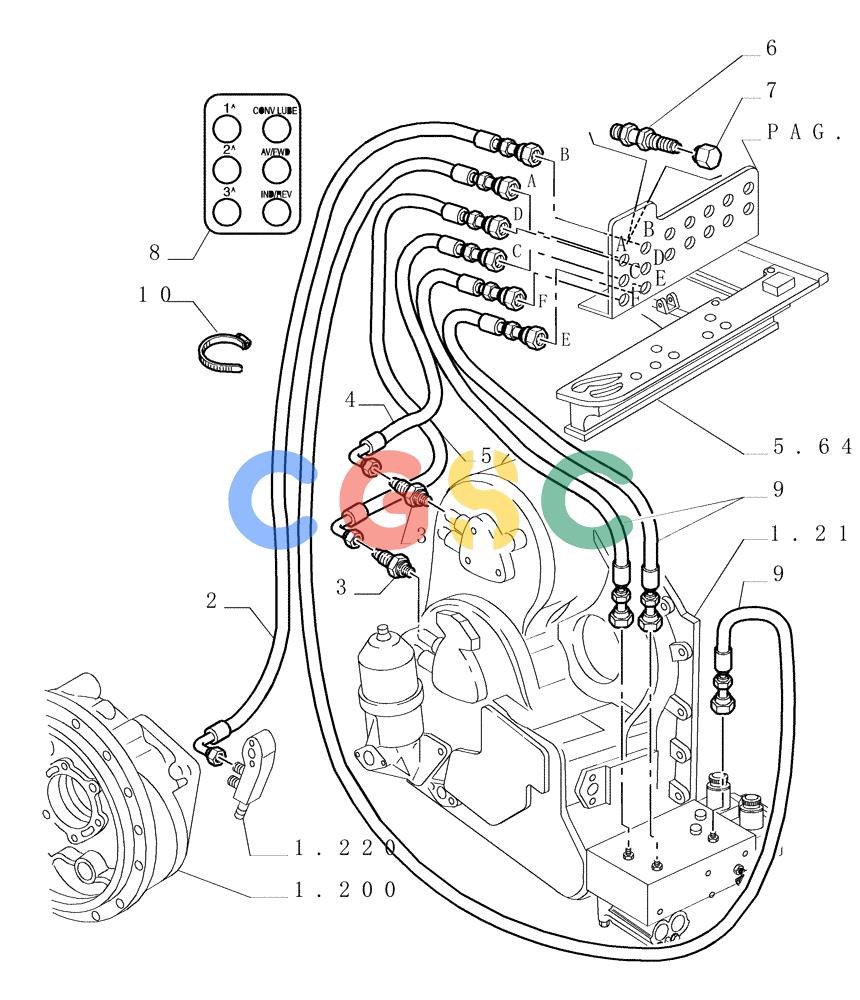

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76066108 | [3] | HYDRAULIC HOSE | LEC |
| 2. | 76066109 | [1] | HYDRAULIC HOSE | LEC |
| 3. | 71311820 | [2] | FITTING,M12 x 1.5 x 7/16"-20 | LEC |
| 4. | 76066110 | [1] | HYDRAULIC HOSE | LEC |
| 5. | 76066111 | [1] | HYDRAULIC HOSE | LEC |
| 6. | 79054236 | [6] | HYD CONNECTOR | LEC6 Superseded by part number: 70928916 |
| 7. | 79054460 | [6] | PLUG | LEC |
| 8. | 79096873 | [1] | DECAL | LEC |
| 10. | 4982514 | [1] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
