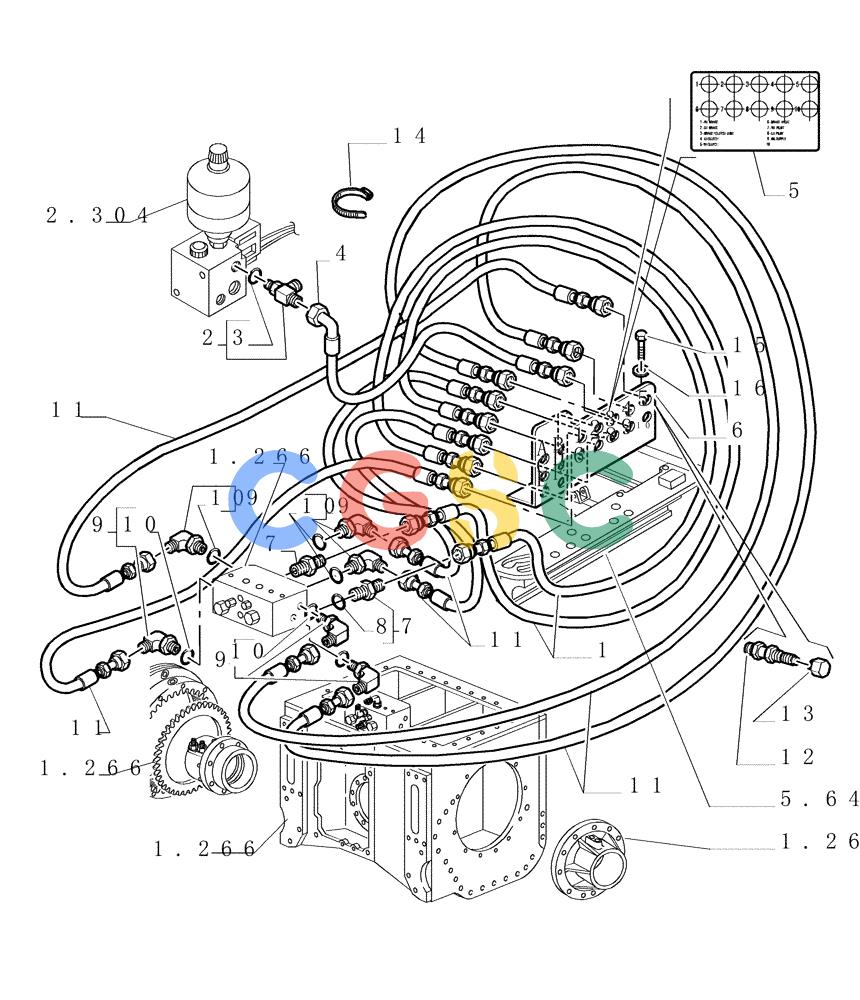

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.756[02]) - HYDRAULIC DIAGNOSTIC SYSTEM - VERSION (01) - OPTIONAL CODE 76066044 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
780 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76066151 | [2] | FLEXIBLE HOSE | LEC |
| 2. | 79067003 | [1] | TEE | LEC10 |
| 4. | 76066107 | [1] | FLEXIBLE HOSE | LEC |
| 5. | 76066113 | [1] | DECAL | LEC |
| 6. | 76066086 | [1] | PLATE | LEC |
| 7. | 79066938 | [2] | FITTING | LEC10 |
| 8. | 14437785 | [1] | O-RING,11.3mm ID x 2.4mm | LEC |
| 9. | 79067018 | [6] | 90 ELBOW | LEC10 a 90° |
| 11. | 76066105 | [6] | FLEXIBLE HOSE | LEC |
| 12. | 79054236 | [9] | HYD CONNECTOR | LEC Superseded by part number: 70928916 |
| 13. | 79054460 | [9] | PLUG | LEC |
| 14. | 4982514 | [1] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 15. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 16. | 12626231 | [2] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 3. | 14437885 | [1] | O-RING,13.30mm ID x 2.40mm | LEC |
