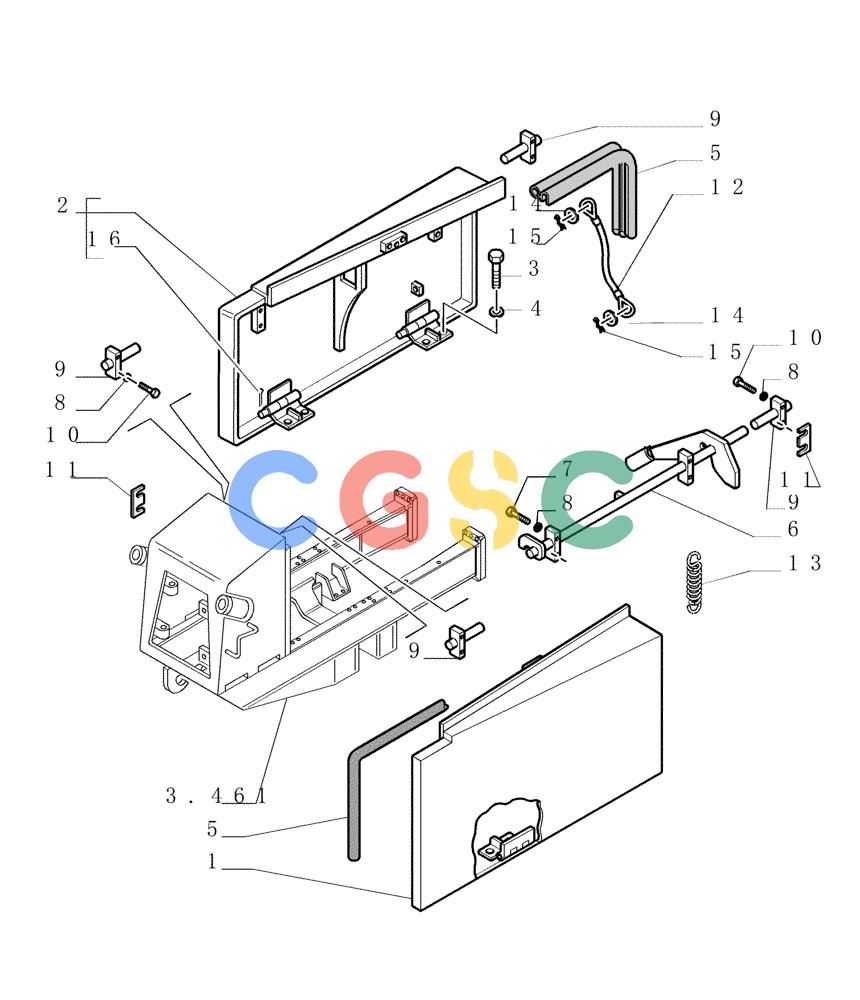

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (5.601[02]) - HOODS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
980 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046953 | [1] | SIDE PANEL | LECLOWER LEFT |
| 2. | 76046954 | [1] | SIDE PANEL | LECLOWER RIGHT |
| 3. | 11112431 | [8] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 4. | 12648531 | [8] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 5. | 76046935 | [2] | SEAL | LEC Superseded by part number: 93201838 |
| 6. | 76068066 | [1] | ROD | LEC- RIGHT |
| 6. | 76068065 | [1] | ROD | LEC- LEFT |
| 7. | 86625003 | [6] | BOLT,Hex, M8 x 50mm, Cl 10.9 | FAR |
| 8. | 12645031 | [16] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 9. | 76046961 | [4] | PIN | LEC14 |
| 10. | 16044031 | [8] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 11. | 76072262 | [1] | SHIM | LEC |
| 12. | 76069726 | [2] | CABLE,180mm L | LEC |
| 13. | 79093725 | [2] | SPRING | LEC |
| 14. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 15. | 10734301 | [4] | COTTER PIN,M2 x 18 | TTF Superseded by part number: 16854101 |
| 16. | 76054517 | [2] | COTTER PIN,5mm x 40mm L | LEC |
