纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (5.601[03]) - HOODS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
264 次

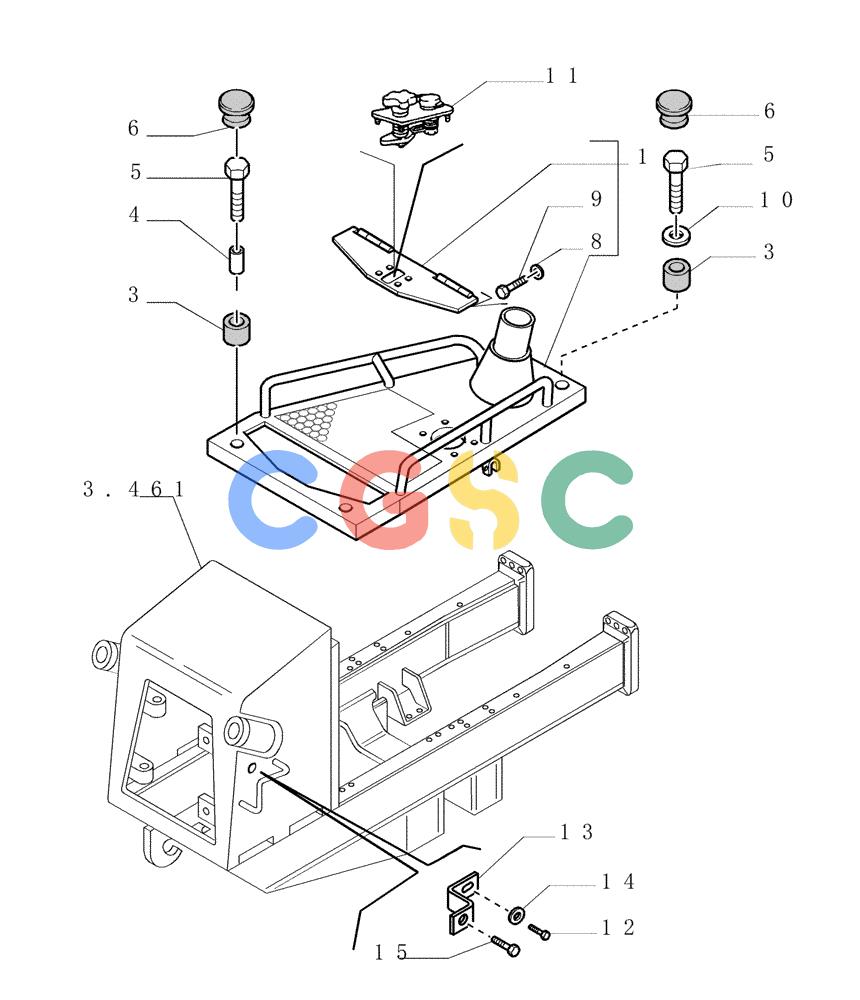

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76068445 | [1] | COWLING | LEC- ASSY Superseded by part number: 76078262 |
| 3. | 79109730 | [4] | RUBBER BUSHING | LEC |
| 4. | 79109731 | [2] | SPACER | LEC |
| 5. | 11112431 | [4] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 6. | 14508287 | [4] | PLUG | LECB-50 |
| 8. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 9. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 10. | 12648531 | [4] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 11. | 76066371 | [1] | LOCK | LEC- ASSY SEE PAG.6 |
| 12. | 9824642 | [2] | BOLT,M12 x 1.75 x 42.68mm, Cl 10.9 | BHB Superseded by part number: 626-12035 |
| 13. | 76069549 | [2] | BRACKET | LEC |
| 14. | 79005238 | [2] | WASHER,14.8mm ID x 32mm OD x 7mm Thk | LEC |
| 15. | 11113231 | [2] | BOLT,Hex, M12 x 50mm, Cl 10.9 | BHB Superseded by part number: 337476 |
