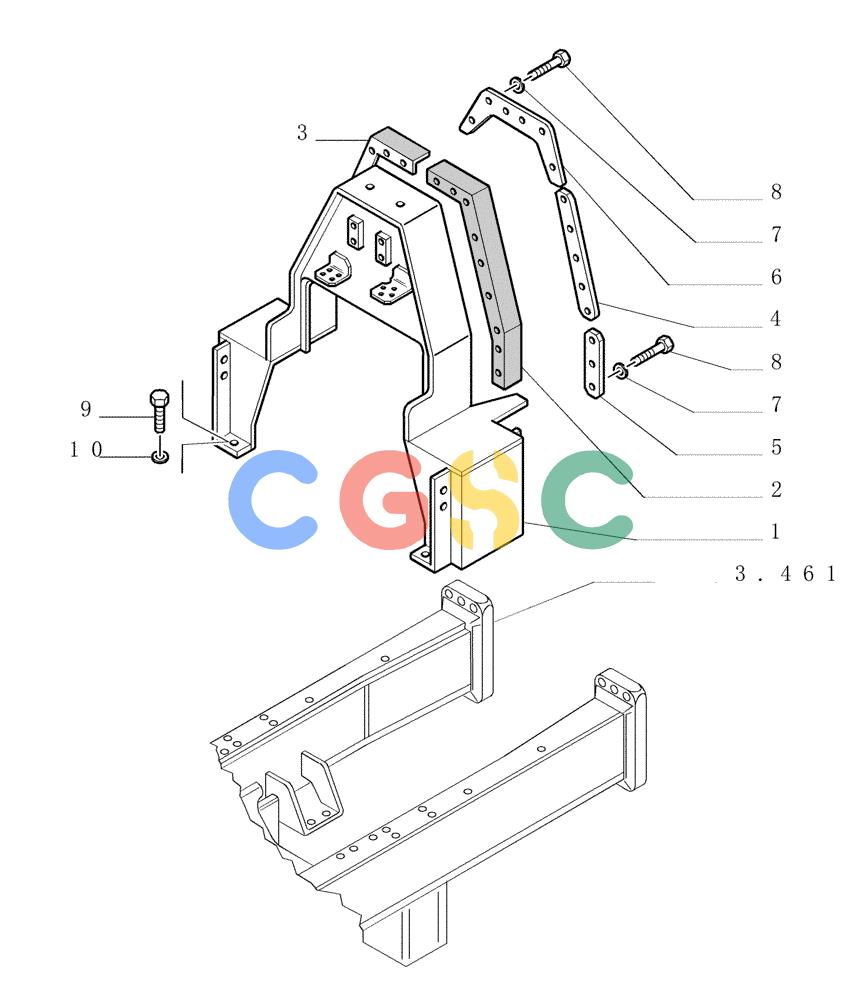

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (5.601[04]) - HOODS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
503 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046958 | [1] | FRAME | LEC |
| 2. | 76054518 | [1] | SEAL | LEC- LEFT |
| 3. | 76054551 | [1] | SEAL | LEC- RIGHT |
| 4. | 76046945 | [2] | STRAP | LEC |
| 5. | 76046946 | [2] | STRAP | LEC |
| 6. | 76046949 | [1] | PLATE | LEC |
| 7. | 13336707 | [20] | WASHER | LEC7 |
| 8. | 13313217 | [20] | SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd | LEC |
| 9. | 11408631 | [4] | BOLT,Hex, M20 x 1.5 x 45, 10.9, Full Thd | LEC Superseded by part number: 514-1211 |
| 10. | 79032222 | [4] | WASHER,21mm ID x 40mm OD x 8mm Thk | LEC |
