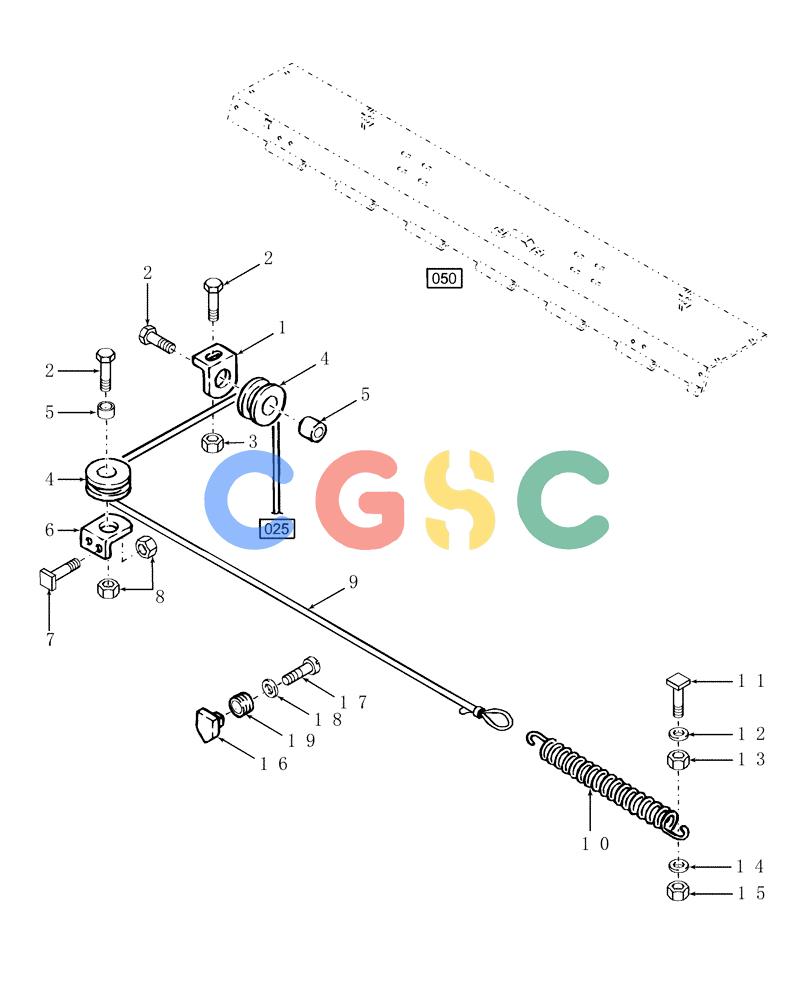

凯斯零件查询(RBX561) - CASE IH ROUND BALER (12/01-8/02) (021) - TWINE WRAPPER INDICATOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
329 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
689986
|
[4] |
ANGLE
|
NH
Bracket
|
| 2. |
844-8030
|
[1] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87779272, 9804260
|
| 3. |
825-5146
|
[8] |
SERRATED NUT,M6, Flg Ser
|
CAS
Superseded by part number: 86511444
|
| 4. |
510932
|
[4] |
PULLEY,50.01mm OD
|
NH
|
| 5. |
696365
|
[1] |
SPACER
|
NH
|
| 6. |
9800902
|
[1] |
ANGLE
|
NH
|
| 7. |
811-8020
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 8. |
825-5148
|
[1] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 9. |
9828116
|
[1] |
CABLE
|
NH
|
| 10. |
86509848
|
[1] |
SPRING
|
NH
Extension Superseded by part number: 217208
|
| 11. |
9706703
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 12. |
495-21038
|
[1] |
WASHER,5/16"
|
CAS
Superseded by part number: 80664, 72187263
|
| 13. |
825-1406
|
[1] |
NUT,M6, Cl 8
|
CAS
Superseded by part number: 86500688
|
| 14. |
495-21031
|
[1] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 15. |
832-46406
|
[1] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 16. |
9612212
|
[1] |
INDICATOR
|
NH
|
| 17. |
281020
|
[1] |
SELF-TAP SCREW,Pan HD, #8 - 18 x 3/4"
|
NH
|
| 18. |
495-21019
|
[1] |
WASHER,#8
|
CAS
Superseded by part number: 280299, 72187261
|
| 19. |
9619090
|
[1] |
CAP COVER
|
NH
|
