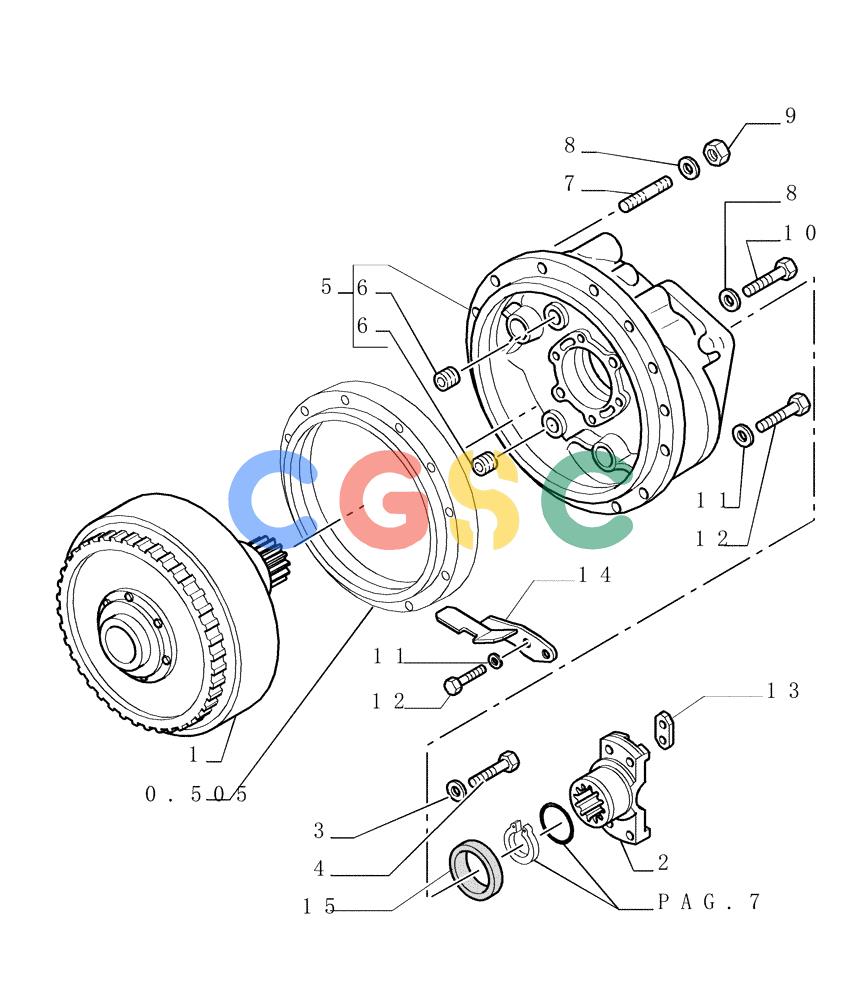

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (1.200[01]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
209 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040600 | [1] | TORQUE CONVERTER | LEC- ASSY SEE PAG.4 |
| 1. | 76040600R | [1] | REMAN-TORQUE CONVERT | RACER Torque Converter |
| 1. | 76040600C | [1] | CORE-TORQUE CONVERTR | RACCORE-TORQUE CONVERTER Return Number, DC180 |
| 2. | 76045594 | [1] | SLEEVE | LEC- SHAFT |
| 3. | 592075 | [6] | WASHER,13.7mm ID x 22mm OD x 1.5mm Thk | LEC |
| 4. | 586977 | [6] | BOLT | LEC |
| 5. | 76069552 | [1] | COVER | LEC- ASSY |
| 6. | 14325501 | [3] | PLUG | LEC28X1,5X13 Superseded by part number: 14325511 |
| 7. | 16731330 | [1] | STUD | LEC10X30 |
| 8. | 14496631 | [25] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 9. | 11701721 | [1] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 10. | 11106631 | [24] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 11. | 12638631 | [2] | WASHER,10.6mm ID x 18mm OD x 2mm Thk | LEC Superseded by part number: 86625251 |
| 12. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 13. | 592915 | [1] | CONTROL PANEL | LEC |
| 14. | 76052996 | [1] | DEFLECTOR | LEC |
| 15. | 76006357 | [1] | SEAL,90mm ID x 115mm OD x 13mm Thk | LEC |
