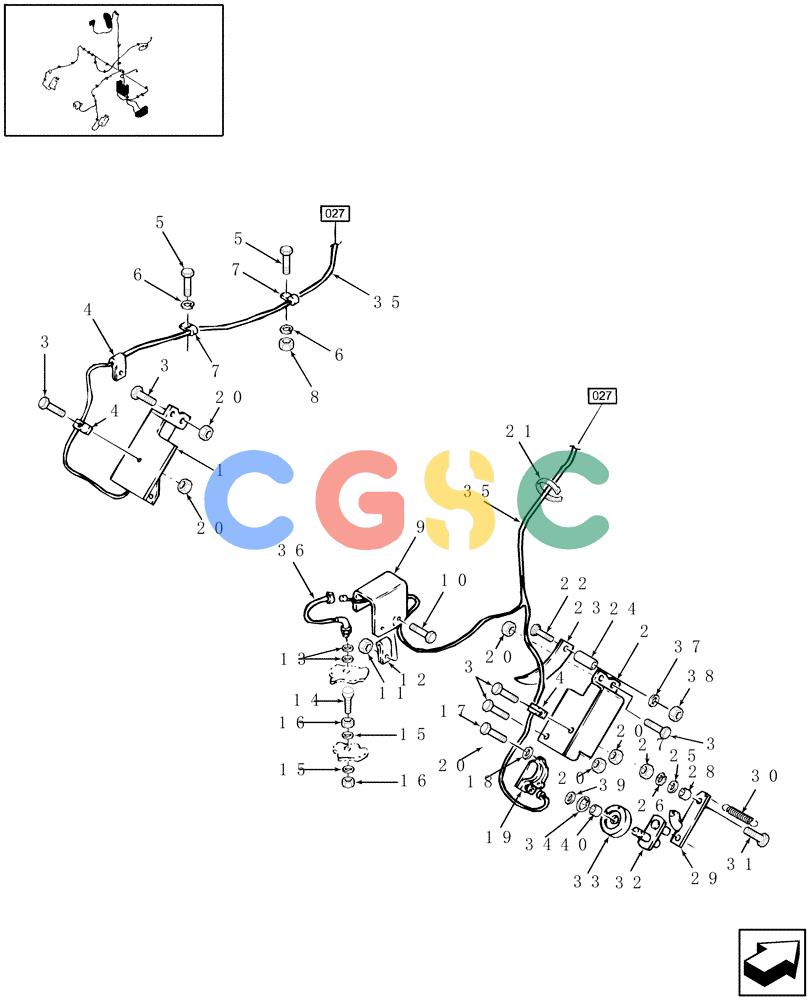

| 1. |
86506979
|
[1] |
SHIELD
|
NH
LH
|
| 2. |
86511226
|
[1] |
SHIELD
|
NH
RH
|
| 3. |
905-8016
|
[8] |
BOLT,Hex Flg, M8 x 16mm
|
CAS
Superseded by part number: 86511478
|
| 4. |
515-2279
|
[3] |
CLAMP,5/16", Insul, 5/16" Bolt
|
CAS
Superseded by part number: 853764
|
| 5. |
614-10020
|
[2] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 6. |
892-11010
|
[2] |
LOCK WASHER,M10
|
CAS
Superseded by part number: 140028
|
| 7. |
134580
|
[2] |
WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type
|
NH
|
| 8. |
825-1410
|
[1] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 9. |
86522001
|
[1] |
SHIELD
|
NH
|
| 10. |
614-6016
|
[3] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86508568
|
| 11. |
825-5146
|
[6] |
SERRATED NUT,M6, Flg Ser
|
CAS
Superseded by part number: 86511444
|
| 12. |
237910
|
[1] |
WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type
|
NH
|
| 12. |
237980
|
[1] |
WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type
|
NH
7/16" x 1/4" Bolt
|
| 13. |
495-11053
|
[2] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 14. |
694181
|
[1] |
MAGNET
|
NH
Tailgate Latch
|
| 15. |
495-21044
|
[10] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 16. |
231-5145
|
[16] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 17. |
614-4020
|
[2] |
BOLT,Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 412255
|
| 18. |
493-41020
|
[1] |
LOCK WASHER,Ext Tooth, #10
|
CAS
Superseded by part number: 9672521
|
| 19. |
86500902
|
[1] |
POTENTIOMETER,3000 Ohm, 16 VDC
|
NH
Bale Shape Sensing Superseded by part number: 86977396
|
| 20. |
825-5148
|
[8] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 21. |
263117
|
[1] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 22. |
433-548
|
[4] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5
|
CAS
Superseded by part number: 281006
|
| 23. |
86637389
|
[2] |
SPRING
|
NH
Bale Shape
|
| 24. |
718782
|
[4] |
SPACER
|
NH
|
| 25. |
495-21031
|
[2] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 26. |
492-11031
|
[4] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| 27. |
825-1408
|
[6] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
| 28. |
177822
|
[2] |
SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk
|
NH
21/64" ID x .500" OD x .170" Lg.
|
| 29. |
86637391
|
[2] |
ARM
|
NH
|
| 30. |
217465
|
[2] |
SPRING
|
NH
Extension
|
| 31. |
614-8020
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm
|
CAS
Superseded by part number: 120104
|
| 32. |
86619565
|
[2] |
SUPPORT
|
NH
|
| 33. |
86509329
|
[2] |
MOUNTING PLATE
|
NH
Includes: Ref. 040 Superseded by part number: 87362420
|
| 34. |
100-3437
|
[2] |
SNAP RING,#37, Ext
|
CAS
Superseded by part number: 86000439
|
| 35. |
86592582
|
[1] |
WIRE HARNESS
|
NH
Net-Twine, Refer to Fig. 030
|
| 35. |
86624226
|
[1] |
HARNESS
|
NH
Wire, Twine, Refer to Fig. 029
|
| 36. |
9848810
|
[4] |
SWITCH
|
NH
Hall Effect, Tailgate Latch Superseded by part number: 87019854
|
| 37. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 38. |
425-105
|
[1] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 39. |
86613601
|
[1] |
WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk
|
NH
Urethane
|
| 40. |
86509761
|
[2] |
BUSHING
|
NH
|
