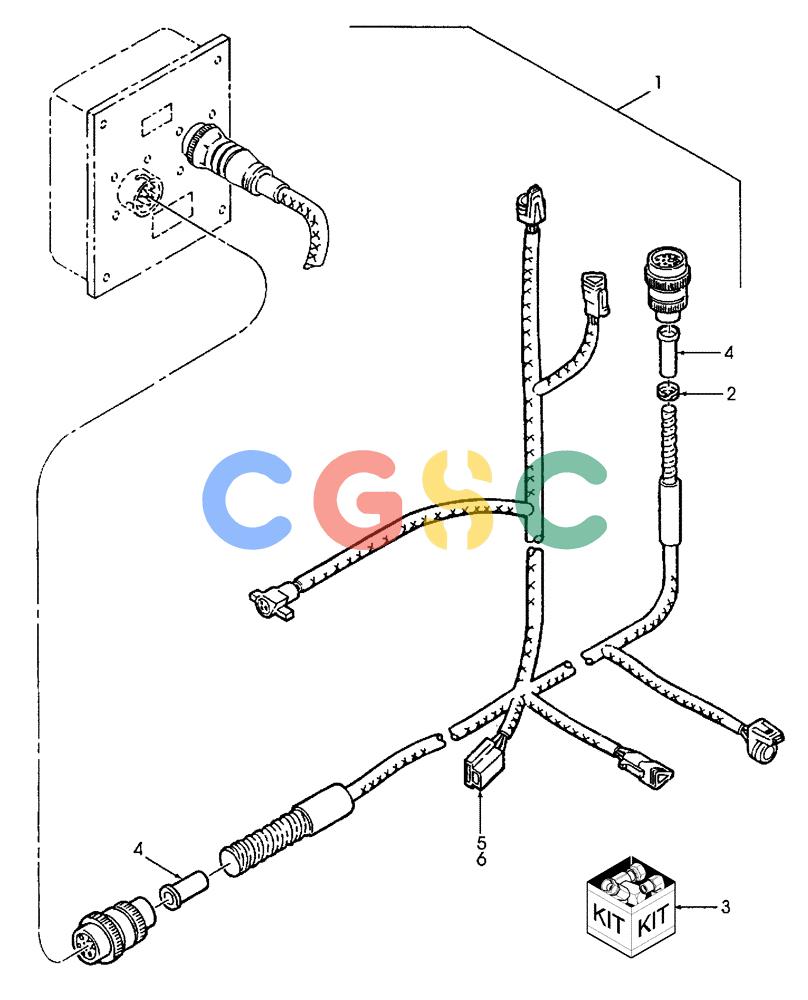

凯斯零件查询(RBX561) - CASE IH ROUND BALER (12/01-8/02) (029) - ELECTRICAL, TWINE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
623 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86624226
|
[1] |
HARNESS
|
NH
Wiring, Twine
|
| 2. |
792026
|
[1] |
LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk
|
NH
Split, Int, 1.00"
|
| 3. |
9842514
|
[2] |
KIT
|
NH
3DT, Includes: Parts listed below Superseded by part number: 87695723, 87695646, 87695625, 87695580
|
| . . |
9842513
|
[1] |
PLUG
|
NH
Wedge Lock Superseded by part number: 87695646
|
| . . |
9842512
|
[1] |
ELEC CONNECTOR,Female, 16
|
NH
Plug, 3S Superseded by part number: 87695580
|
| . . |
9611173
|
[1] |
PLUG
|
NH
Wedge Superseded by part number: 87695625
|
| . . |
9611172
|
[1] |
WIRE CONNECTOR,16 SAE
|
NH
Receptacle, 3P Superseded by part number: 87695723
|
| 4. |
9619682
|
[2] |
BUSHING
|
NH
MS3420-12
|
| 5. |
248712
|
[2] |
BODY
|
NH
Superseded by part number: 87693325
|
| 6. |
900613
|
[2] |
TERMINAL
|
NH
E18 Superseded by part number: NH900613
|
