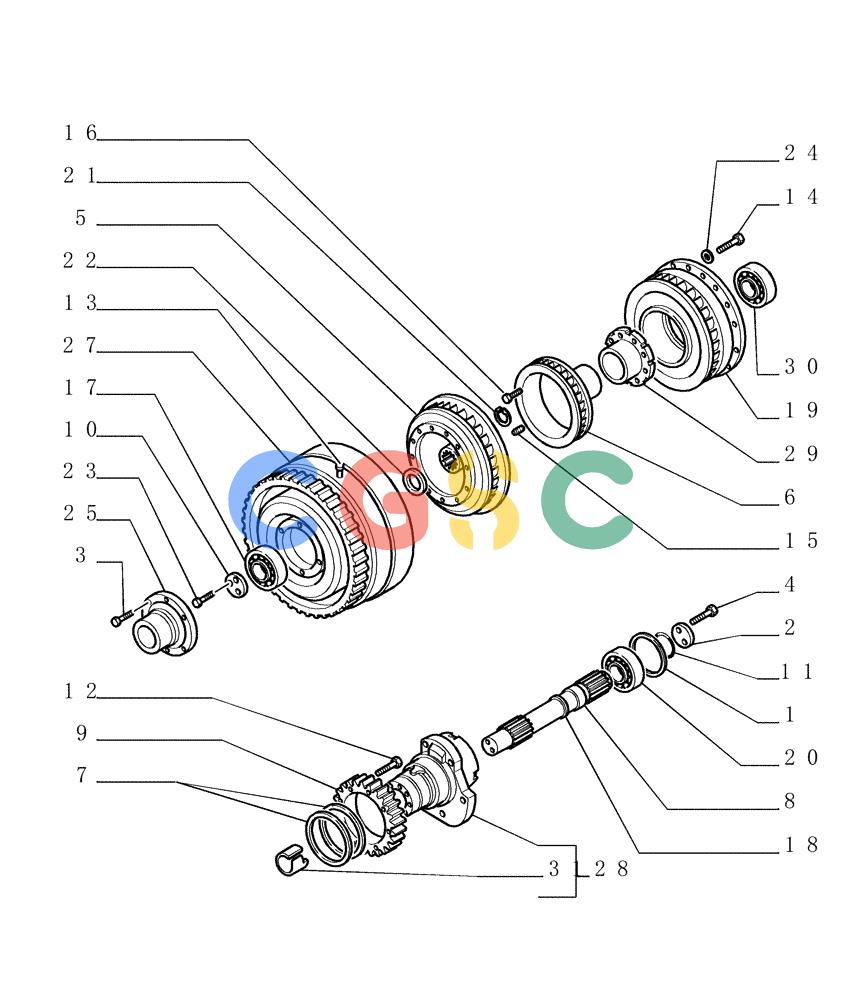

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (1.200[04]) - TORQUE CONVERTER - COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
755 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9915528 | [1] | RING | LEC |
| 2. | 9915534 | [1] | DISC | LEC |
| 3. | 9920143 | [6] | SCREW | LEC |
| 4. | 9920146 | [2] | SCREW | LEC Superseded by part number: 70923276 |
| 5. | 9921020 | [1] | IMPELLER | LEC |
| 6. | 9921021 | [1] | STATOR | LEC |
| 7. | 9921026 | [1] | RING | LEC |
| 8. | 9921028 | [1] | SHAFT | LEC |
| 9. | 79054094 | [1] | GEAR | LEC |
| 10. | 9921054 | [1] | DISC | LEC |
| 11. | 70628362 | [1] | O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro | LEC Superseded by part number: 235760 |
| 12. | 70915480 | [8] | SCREW | LEC Superseded by part number: 70925632 |
| 13. | 70917673 | [2] | PLUG | LEC Superseded by part number: 70901652 |
| 14. | 70921422 | [36] | SCREW | LEC |
| 15. | 70921458 | [6] | LOCK PIN,5/16" x 3/4", Slotted | LEC Superseded by part number: 88781 |
| 16. | 70922405 | [8] | SCREW | LEC |
| 17. | 73012085 | [1] | BALL BEARING,55mm ID x 120mm OD x 29mm W | LEC Superseded by part number: ST405 |
| 18. | 73034877 | [1] | RING | LEC |
| 19. | 76040614 | [1] | IMPELLER | LEC |
| 20. | 73037960 | [1] | CYLINDRICAL ROLLER BEARING,64.99mm ID x 120mm OD x 23mm W | LEC |
| 21. | 73037966 | [1] | SNAP RING | LEC |
| 22. | 73037967 | [1] | SPACER,55.14mm ID x 76.2mm OD x 5.33mm L | LEC |
| 23. | 73039119 | [2] | SCREW | LEC Superseded by part number: 70922851 |
| 24. | 73046938 | [36] | WASHER,8.38mm ID x 19.05mm OD x 1.96mm Thk | LEC |
| 25. | 76003995 | [1] | SLEEVE | LEC |
| 27. | 79008330 | [1] | IMPELLER | LEC |
| 28. | 79008331 | [1] | SUPPORT | LEC- ASSY |
| 29. | 79008332 | [1] | BOX | LEC |
| 30. | 73037930 | [1] | BALL BEARING,94.98mm ID x 145mm OD x 24mm W | LEC |
| 31. | 79011561 | [1] | BUSHING | LEC |
