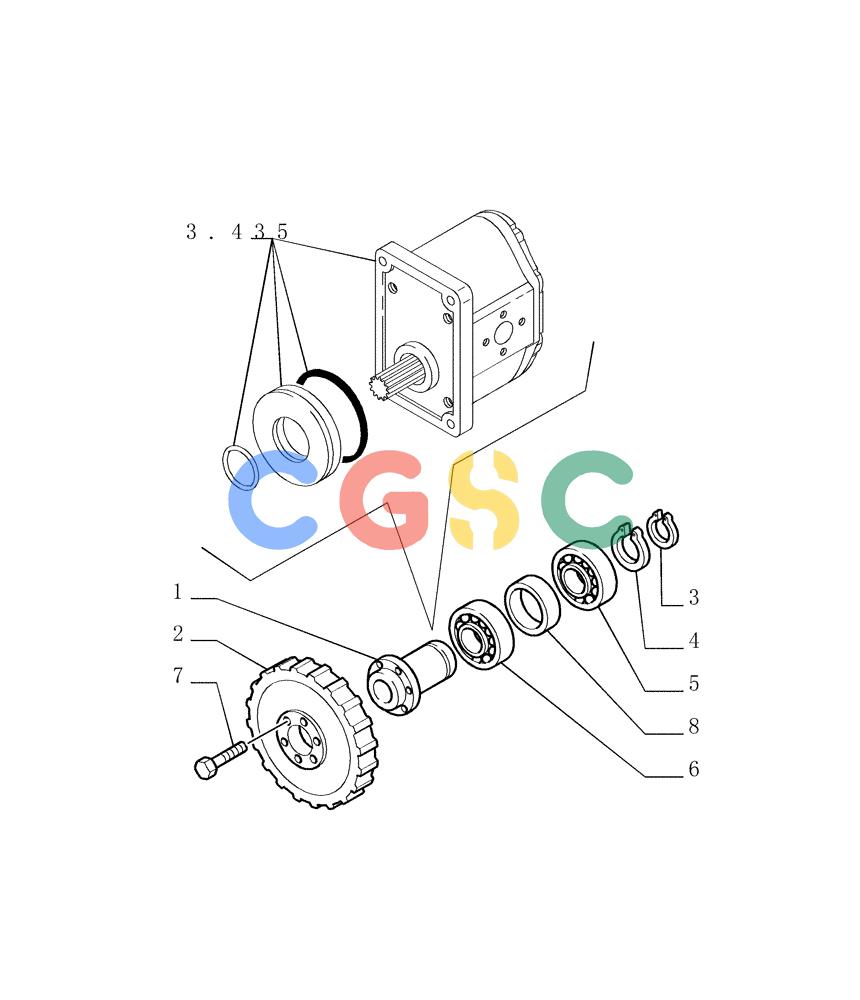

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (1.200[05]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
243 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040832 | [1] | IDLE SHAFT | LEC- PUMP Attrezzo |
| 2. | 4953896 | [1] | GEAR | LEC |
| 3. | 11069876 | [1] | SNAP RING,M60, Ext | LEC Superseded by part number: 370027 |
| 4. | 11075476 | [1] | SNAP RING,M110, Int | TTF Superseded by part number: |
| 5. | 20141040 | [1] | BALL BEARING,60mm ID x 110mm OD x 22mm W | TTF60X110X22 |
| 6. | 76040831 | [1] | CYLINDRICAL ROLLER BEARING,60mm ID x 110mm OD x 22mm W | LEC |
| 7. | 14233430 | [6] | SCREW,M10 x 1.25 x 25mm | LEC10X1,25X25 Superseded by part number: 16323434 |
| 8. | 76040830 | [1] | SPACER,60.5mm ID x 70mm OD x 14mm L | LEC70X60X14 |
