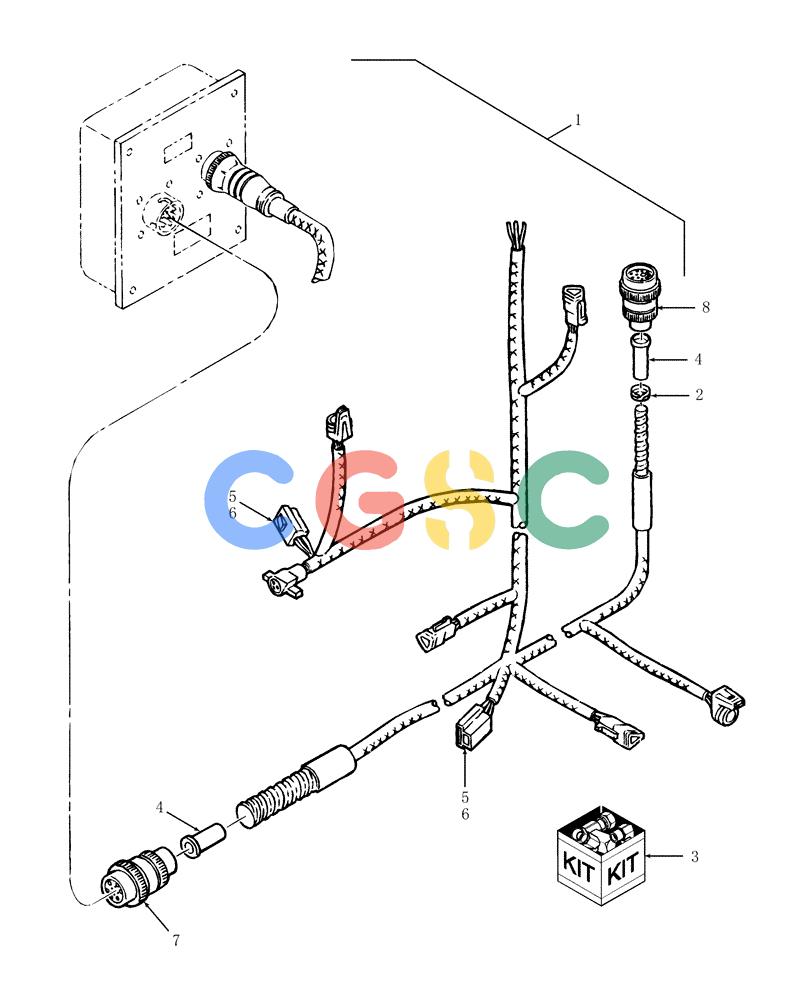

凯斯零件查询(RBX561) - CASE IH ROUND BALER (12/01-8/02) (030) - ELECTRICAL, NET-TWINE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
122 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86592582
|
[1] |
WIRE HARNESS
|
NH
Net/Twine
|
| 2. |
792026
|
[1] |
LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk
|
NH
Split, Int, 1.00"
|
| 3. |
9842514
|
[3] |
KIT
|
NH
3DT, Includes: Parts listed below Superseded by part number: 87695723, 87695646, 87695625, 87695580
|
| . . |
9842513
|
[1] |
PLUG
|
NH
Wedge Lock Superseded by part number: 87695646
|
| . . |
9842512
|
[1] |
ELEC CONNECTOR,Female, 16
|
NH
3S Plug Superseded by part number: 87695580
|
| . . |
9611173
|
[1] |
PLUG
|
NH
Wedge Superseded by part number: 87695625
|
| . . |
9611172
|
[1] |
WIRE CONNECTOR,16 SAE
|
NH
3P Recpetacle Superseded by part number: 87695723
|
| 4. |
9619682
|
[2] |
BUSHING
|
NH
MS3420-12
|
| 5. |
248712
|
[2] |
BODY
|
NH
Superseded by part number: 87693325
|
| 6. |
900613
|
[4] |
TERMINAL
|
NH
E18 Superseded by part number: NH900613
|
| 7. |
86564210
|
[1] |
MULTIPOLE CONNECTOR,Female, 19 Pole
|
NH
DEU Plug, 19 SN Superseded by part number: 87711987
|
| . . |
900786
|
[1] |
ELEC. TERMINAL PIN,Male, 5 - 8 mm2
|
NH
E8 Superseded by part number: 87697948
|
| . . |
900316
|
[1] |
ELEC. TERMINAL PIN,Male, 2 -3.5 mm2
|
NH
E8 Superseded by part number: 87696144
|
| . . |
900363
|
[1] |
TERMINAL
|
NH
E8 Superseded by part number: 87697947
|
| 8. |
86520117
|
[1] |
ELEC CONNECTOR,Male, 16 - 8 SAE
|
NH
DEU Plug, 18 Cav Pin
|
