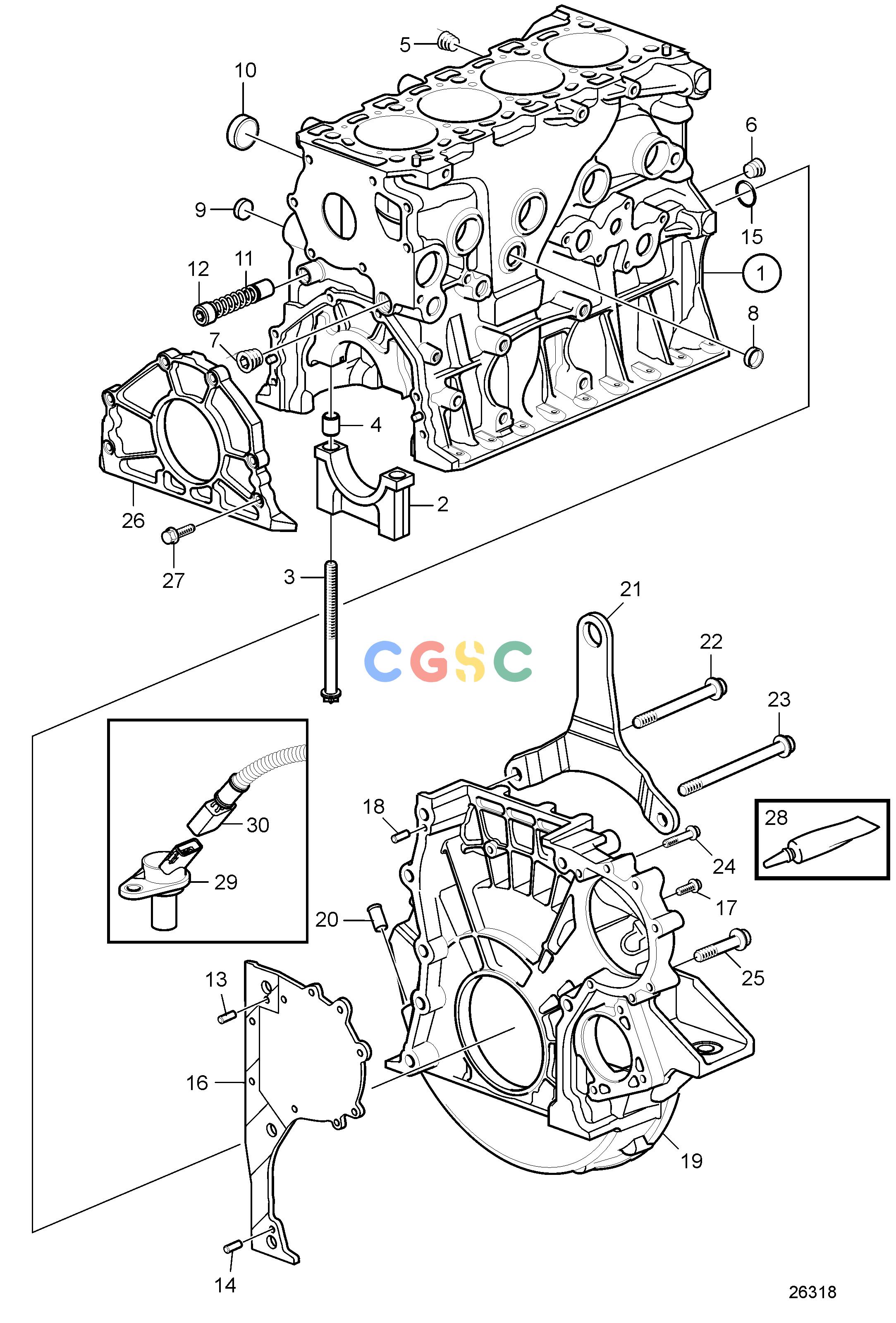

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FEngineCylinder Block and Flywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
996 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
21384457
|
[10] |
Flange screw
|
|
| 4. |
3584214
|
[10] |
Guide sleeve
|
|
| 5. |
968061
|
[1] |
Plug
|
|
| 6. |
968063
|
[2] |
Plug
|
|
| 7. |
979947
|
[2] |
Plug
|
|
| 8. |
3583447
|
[1] |
Expansion plug
|
|
| 9. |
24426721
|
[4] |
Expansion plug
|
|
| 10. |
24426722
|
[9] |
Expansion plug
|
|
| 11. |
3583079
|
[1] |
Piston cooling valve
|
|
| 12. |
982121
|
[1] |
Plug
|
|
| 13. |
950562
|
[1] |
Pin
|
|
| 14. |
950566
|
[1] |
Pin
|
|
| 15. |
3843507
|
[1] |
O-ring
|
|
| 16. |
3582847
|
[1] |
Plate
|
|
| 17. |
946173
|
[2] |
Flange screw
|
|
| 18. |
950564
|
[5] |
Pin
|
|
| 19. |
40005732
|
[1] |
Flywheel housing
|
Replaced by 22635095
|
| 19. |
22635095
|
[1] |
Flywheel housing
|
|
| 20. |
3583622
|
[1] |
Hose connection
|
|
| 21. |
|
|
|
|
| 22. |
984867
|
[1] |
Flange screw
|
|
| 23. |
966368
|
[2] |
Flange screw
|
|
| 24. |
994441
|
[3] |
Flange screw
|
|
| 25. |
984859
|
[5] |
Flange screw
|
|
| 26. |
3582750
|
[1] |
Cap
|
|
| 27. |
946671
|
[6] |
Flange screw
|
|
| 28. |
1161771
|
[1] |
Sealing compound
|
|
| 29. |
21426987
|
[1] |
Speed monitor
|
|
| 30. |
21138237
|
[1] |
Wiring harness
|
|
