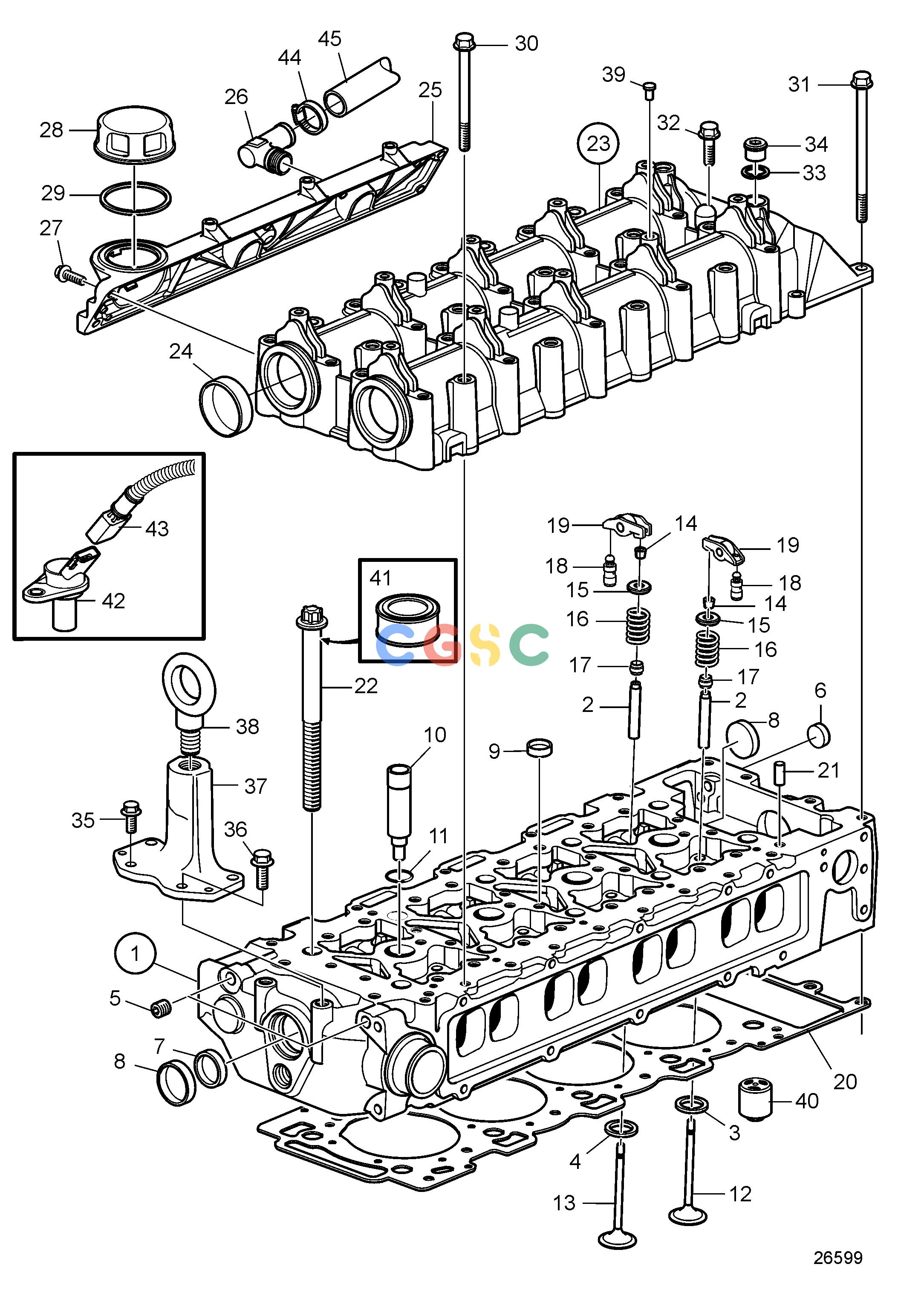

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FEngineCylinder Head, ExchangeEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
883 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801255
|
[1] |
Cylinder head
|
Replaced by 3801693
|
| 1. |
3801693
|
[1] |
Cylinder head, exch
|
|
| 1. |
22814376
|
[1] |
Cylinder head
|
|
| 2. |
3580892
|
[16] |
Valve guide
|
|
| 3. |
3581861
|
[8] |
Valve seat, intake
|
|
| 4. |
3581862
|
[8] |
Valve seat, exhaust
|
|
| 5. |
990828
|
[4] |
Plug
|
|
| 6. |
3588502
|
[2] |
Expansion plug
|
|
| 7. |
24426721
|
[2] |
Expansion plug
|
|
| 8. |
8131707
|
[2] |
Cap plug
|
|
| 9. |
3583579
|
[7] |
Expansion plug
|
|
| 10. |
889970
|
[4] |
Sleeve
|
|
| 11. |
3583753
|
[4] |
O-ring
|
|
| 12. |
3884010
|
[8] |
Inlet valve
|
|
| 13. |
3884015
|
[8] |
Exhaust valve
|
|
| 14. |
861703
|
[32] |
Valve cotter
|
|
| 15. |
3581890
|
[16] |
Valve spring washer
|
|
| 16. |
3581889
|
[16] |
Valve spring
|
|
| 17. |
861700
|
[16] |
Valve seal
|
|
| 18. |
3581894
|
[16] |
Rocker arm
|
|
| 19. |
3581893
|
[16] |
Cam
|
|
| 20. |
21165389
|
[1] |
Gasket
|
|
| 21. |
950564
|
[2] |
Pin
|
|
| 22. |
21384459
|
[10] |
Six point screw
|
|
| 23. |
21454061
|
[1] |
Valve cover
|
|
| 24. |
8130035
|
[2] |
Expansion plug
|
|
| 25. |
|
|
|
|
| 26. |
3583959
|
[2] |
Elbow nipple
|
|
| 27. |
948356
|
[5] |
Flange screw
|
|
| 28. |
1275403
|
[1] |
Oil filler cap
|
|
| 29. |
1275379
|
[1] |
Gasket
|
|
| 30. |
965182
|
[28] |
Flange screw
|
|
| 31. |
968999
|
[3] |
Flange screw
|
|
| 32. |
945444
|
[1] |
Flange screw
|
|
| 33. |
947622
|
[2] |
Gasket
|
|
| 34. |
966143
|
[2] |
Plug
|
|
| 35. |
946329
|
[2] |
Flange screw
|
|
| 36. |
946173
|
[2] |
Flange screw
|
|
| 37. |
3888143
|
[1] |
Lifting bracket
|
|
| 38. |
984458
|
[1] |
Lifting eye
|
|
| 39. |
3584061
|
[10] |
Washer
|
|
| 40. |
3582933
|
[2] |
Valve
|
|
| 41. |
3588347
|
[1] |
Lubricant
|
25G
|
| 42. |
21426987
|
[1] |
Speed monitor
|
|
| 43. |
21138239
|
[1] |
Wiring harness
|
|
| 44. |
994559
|
[1] |
Hose clamp
|
|
| 45. |
21882796
|
[1] |
Hose
|
L=265mm
|
