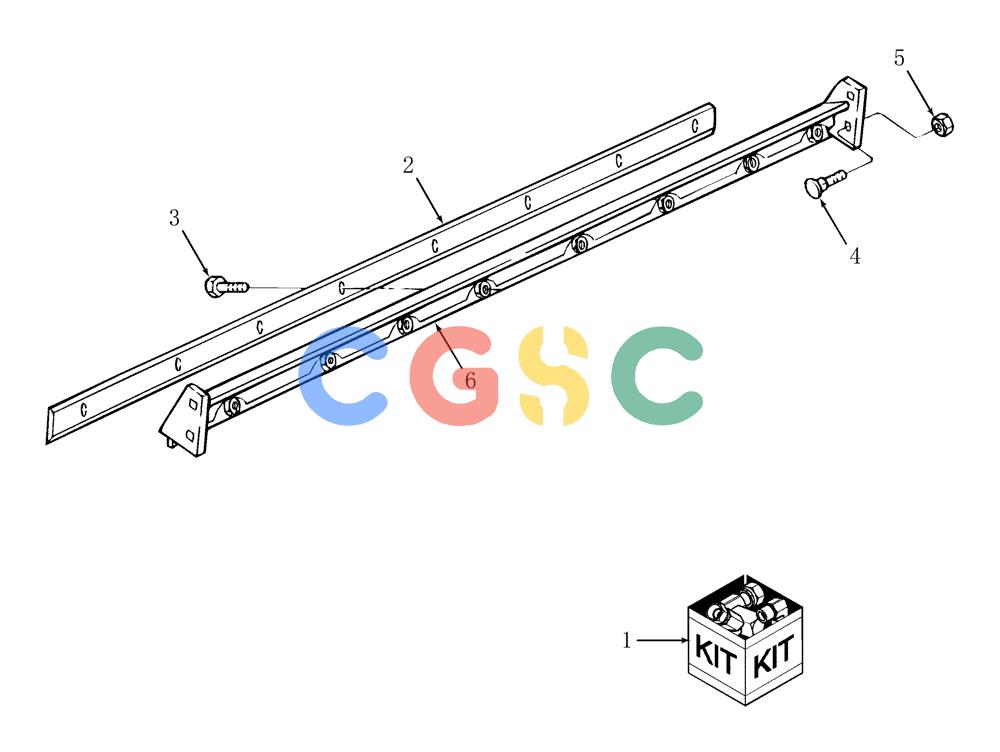

凯斯零件查询(RBX561) - CASE IH ROUND BALER (12/01-8/02) (048) - SCRAPER KIT, BACK WRAP ROLLER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86618686
|
[1] |
SCRAPER
|
NH
KIT, Includes: Ref. 2 - 6
|
| 2. |
86637004
|
[1] |
SCRAPER BLADE
|
NH
|
| 3. |
905-8020
|
[8] |
BOLT,Hex Flg, M8 x 20mm
|
CAS
Superseded by part number: 86511479
|
| 4. |
811-10020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| 5. |
825-51410
|
[4] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 6. |
86637017
|
[1] |
SUPPORT
|
NH
|
