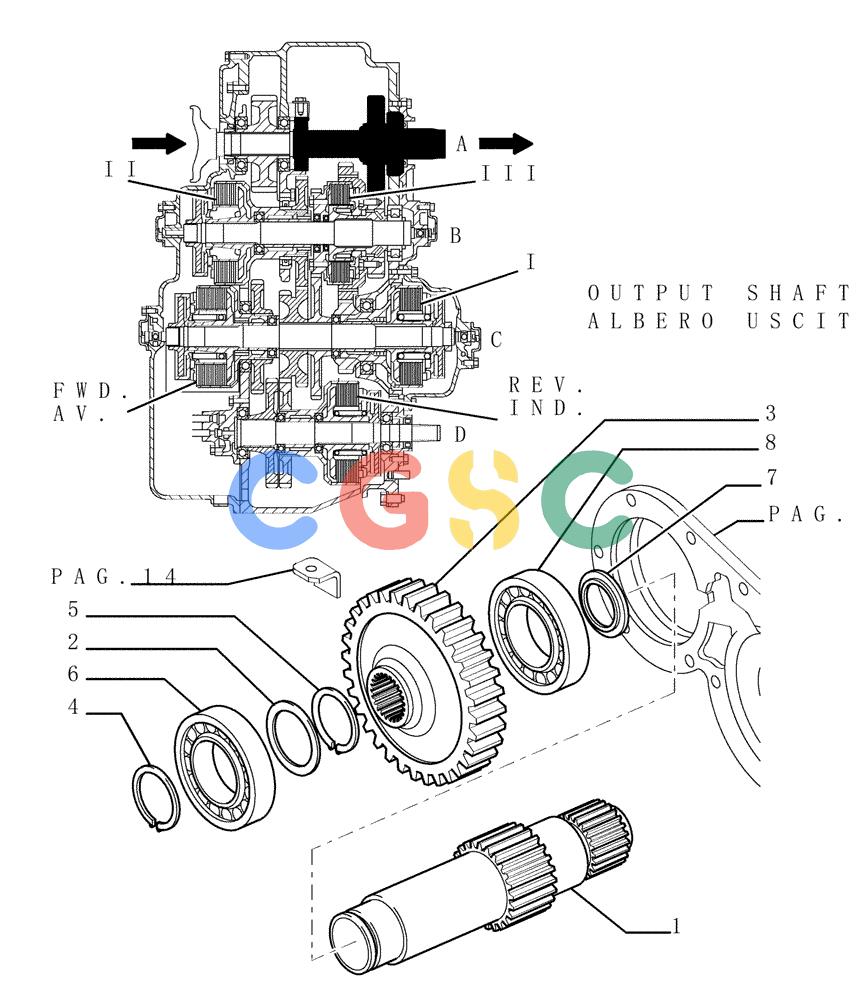

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (1.211[24]) - TRANSMISSION - COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
620 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4969273 | [1] | SHAFT | LEC |
| 2. | 4969274 | [1] | SPACER,50mm ID x 62mm OD x 3mm L | LEC |
| 3. | 4982114 | [1] | GEAR | LEC48T |
| 4. | 11069376 | [1] | SNAP RING,M50, Ext | TTF Superseded by part number: 8603209 |
| 5. | 11069876 | [1] | SNAP RING,M60, Ext | LEC Superseded by part number: 370027 |
| 6. | 20229990 | [1] | BALL BEARING,50mm ID x 110mm OD x 27mm W | TTF50X110X27 Superseded by part number: 84356134 |
| 7. | 40000130 | [1] | RUBBER RING | LEC60X90X10 Superseded by part number: 40000131 |
| 8. | 79032304 | [1] | ROLLER BEARING,60mm ID x 130mm OD x 31mm W | LEC |
