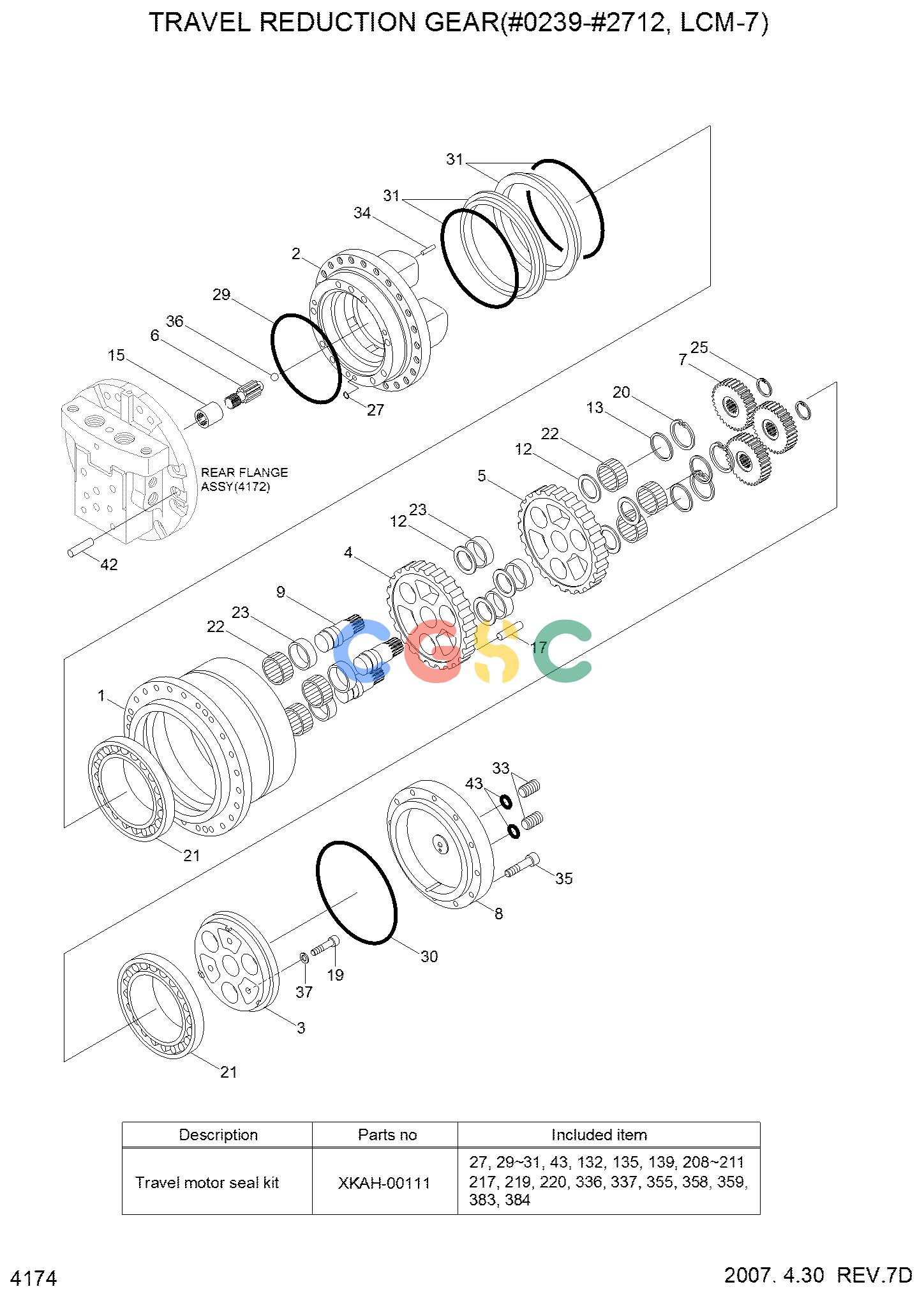

现代零件查询R140LC-7 TRAVEL REDUCTION GEAR(#0239-#2712,LCM-7)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
404 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
TRAVEL MOTOR ASSY
|
|
| -2. |
XKAH-00474
|
[1] |
T/REDUCTION GEAR
|
|
| 1. |
XKAH-00001
|
[1] |
HUB
|
|
| -9. |
XKAH-00002
|
[1] |
SPINDLE KIT
|
|
| -91. |
XKAH-00003
|
[1] |
SPINDLE ASSY
|
|
| N2. |
XKAH-00004
|
[1] |
SPINDLE
|
|
| N3. |
XKAH-00005
|
[1] |
HOLDER-FLANGE
|
|
| 19. |
XKAH-00006
|
[3] |
BOLT-SOCKET
|
|
| 34. |
XKAH-00007
|
[6] |
PIN-PARALLEL
|
|
| 37. |
XKAH-00008
|
[3] |
WASHER-PLAIN
|
|
| -10. |
XKAH-00371
|
[1] |
RV GEAR ASSY
|
|
| -101. |
XKAH-00010
|
[1] |
RV GEAR KIT
|
|
| N4. |
XKAH-00475
|
[1] |
RV GEAR(A)
|
|
| N5. |
XKAH-00476
|
[1] |
RV GEAR(B)
|
|
| N9. |
XKAH-00477
|
[3] |
SHAFT-CRANK
|
|
| 12. |
XKAH-00014
|
[6] |
SPACER
|
|
| 22. |
XKAH-00015
|
[6] |
BEARING-T/ROLLER
|
|
| 23. |
XKAH-00016
|
[6] |
BEARING-NEEDLE
|
|
| 6. |
XKAH-00017
|
[1] |
GEAR-INPUT
|
|
| -11. |
XKAH-00018
|
[1] |
GEAR-SPUR KIT
|
|
| 7. |
XKAH-00019
|
[3] |
GEAR-SPUR
|
|
| 8. |
XKAH-00480
|
[1] |
COVER
|
|
| 13. |
XKAH-00021
|
[3] |
PIECE-DISTANCE
|
|
| 15. |
XKAH-00022
|
[1] |
COUPLING
|
|
| 17. |
XKAH-00023
|
[24] |
PIN
|
|
| 20. |
XKAH-00024
|
[3] |
RING-SNAP
|
|
| 21. |
XKAH-00025
|
[2] |
BEARING-BALL
|
|
| 25. |
XKAH-00026
|
[3] |
RING-SNAP
|
|
| K27. |
XKAH-00027
|
[2] |
O-RING
|
|
| K29. |
XKAH-00028
|
[1] |
O-RING
|
|
| K30. |
XKAH-00029
|
[1] |
O-RING
|
|
| -12. |
XKAH-00372
|
[1] |
FLOATING SEAL KIT
|
|
| KN31. |
XKAH-00031
|
[2] |
SEAL-FLOATING
|
|
| 33. |
XKAH-00032
|
[3] |
PLUG-RO
|
|
| 35. |
XKAH-00110
|
[12] |
BOLT-SOCKET
|
|
| 36. |
XKAH-00033
|
[1] |
BALL-STEEL
|
|
| 42. |
XKAH-00034
|
[2] |
PIN-PARALLEL
|
|
| K43. |
XKAH-00035
|
[3] |
O-RING
|
|
| -1. |
@
|
[1] |
TRAVEL MOTOR UNIT
|
|
| K. |
XKAH-00111
|
[1] |
SEAL KIT
|
|
