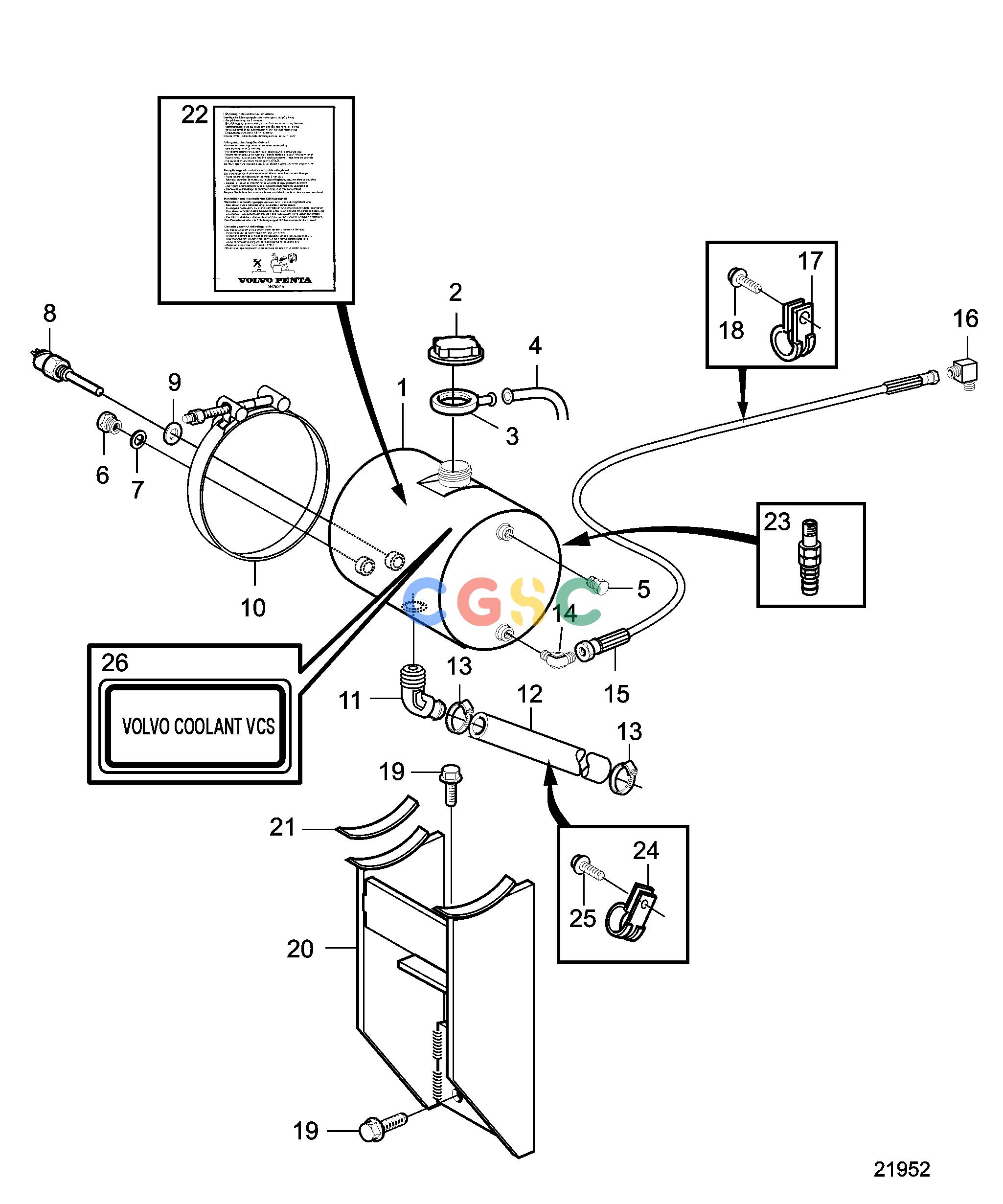

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TACooling SystemExpansion Tank, Keel CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827367
|
[1] |
Expansion tank
|
|
| 2. |
8149353
|
[1] |
Pressure cap
|
|
| 3. |
3828863
|
[1] |
Rubber collar
|
|
| 4. |
192618
|
[1] |
Hose
|
L=1000mm
|
| 5. |
479979
|
[2] |
Plug
|
|
| 6. |
979285
|
[1] |
Reduction nipple
|
|
| 7. |
947628
|
[1] |
Gasket
|
|
| 8. |
7745900_148
|
|
Level sensor
|
|
| 9. |
11998
|
[1] |
Gasket
|
|
| 10. |
3839545
|
[2] |
Tensioner
|
|
| 11. |
942590
|
[1] |
Elbow nipple
|
|
| 12. |
952970
|
[1] |
Hose
|
L=800mm
|
| 13. |
943473
|
[2] |
Hose clamp
|
|
| 14. |
942376
|
[1] |
Elbow nipple
|
|
| 15. |
3839383
|
[1] |
Air vent hose
|
L=730mm
|
| 16. |
813615
|
[1] |
Reduction nipple
|
|
| 17. |
952627
|
[3] |
Clamp
|
|
| 18. |
945414
|
[3] |
Flange screw
|
(946544)
|
| 19. |
984753
|
[4] |
Flange screw
|
L=25mm
|
| 20. |
3840211
|
[1] |
Bracket
|
(3837407), Replaced by 22496036
|
| 20. |
22496036
|
[1] |
Bracket
|
|
| 21. |
3839107
|
[2] |
Rubber mat
|
|
| 22. |
3825346
|
[1] |
Decal
|
|
| 23. |
966871
|
[1] |
Shut-off cock
|
|
| 24. |
947827
|
[1] |
Clamp
|
|
| 25. |
984733
|
[1] |
Flange screw
|
|
| 26. |
20777630
|
[1] |
Label
|
|
