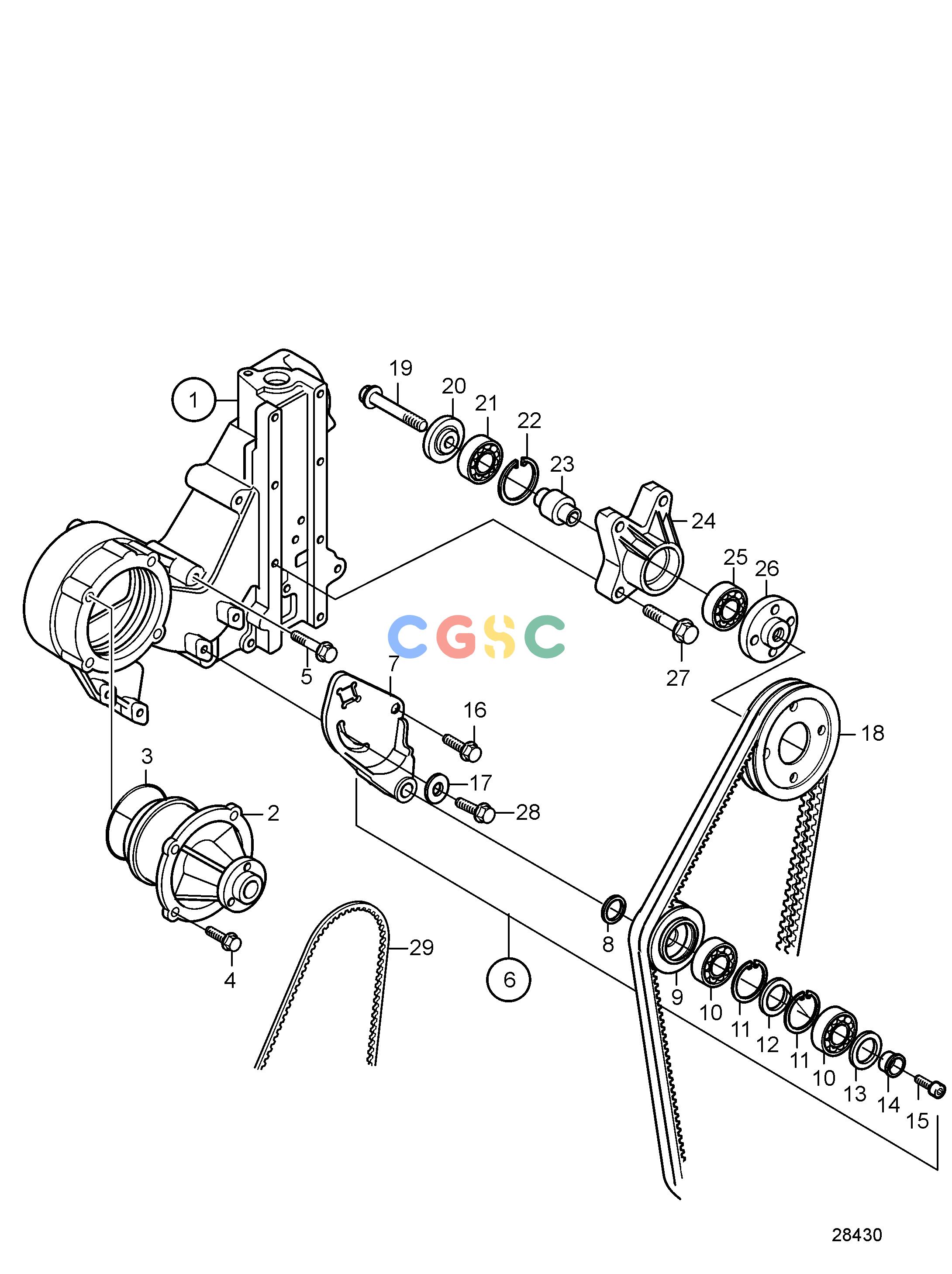

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TACooling SystemFan Drive System, without Belt for Fan, Ratio 1:10 SN-10707001EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7745900_110
|
|
Fan console
|
|
| 2. |
7745900_110
|
|
Circulation pump
|
|
| 3. |
7745900_110
|
|
Sealing ring
|
|
| 4. |
984734
|
[4] |
Flange screw
|
|
| 5. |
984741
|
[7] |
Flange screw
|
|
| 6. |
20450758
|
[1] |
Belt tensioner
|
SN10103092-10467324
|
| 6. |
21142055
|
[1] |
Belt tensioner
|
SN01099468-
|
| 6. |
22295257
|
[1] |
Belt tensioner
|
SN11415147-
|
| 7. |
21133671
|
[1] |
Belt tensioner
|
SN01099468-
|
| 8. |
20450762
|
[1] |
Ring
|
|
| 9. |
20450759
|
[1] |
Pulley
|
SN-22001331, Replaced by 22295270
|
| 9. |
22295270
|
[1] |
Pulley
|
SN22001332-
|
| 10. |
20450750
|
[2] |
Ball bearing
|
|
| 11. |
914529
|
[2] |
Snap ring
|
|
| 12. |
20450760
|
[1] |
Spacer sleeve
|
|
| 13. |
20450990
|
[1] |
Seal
|
|
| 14. |
20450761
|
[1] |
Spacer
|
|
| 15. |
20459263
|
[1] |
Hex. socket screw
|
|
| 16. |
970947
|
[1] |
Hexagon screw
|
|
| 17. |
20460365
|
[1] |
Washer
|
|
| 18. |
20509134
|
[1] |
Pulley
|
|
| 19. |
20450754
|
[1] |
Hexagon screw
|
|
| 20. |
20999732
|
[1] |
Washer
|
|
| 21. |
181335
|
[1] |
Ball bearing
|
(20450750)
|
| 22. |
914529
|
[1] |
Snap ring
|
|
| 23. |
21009699
|
[1] |
Shaft
|
|
| 24. |
20715795
|
[1] |
Bearing bracket
|
|
| 25. |
181648
|
[1] |
Ball bearing
|
(20450749)
|
| 26. |
20450755
|
[1] |
Fan hub
|
|
| 27. |
984755
|
[4] |
Flange screw
|
|
| 28. |
20755314
|
[1] |
Flange screw
|
|
| 29. |
20549899
|
[1] |
V-belt
|
|
