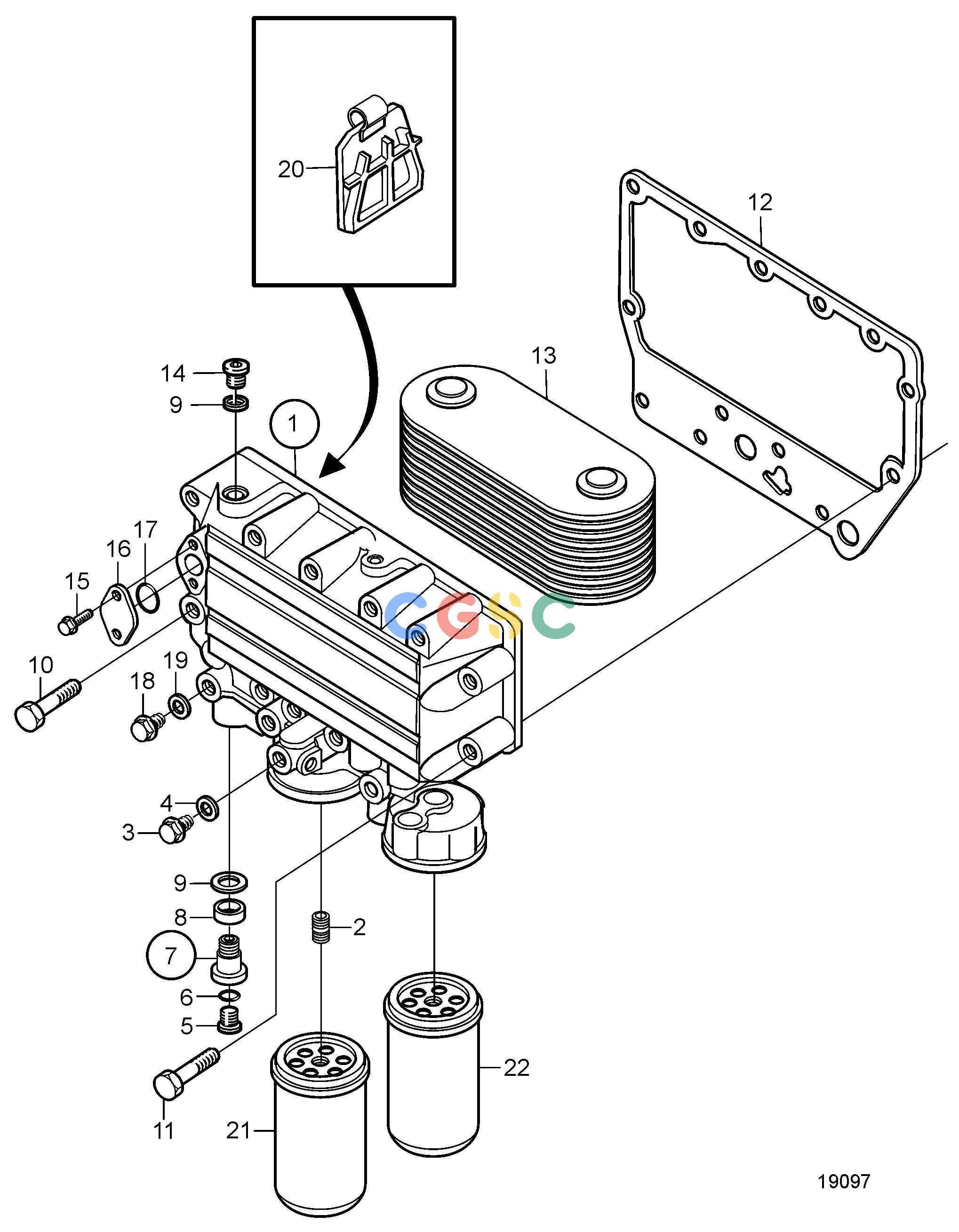

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TACooling SystemOil Cooler and Oil FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
814 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20797236
|
[1] |
Oil cooler
|
(20485258)
|
| 2. |
20405758
|
[1] |
Bushing
|
|
| 3. |
960628
|
[1] |
Plug
|
|
| 4. |
947281
|
[1] |
Gasket
|
|
| 5. |
20549897
|
[2] |
Plug
|
|
| 6. |
20405578
|
[2] |
O-ring
|
|
| 7. |
20405752
|
[2] |
Screw
|
|
| 8. |
20405569
|
[2] |
Sealing ring
|
|
| 9. |
957189
|
[4] |
Gasket
|
|
| 10. |
20405917
|
[10] |
Flange screw
|
L=80mm
|
| 11. |
973924
|
[3] |
Flange screw
|
L=50mm
|
| 12. |
20405747
|
[1] |
Gasket
|
|
| 13. |
21095054
|
[1] |
Oil cooler, classifiable
|
|
| 13. |
20715675
|
[1] |
Oil cooler
|
|
| 14. |
20459195
|
[2] |
Plug
|
|
| 15. |
965215
|
[2] |
Flange screw
|
|
| 16. |
11700609
|
[1] |
Flange
|
|
| 17. |
20405599
|
[1] |
O-ring
|
|
| 18. |
20450891
|
[1] |
Plug
|
|
| 19. |
957181
|
[1] |
Gasket
|
|
| 20. |
20405744
|
[1] |
Valve
|
|
| 21. |
3831236
|
[1] |
Oil filter
|
|
| 22. |
7745900_034
|
|
Fuel filter
|
|
