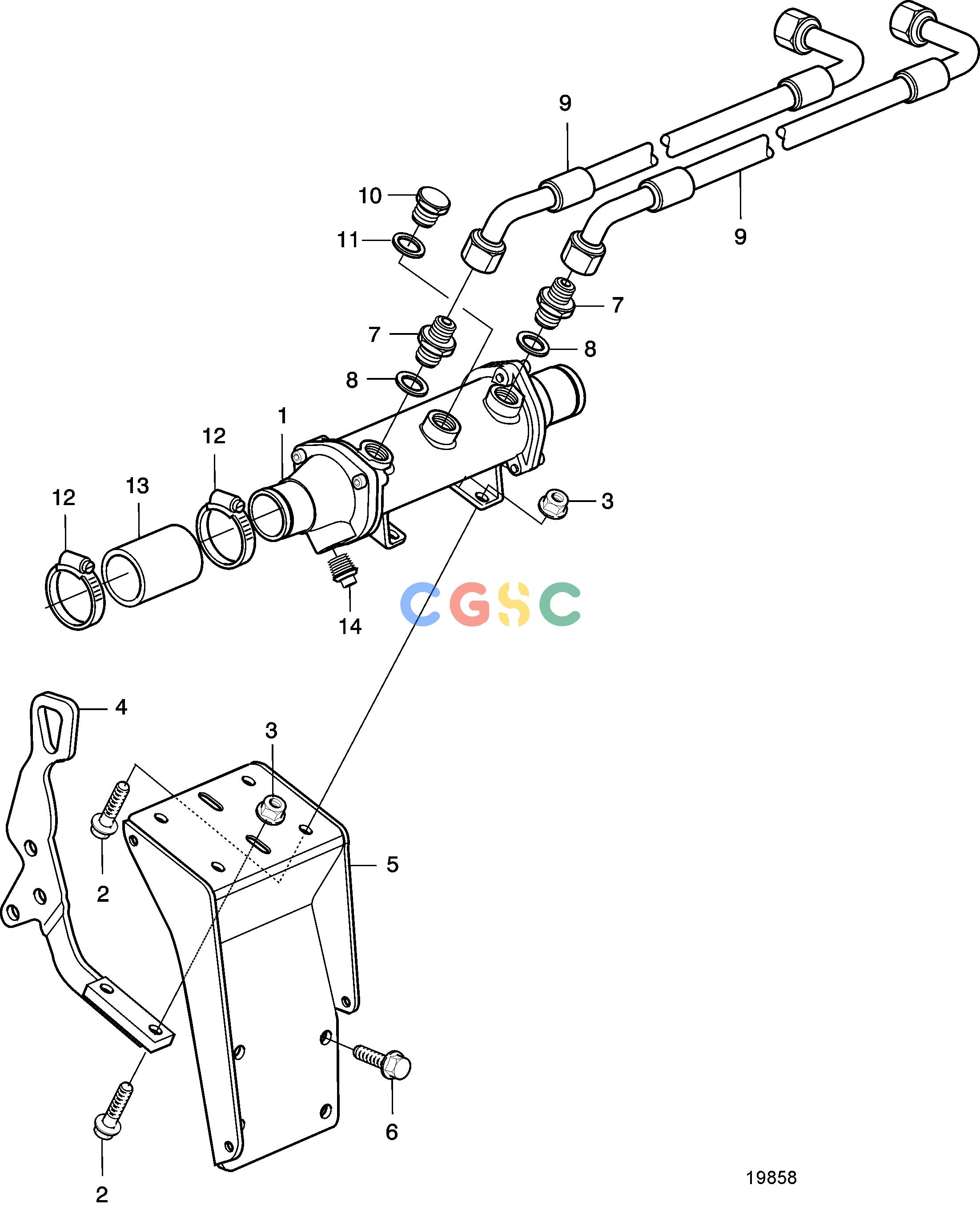

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TACooling SystemOil Cooler for ZF 45-1, ZF 220, ZF 280EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3837040
|
[1] |
Oil cooler
|
|
| 2. |
984736
|
[6] |
Flange screw
|
L=30mm
|
| 3. |
990940
|
[6] |
Flange nut
|
|
| 4. |
3837830
|
[1] |
Bracket
|
|
| 5. |
3837851
|
[1] |
Bracket
|
|
| 6. |
984815
|
[4] |
Flange screw
|
L=30mm
|
| 7. |
963948
|
[2] |
Nipple
|
|
| 8. |
11996
|
[2] |
Gasket
|
|
| 9. |
3836192
|
[2] |
Hose
|
|
| 10. |
960632
|
[1] |
Plug
|
|
| 11. |
11998
|
[1] |
Gasket
|
|
| 12. |
961671
|
[2] |
Hose clamp
|
|
| 13. |
|
|
|
|
| 14. |
838928
|
[1] |
Plug
|
|
| 14. |
838929
|
[1] |
Anode
|
|
