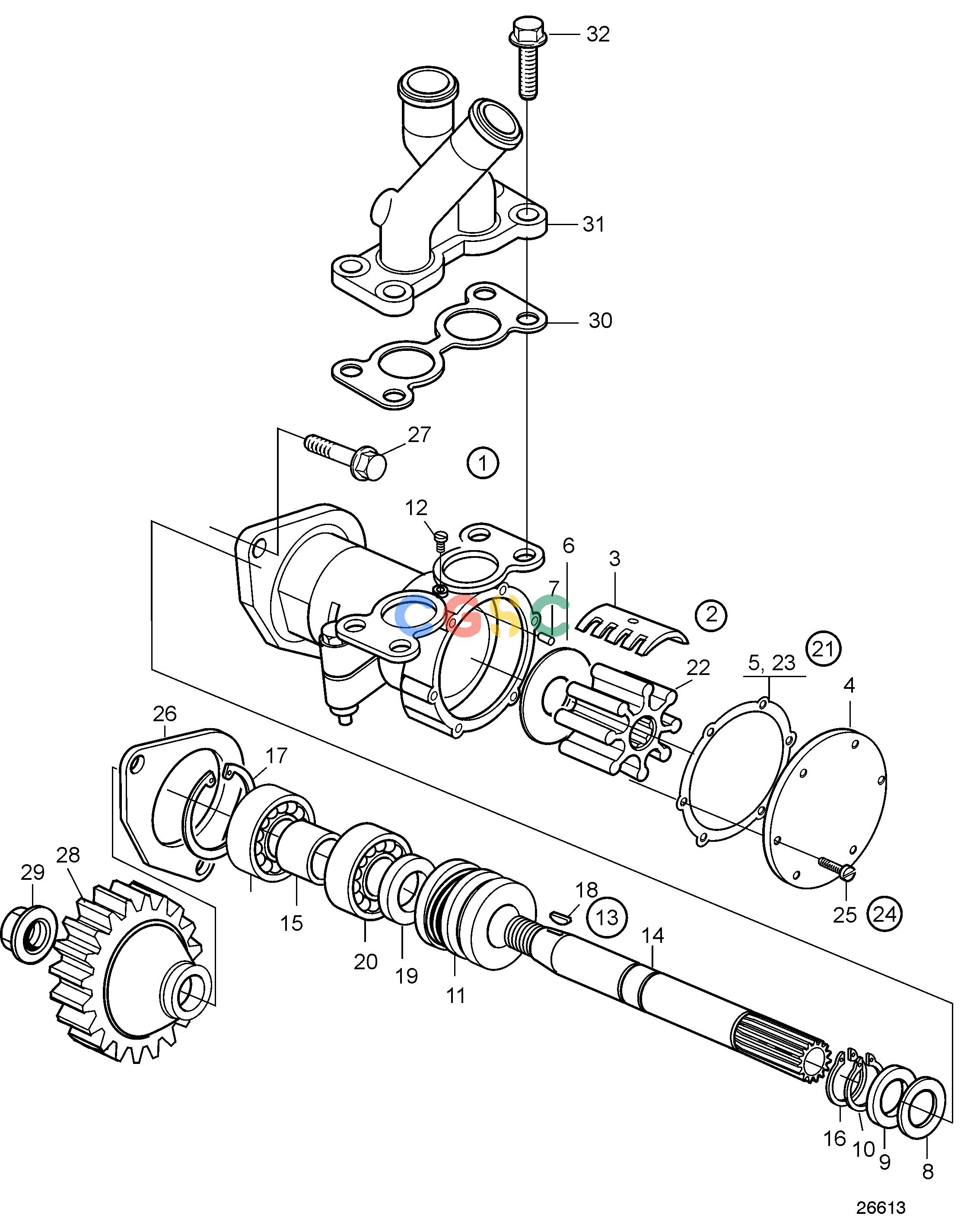

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TACooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
339 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3838288
|
[1] |
Sea water pump
|
|
| 2. |
21951394
|
[1] |
Wear kit
|
|
| 3. |
|
|
|
|
| 4. |
815573
|
[1] |
Cap
|
|
| 5. |
808275
|
[1] |
Gasket
|
|
| 6. |
826246
|
[1] |
Wear washer
|
|
| 7. |
826239
|
[1] |
Pin
|
|
| 8. |
3583988
|
[1] |
Washer
|
|
| 9. |
826238
|
[1] |
O-ring
|
|
| 10. |
809444
|
[2] |
Lock ring
|
|
| 11. |
822708
|
[1] |
Seal
|
|
| 12. |
804776
|
[1] |
Screw
|
|
| 13. |
21951459
|
[1] |
Shaft kit
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
|
| 16. |
914451
|
[1] |
Snap ring
|
|
| 17. |
914523
|
[1] |
Snap ring
|
|
| 18. |
|
|
|
|
| 19. |
3812515
|
[1] |
Seal
|
|
| 20. |
181800
|
[2] |
Ball bearing
|
|
| 21. |
3841697
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 21. |
21422647
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 21. |
21951356
|
[1] |
Impeller kit
|
|
| 22. |
|
|
|
|
| 23. |
808275
|
[1] |
Gasket
|
|
| 24. |
21951336
|
[1] |
Screw kit
|
|
| 25. |
808285
|
[6] |
Screw
|
|
| 26. |
3838321
|
[1] |
Gasket
|
|
| 27. |
959238
|
[2] |
Hex. socket screw
|
|
| 28. |
20940389
|
[1] |
Gear
|
|
| 29. |
990942
|
[1] |
Flange nut
|
|
| 30. |
3838287
|
[1] |
Gasket
|
|
| 31. |
3838286
|
[1] |
Housing
|
|
| 32. |
984735
|
[4] |
Flange screw
|
|
