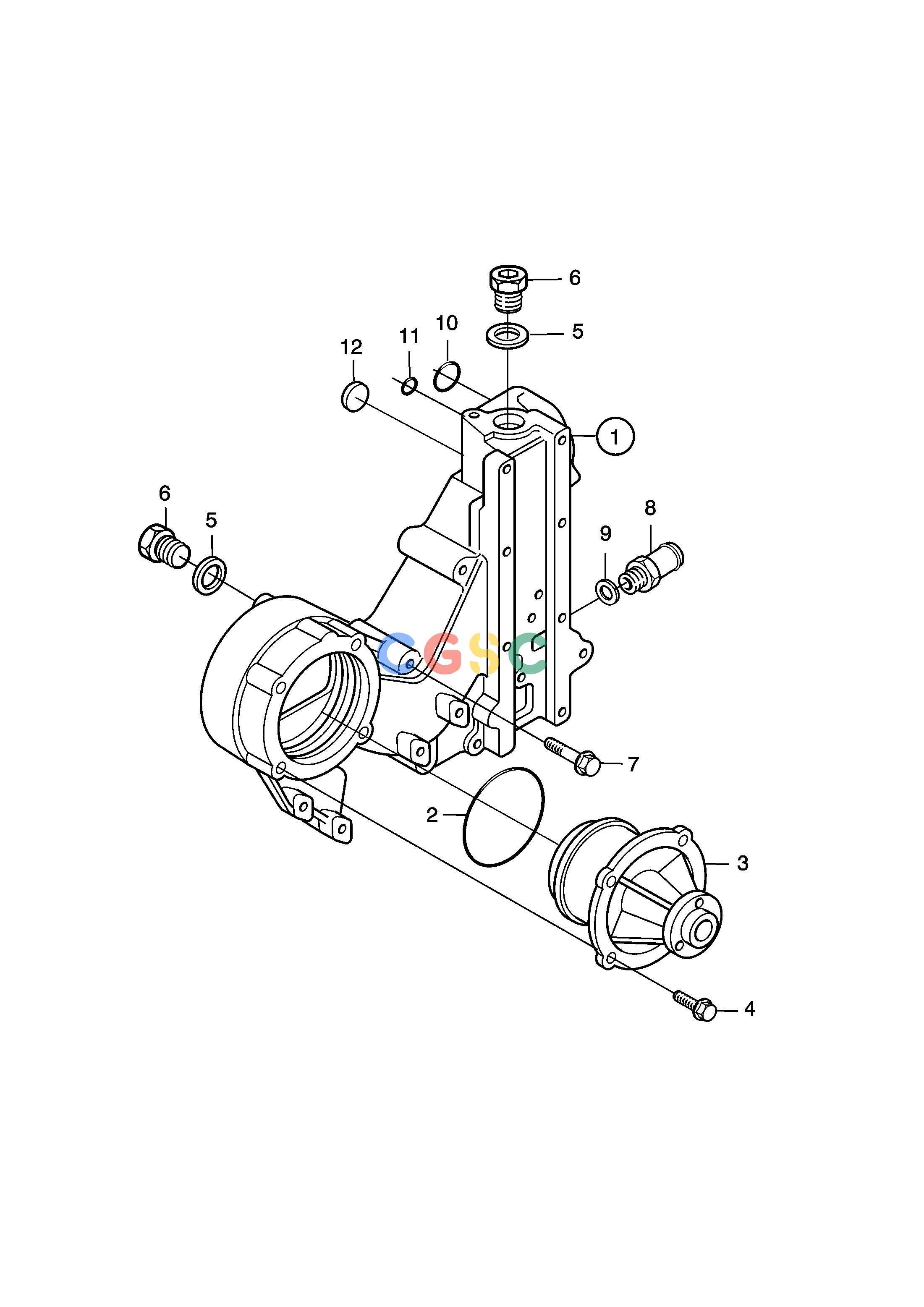

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TACooling SystemWater Pump and Bracket for FanEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
862 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
888843
|
[1] |
Pump housing
|
SN-725286
|
| 1. |
21160269
|
[1] |
Fan console
|
SN01099384-, Replaced by 21256155
|
| 1. |
21256155
|
[1] |
Fan console
|
|
| 2. |
20459005
|
[1] |
Sealing ring
|
|
| 3. |
21125771
|
[1] |
Coolant pump
|
SN-01099383
|
| 3. |
21247955
|
[1] |
Coolant pump
|
SN10644022-
|
| 4. |
984734
|
[4] |
Flange screw
|
|
| 5. |
947281
|
[2] |
Gasket
|
|
| 6. |
20405519
|
[2] |
Bleeder screw
|
|
| 7. |
984741
|
[7] |
Flange screw
|
|
| 8. |
20412313
|
[1] |
Hose connection
|
|
| 9. |
947622
|
[1] |
Gasket
|
|
| 10. |
20450737
|
[1] |
O-ring
|
|
| 11. |
20450739
|
[1] |
O-ring
|
|
| 12. |
20459009
|
[1] |
Cap
|
|
