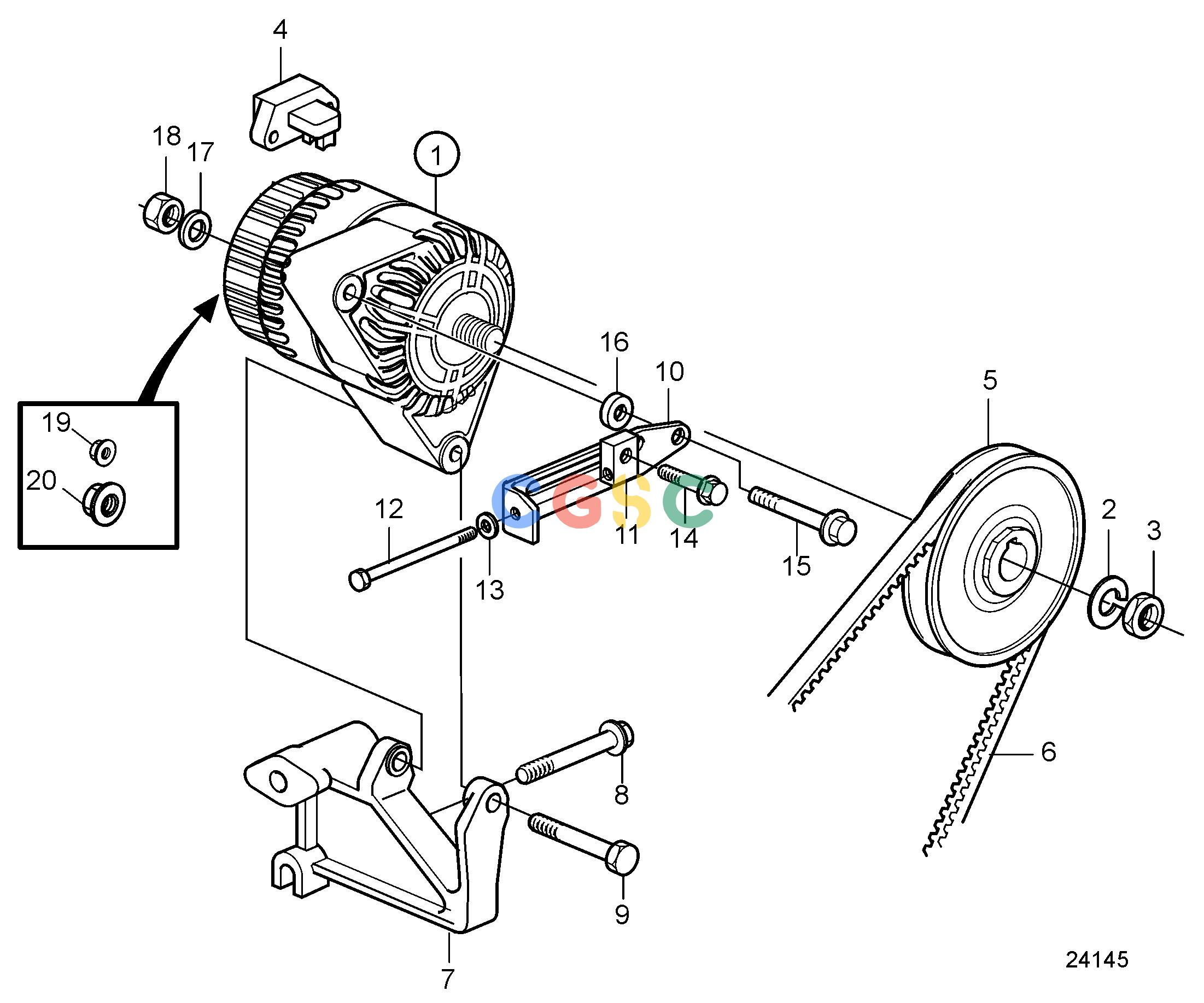

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAElectrical SystemAlternator SN1034172-, Low-Left Mounted 28V 55AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
813 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801327
|
[1] |
Alternator, exch
|
Replaced by 21616333
|
| 1. |
21299437
|
[1] |
Alternator
|
Replaced by 21616333
|
| 1. |
21616333
|
[1] |
Alternator
|
Replaced by 21967831
|
| 1. |
21967831
|
[1] |
Alternator
|
|
| 2. |
20776766
|
[1] |
Washer
|
|
| 3. |
20441521
|
[1] |
Hexagon nut
|
|
| 4. |
21299440
|
[1] |
Voltage regulator
|
|
| 5. |
20464462
|
[1] |
Pulley
|
|
| 6. |
968933
|
[1] |
V-belt
|
L=1075mm
|
| 7. |
20460411
|
[1] |
Bracket
|
|
| 8. |
973924
|
[2] |
Flange screw
|
|
| 9. |
955306
|
[1] |
Hexagon screw
|
|
| 10. |
20756555
|
[1] |
Tensioner
|
|
| 11. |
20756597
|
[1] |
Tension block
|
|
| 12. |
20516135
|
[1] |
Hexagon screw
|
|
| 13. |
955894
|
[1] |
Washer
|
|
| 14. |
984736
|
[1] |
Flange screw
|
|
| 15. |
984738
|
[1] |
Flange screw
|
|
| 16. |
807183
|
[1] |
Spacer sleeve
|
|
| 17. |
191172
|
[1] |
Washer
|
|
| 18. |
990940
|
[1] |
Flange nut
|
|
| 19. |
955779
|
[1] |
Hexagon nut
|
|
| 20. |
955781
|
[1] |
Hexagon nut
|
|
