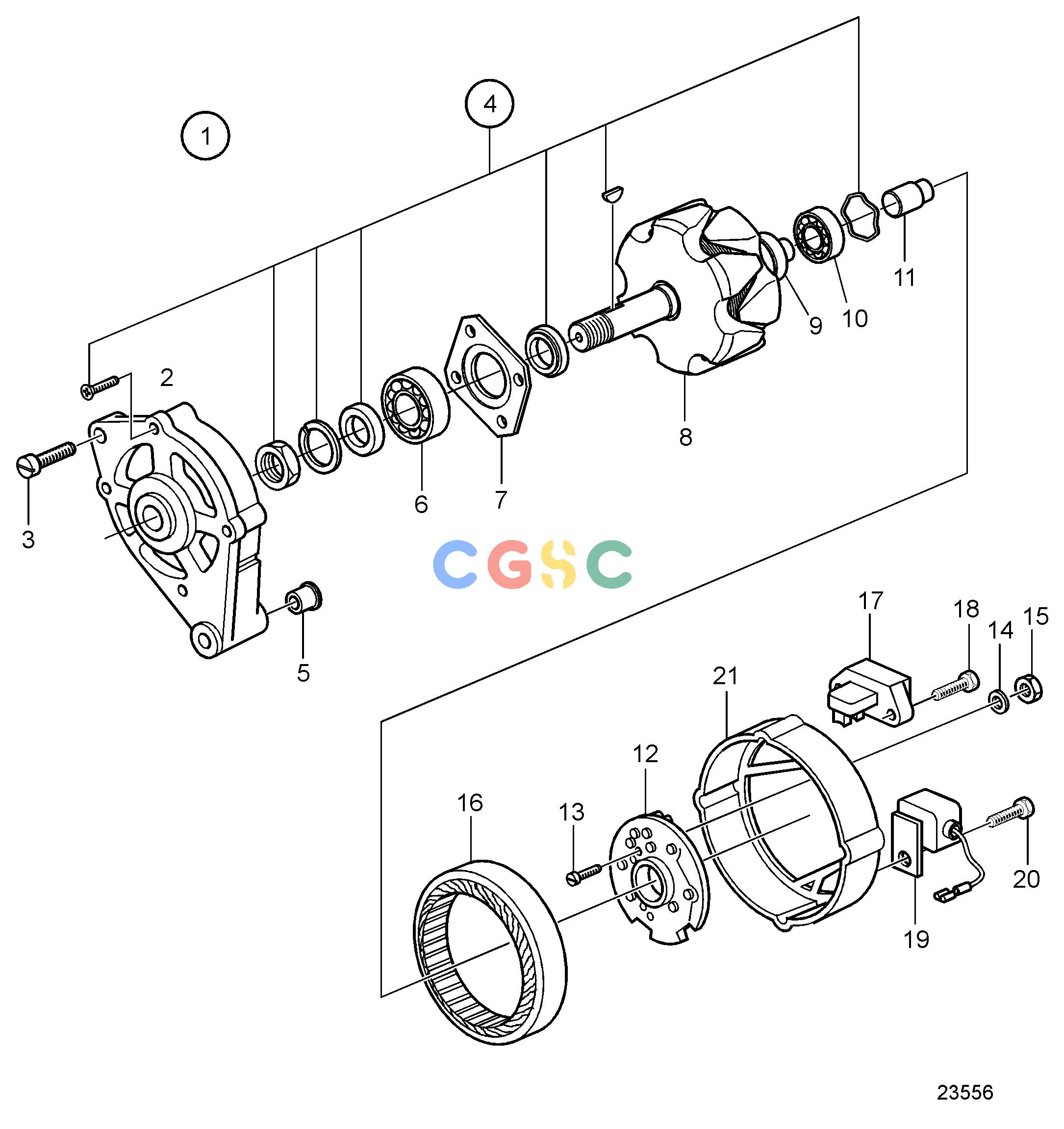

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAElectrical SystemAlternator, 14V 95A, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
535 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20460424
|
[1] |
Alternator
|
Part has a unique replacement. The new part may be used in any case. The old part may only used for
|
| 1. |
20571644
|
[1] |
Alternator
|
SN01028362-
|
| 1. |
3803882
|
[1] |
Alternator, exch
|
|
| 2. |
20460426
|
[1] |
Bearing, housing
|
|
| 3. |
20460440
|
[3] |
Screw
|
|
| 4. |
20459032
|
[1] |
Kit
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
20460431
|
[1] |
Slip ring
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
20460433
|
[1] |
Rectifier
|
|
| 13. |
|
|
|
|
| 14. |
20460442
|
[2] |
Kit
|
|
| 15. |
955780
|
[2] |
Hexagon nut
|
|
| 16. |
|
|
|
|
| 17. |
20798462
|
[1] |
Charge regulator
|
SN-010535879
|
| 17. |
21184083
|
[1] |
Voltage regulator
|
SN010535880-
|
| 18. |
20460438
|
[2] |
Screw
|
|
| 19. |
20459031
|
[1] |
Capacitor
|
|
| 20. |
20460436
|
[1] |
Screw
|
|
| 21. |
|
|
|
|
