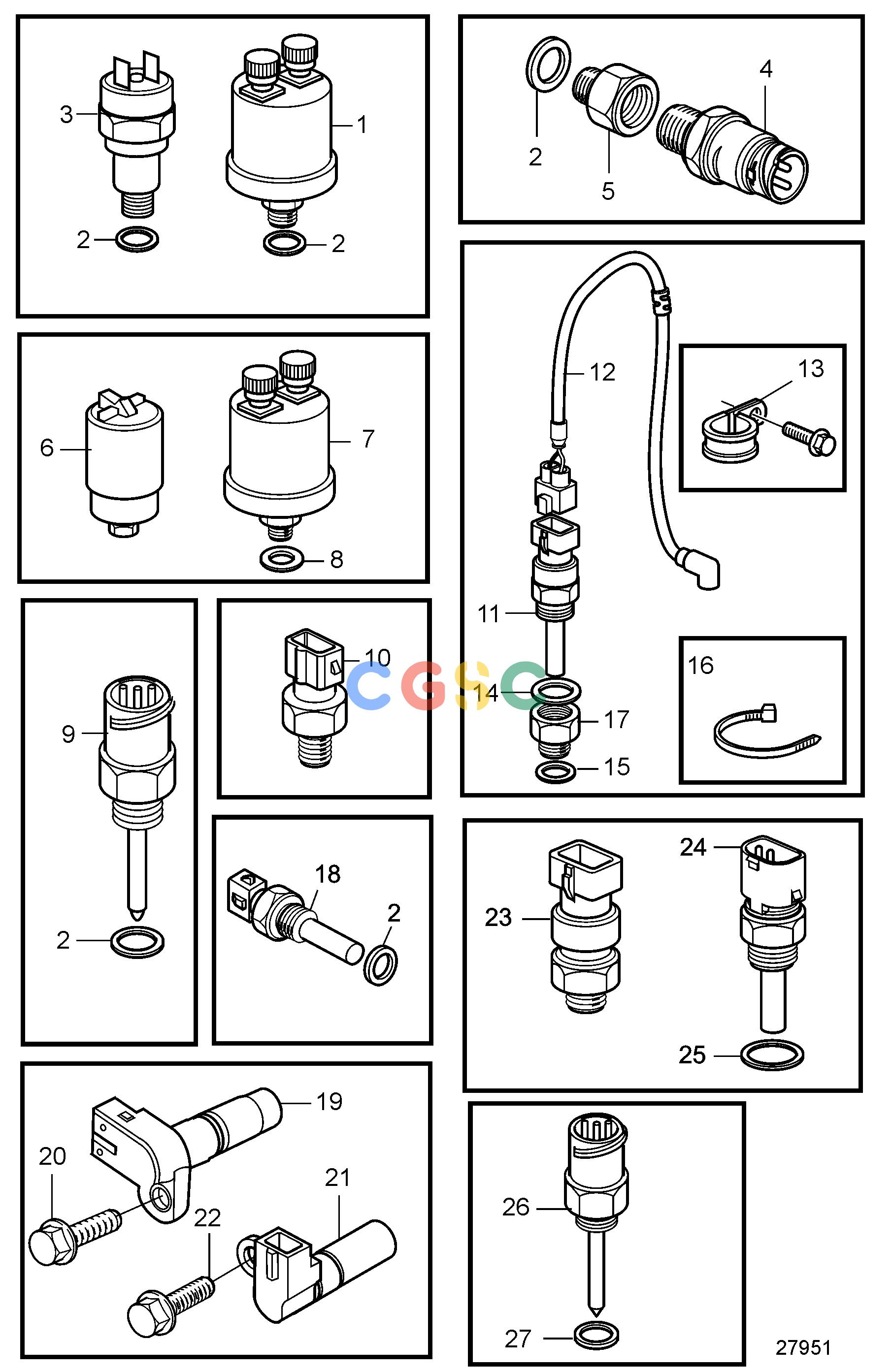

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAElectrical SystemContacts and SensorsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
554 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
888853
|
[1] |
Oil pressure sensor
|
SN-1096836
|
| 1. |
21091609
|
[1] |
Pressure sensor
|
SN1096837-
|
| 2. |
969011
|
[1] |
Gasket
|
|
| 3. |
3586736
|
[1] |
Pressure switch, oil pressure
|
|
| 4. |
21202753
|
[1] |
Pressure switch
|
|
| 5. |
3838211
|
[1] |
Adapter
|
|
| 6. |
20553463
|
[1] |
Sensor, air filter
|
|
| 7. |
866838
|
[1] |
Pressure sensor
|
Alt, 0-2bar
|
| 7. |
872196
|
[1] |
Pressure sensor
|
Alt, 0-3bar
|
| 8. |
11998
|
[1] |
Gasket
|
|
| 9. |
881965
|
[1] |
Level guard, expansion tank
|
For engine mounted heat exchanger., SN-11184143
|
| 9. |
21876480
|
[1] |
Sensor
|
For engine mounted heat exchanger., SN11184144-
|
| 10. |
3586830
|
[1] |
Temperature sensor
|
|
| 11. |
848829
|
[1] |
Thermo monitor
|
103°C, Replaced by 21510547
|
| 11. |
21510547
|
[1] |
Thermo monitor
|
110 ± 3°C
|
| 12. |
21506646
|
[1] |
Wiring harness
|
Use together with 21510547 when changing from 848829
|
| 13. |
947827
|
[2] |
Clamp
|
|
| 14. |
18822
|
[1] |
Gasket
|
|
| 15. |
969011
|
[1] |
Gasket
|
|
| 16. |
948211
|
[1] |
Cable tie
|
|
| 17. |
984466
|
[1] |
Reduction nipple
|
|
| 18. |
20513340
|
[1] |
Sensor, fuel
|
(20450685)
|
| 19. |
20459880
|
[1] |
Sensor
|
Aux, SN-01099383
|
| 19. |
20924088
|
[1] |
Sensor
|
SN01099384-, Flywheel Housing
|
| 20. |
20459227
|
[1] |
Hexagon screw
|
|
| 21. |
20459868
|
[1] |
Sensor
|
Replaced by 20511126
|
| 21. |
20511126
|
[1] |
Sensor
|
Replaced by 20964264
|
| 21. |
20964264
|
[1] |
Sensor
|
L=55,5, Flywheel Housing
|
| 22. |
967949
|
[1] |
Flange screw
|
|
| 23. |
20460353
|
[1] |
Temperature sensor
|
Outside temperature.
|
| 24. |
21073863
|
[1] |
Sensor
|
|
| 25. |
948884
|
[1] |
Gasket
|
|
| 26. |
21708508
|
[1] |
Switch
|
|
| 27. |
969011
|
[1] |
Gasket
|
|
