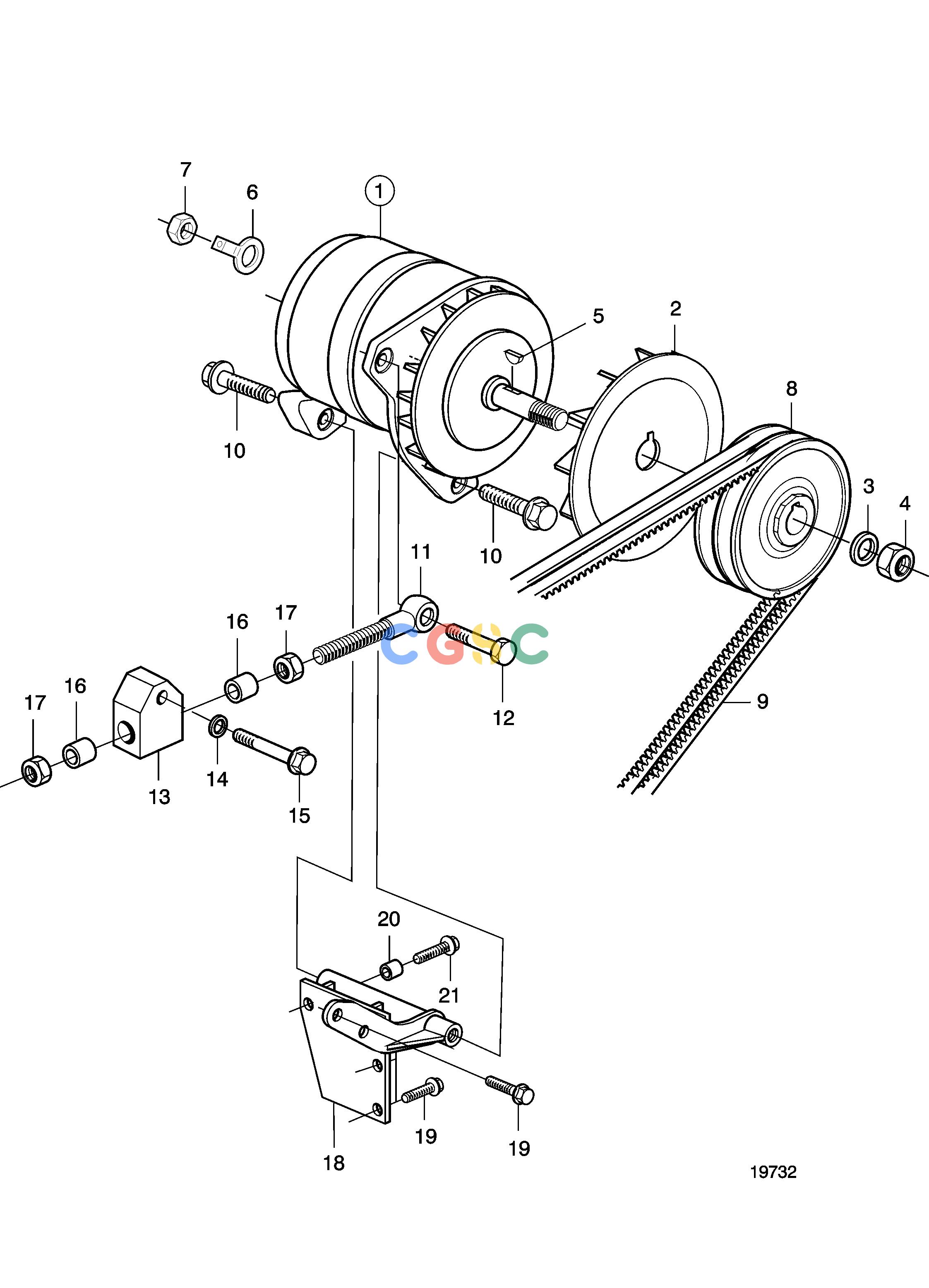

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAElectrical SystemAlternator, Low-Left Mounted 28V 140AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
440 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20747520
|
[1] |
Alternator, 28V 140A
|
(20460366)
|
| 1. |
3803878
|
[1] |
Alternator, exch
|
|
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
20460368
|
[1] |
Nut
|
|
| 5. |
|
|
|
|
| 6. |
20460423
|
[1] |
Plug
|
|
| 7. |
955781
|
[1] |
Hexagon nut
|
|
| 8. |
20460359
|
[1] |
Pulley
|
|
| 9. |
966702
|
[1] |
V-belt
|
Delivered as a kit., L=1375mm
|
| 10. |
20460864
|
[2] |
Screw
|
L=50mm
|
| 11. |
3586487
|
[1] |
Eye bolt
|
|
| 12. |
3586563
|
[1] |
Hexagon screw
|
L=35mm
|
| 13. |
20798005
|
[1] |
Clamp
|
|
| 14. |
20405802
|
[2] |
Washer
|
|
| 15. |
20412324
|
[1] |
Flange screw
|
L=35mm
|
| 16. |
3586534
|
[2] |
Bushing
|
|
| 17. |
3586544
|
[2] |
Nut
|
|
| 18. |
3586484
|
[1] |
Bracket
|
L=170mm
|
| 19. |
984735
|
[5] |
Flange screw
|
L=25mm
|
| 20. |
3586564
|
[1] |
Bushing
|
|
| 21. |
973924
|
[1] |
Flange screw
|
|
