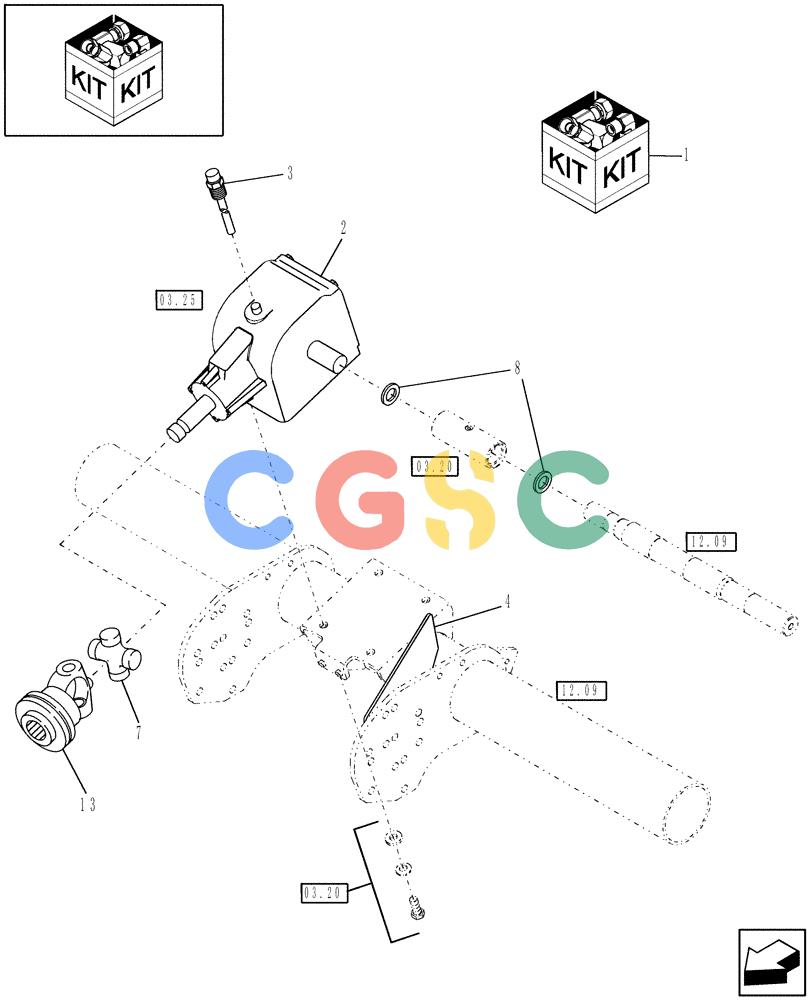

凯斯零件查询(RBX562) - CASE IH ROUND BALER (9/02-7/05) (18.90) - GEARBOX CONVERSION KIT, 540 TO 1000 RPM Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86643867
|
[1] |
DIA KIT, HARVESTER
|
PA
Gearbox Conversion, 540 RPM to 1000 RPM, Includes: Installation Instructions Superseded by part number: 87049205, 86705060, 86637370, 86979188, 86637820, 86626271, 87344585, 87349347
|
| 2. |
87025453
|
[1] |
GEARBOX
|
PA
1000 RPM Superseded by part number: 87344585
|
| 2. |
87344585
|
[1] |
GEARBOX
|
PA
1000 RPM
|
| . . |
87344585R
|
[1] |
REMAN-PTO GEARBOX A.
|
PA
RBX562,
|
| . . |
87344585C
|
[1] |
CORE-PTO GEARBOX A.
|
PA
Return Number
|
| 3. |
86626271
|
[1] |
DIPSTICK
|
NH
|
| 4. |
86637820
|
[1] |
PLATE
|
PA
Fixture
|
| 7. |
86979188
|
[1] |
SPIDER,30.2mm Cap Dia, 92mm L, Grease-able
|
PA
|
| 8. |
86637370
|
[1] |
SEAL,40mm ID x 52mm OD x 7mm Thk
|
NH
|
| 12. |
87049205
|
[1] |
WARNING DECAL
|
BEL
1000 RPM, English
|
| 12. |
87053157
|
[1] |
DECAL
|
BEL
WARNING, 1000 RPM, French
|
| 13. |
86705060
|
[1] |
YOKE
|
GI
1000 RPM, 1-3/8" - 21 Splines
|
