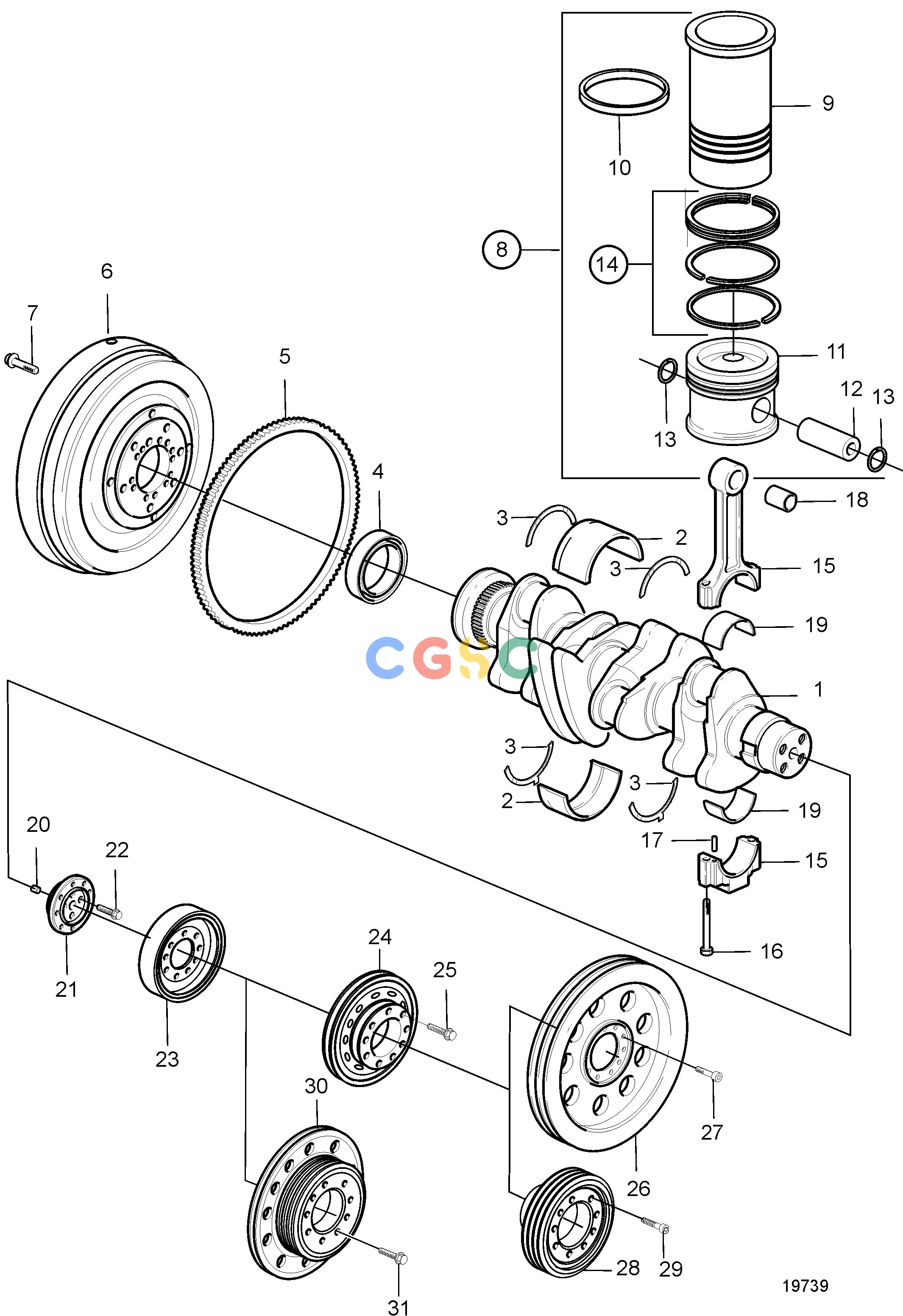

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAEngineCrank MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
397 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20405540
|
[1] |
Crankshaft
|
SN-01098272
|
| 1. |
20900811
|
[1] |
Crankshaft
|
SN01098273-10701723
|
| 1. |
21204112
|
[1] |
Crankshaft
|
SN-10702367, Classifiable
|
| 1. |
21273414
|
[1] |
Crankshaft
|
SN10702368-, Classifiable
|
| 2. |
21141948
|
[5] |
Main bearing
|
Std, SN10594935-
|
| 2. |
20405529
|
[5] |
Main bearing
|
U.S=0,25mm, SN-10594934
|
| 2. |
21234191
|
[5] |
Main bearing
|
U.S=0,25mm, SN10594935-
|
| 2. |
20405541
|
[5] |
Main bearing
|
U.S=0.50mm
|
| 3. |
20405899
|
[2] |
Thrust washer kit
|
Std
|
| 3. |
11700315
|
[2] |
Safety washer
|
O.S=0.20mm (3.1mm)
|
| 4. |
20412286
|
[1] |
Lip seal, crankshaft seal
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
877337
|
[4] |
Cylinder liner kit
|
Stage 1 and Tier 1
|
| 8. |
3843536
|
[4] |
Cylinder liner kit
|
Stage 2 and Tier 2
|
| 9. |
|
|
|
|
| 10. |
20412762
|
[8] |
O-ring
|
|
| 11. |
|
|
|
|
| 12. |
20405577
|
[4] |
Gudgeon pin
|
|
| 13. |
20405576
|
[8] |
Snap ring
|
|
| 14. |
21304975
|
[4] |
Piston ring
|
Stage 1 and Tier 1
|
| 14. |
20450775
|
[4] |
Piston ring
|
Stage 2 and Tier 2
|
| 15. |
20798163
|
[4] |
Connecting rod
|
|
| 16. |
11700326
|
[8] |
Flange screw
|
|
| 17. |
20459134
|
[4] |
Grooved pin
|
|
| 18. |
11700325
|
[4] |
Bushing
|
|
| 19. |
20565150
|
[4] |
Bearing
|
Std
|
| 19. |
20717211
|
[4] |
Bearing
|
U.S=0.25mm
|
| 19. |
20565188
|
[4] |
Bearing
|
U.S=0.50mm
|
| 20. |
20405634
|
[1] |
Spring pin
|
18X24
|
| 21. |
20450843
|
[1] |
Flange
|
|
| 22. |
20405724
|
[4] |
Six point screw
|
|
| 23. |
20459925
|
[1] |
Vibration damper
|
D=205mm
|
| 24. |
888713
|
[1] |
Gear pulley
|
Pully for circulation pump & fuel pump, Pully for generator low left 28V 55A / 14V 95
|
| 25. |
888712
|
[9] |
Hexagon screw
|
|
| 26. |
3588090
|
[1] |
Pulley
|
Pully for generator low left 28V 140A
|
| 27. |
3588092
|
[9] |
Hex. socket screw
|
L=70mm
|
| 28. |
3586607
|
[1] |
V-belt pulley
|
|
| 29. |
3586606
|
[9] |
Hexagon screw
|
L=100mm
|
| 30. |
20555448
|
[1] |
Pulley
|
For fan drive without fan, ratio 1:10, 2 grooves, SN-10851816
|
| 30. |
21425462
|
[1] |
Pulley
|
For fan drive without fan, ratio 1:10, 2 grooves, SN10851817-11415146
|
| 30. |
22296064
|
[1] |
Pulley
|
For fan drive without fan, ratio 1:10, 2 grooves, SN11415147-
|
| 31. |
20450849
|
[9] |
Hexagon screw
|
|
