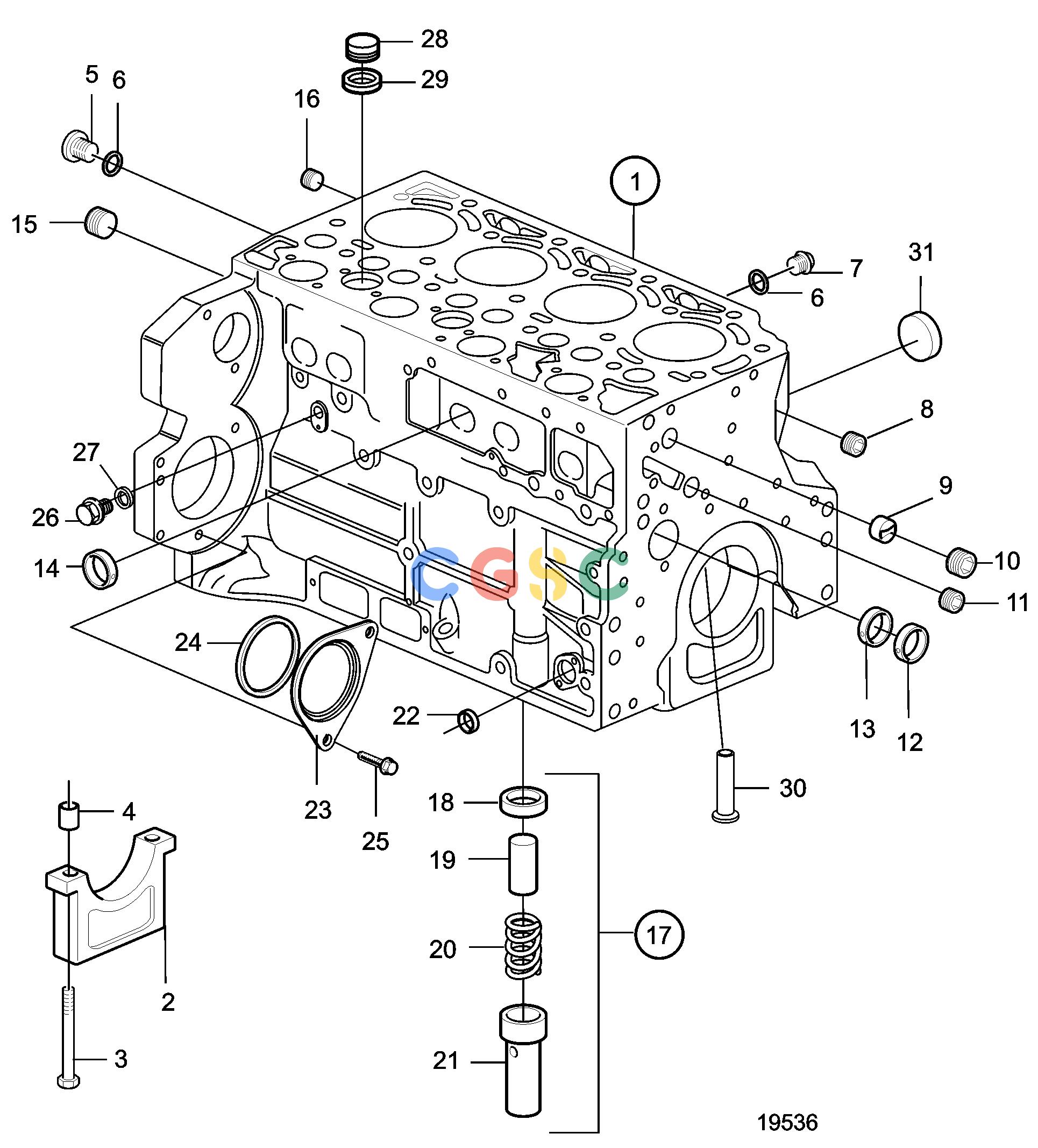

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAEngineCylinder BlockEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
295 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20405979
|
[1] |
Crankcase
|
SN-01068258
|
| 1. |
20555444
|
[1] |
Crankcase
|
Stage 1 and Tier 1, Std, SN01068259-01077756, Delivered with cylinder liner., (20405979)
|
| 1. |
20555442
|
[1] |
Crankcase
|
Stage 2 and Tier 2, Std, SN01077757-
|
| 1. |
21251563
|
[1] |
Cylinder block
|
Stage 2 and Tier 2, Classifiable, Delivered with cylinder liner.
|
| 2. |
|
|
|
|
| 3. |
20405583
|
[10] |
Flange screw
|
|
| 4. |
11700278
|
[10] |
Bushing
|
|
| 5. |
945065
|
[2] |
Plug
|
M14
|
| 6. |
969011
|
[4] |
Gasket
|
|
| 7. |
20405716
|
[1] |
Plug
|
M14
|
| 8. |
20508600
|
[1] |
Plug
|
M14
|
| 9. |
20405584
|
[1] |
Guide sleeve
|
|
| 10. |
20405717
|
[1] |
Plug
|
M30
|
| 11. |
20405719
|
[1] |
Plug
|
M22
|
| 12. |
11700284
|
[6] |
Bushing
|
|
| 13. |
11700285
|
[1] |
Bushing
|
|
| 14. |
20405721
|
[6] |
Cap plug
|
A45
|
| 15. |
20405718
|
[1] |
Plug
|
M14
|
| 16. |
20405722
|
[1] |
Plug
|
M22
|
| 17. |
11700271
|
[1] |
Delivery valve
|
|
| 18. |
20405904
|
[1] |
Ring
|
|
| 19. |
20405936
|
[1] |
Valve
|
|
| 20. |
20405896
|
[1] |
Compression spring
|
|
| 21. |
20405937
|
[1] |
Sleeve
|
|
| 22. |
20412745
|
[1] |
Cap plug
|
A36
|
| 23. |
24426064
|
[1] |
Cover
|
|
| 24. |
20412359
|
[1] |
O-ring
|
|
| 25. |
975108
|
[2] |
Flange screw
|
L=20mm
|
| 26. |
20405716
|
[1] |
Plug
|
M14
|
| 27. |
969011
|
[1] |
Gasket
|
|
| 28. |
20758137
|
[1] |
Plug
|
Without stop solenoid.
|
| 29. |
20405728
|
[1] |
Sealing ring
|
|
| 30. |
20405561
|
[4] |
Jet, piston cooling
|
|
| 31. |
20405986
|
[1] |
Cap plug
|
|
