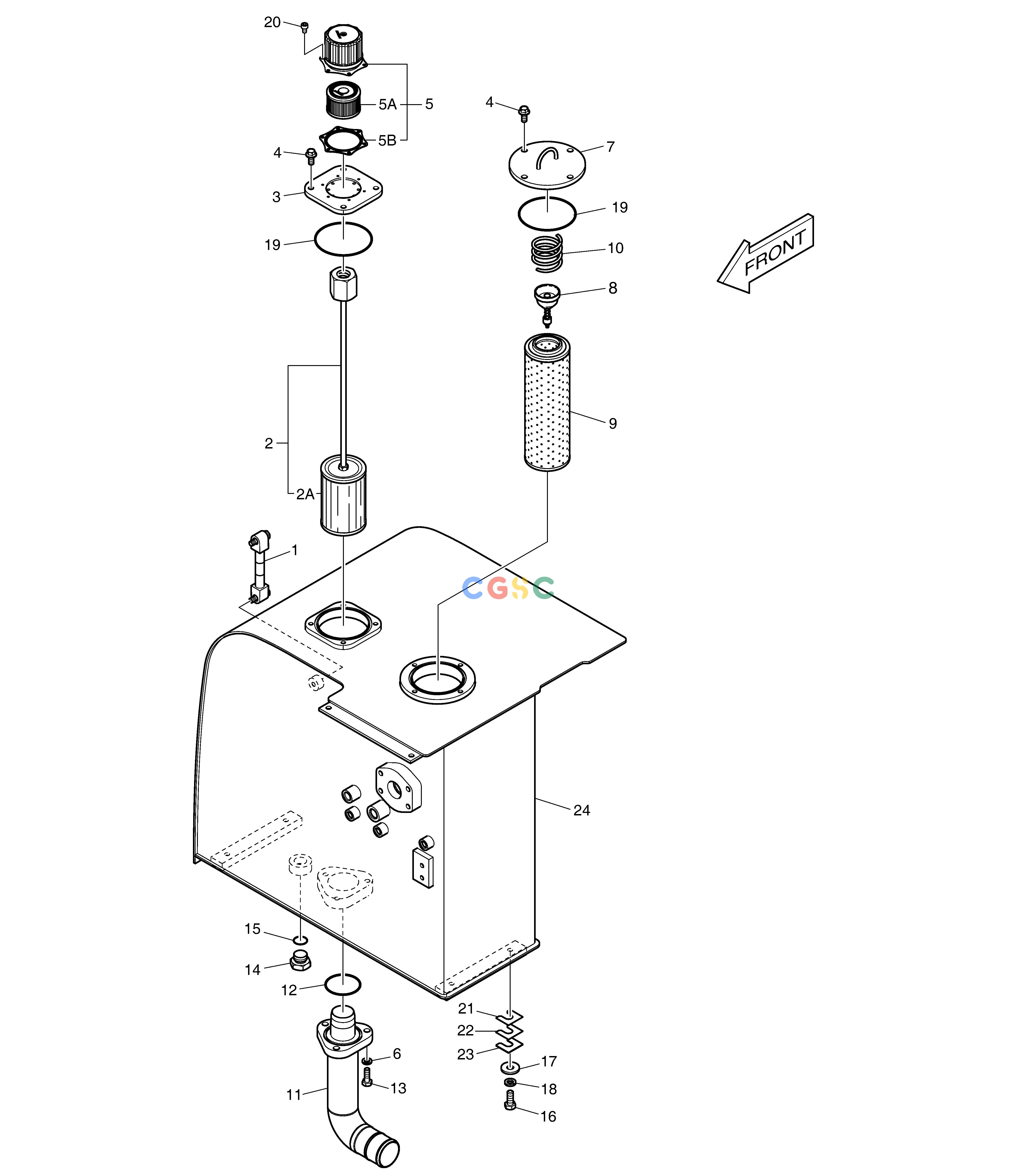

斗山零件查询OIL TANK DX55W Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1025025C
|
[-] |
OIL TANK ASS'Y
|
|
| -. |
450105-00073
|
[-] |
|
|
| 1. |
119-00027A
|
[1] |
GAUGE;LEVEL
|
|
| 10. |
2129-1225
|
[1] |
SPRING
|
|
| 11. |
K1027645
|
[1] |
PIPE;SUCTION
|
420218-00516
|
| 11. |
420218-00516
|
[1] |
|
|
| 12. |
2180-1026D31
|
[1] |
O-RING
|
|
| 13. |
S0558153
|
[3] |
BOLT
|
|
| 14. |
2181-1950D15
|
[1] |
PLUG
|
DS2901011
|
| 14. |
DS2901011
|
[1] |
PLUG
|
|
| 15. |
S8000231
|
[1] |
O-RING
|
|
| 16. |
S0515266
|
[4] |
BOLT
|
|
| 17. |
2114-1058D54
|
[4] |
WASHER
|
|
| 18. |
S5102703
|
[4] |
WASHER
|
|
| 19. |
S8011101
|
[2] |
O-RING
|
|
| 2. |
K1027763
|
[1] |
FILTER;SUCTION
|
400408-00056
|
| 2. |
400408-00056
|
[1] |
|
|
| 20. |
2120-2166D41
|
[6] |
BOLT
|
|
| 21. |
2114-1802
|
[4] |
SHIM
|
|
| 22. |
2114-1803
|
[4] |
SHIM PL0.6
|
|
| 23. |
2114-1804
|
[4] |
SHIM
|
|
| 24. |
K1026179B
|
[1] |
TANK;OIL
|
K1026179C
|
| 24. |
K1026179C
|
[1] |
TANK;OIL
|
450105-00154
|
| 24. |
450105-00154
|
[1] |
|
450105-00154A
|
| 24. |
450105-00154A
|
[1] |
|
|
| 2A. |
2423-6005
|
[1] |
STRAINER;SUCTION
|
|
| 2A. |
400411-00091
|
[1] |
|
|
| 3. |
473-00041
|
[1] |
COVER;TANK
|
|
| 4. |
K1007957
|
[8] |
. BOLT;SET
|
|
| 5. |
K1037883
|
[1] |
BREATHER;AIR
|
K1055553
|
| 5. |
K1055553
|
[1] |
BREATHER,AIR
|
|
| 5A. |
K1029257
|
[1] |
ELEMENT;AIR BREATHER
|
|
| 5B. |
K9005662
|
[1] |
. GASKET
|
|
| 6. |
S5102603
|
[3] |
. WASHER
|
|
| 7. |
473-00037
|
[1] |
COVER;TANK
|
|
| 8. |
2420-6090
|
[1] |
VALVE;BYPASS
|
410128-00029
|
| 8. |
410128-00029
|
[1] |
VALVE,BYPASS
|
|
| 9. |
2474-1003A
|
[1] |
FILTER;RETURN
|
|
