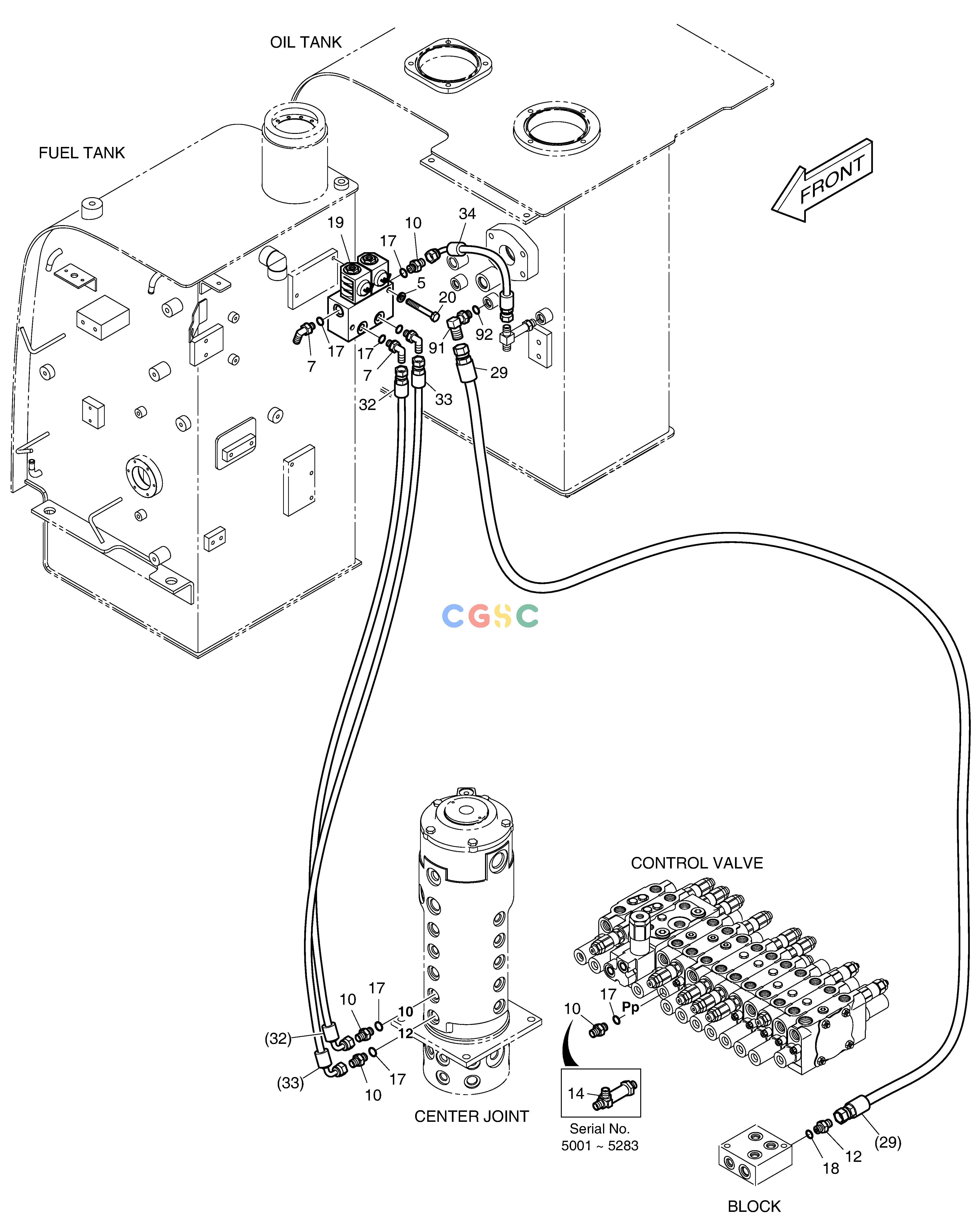

斗山零件查询PILOT PIPING(1) DX55W Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
317 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01152
|
[-] |
|
|
| -. |
K1036173H
|
[-] |
PILOT PIPING
|
|
| 10. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 10. |
2181-1126D14
|
[4] |
ADAPTER
|
|
| 12. |
2181-1126D45
|
[1] |
ADAPTER
|
|
| 14. |
2181-1951D46
|
[1] |
TEE
|
|
| 17. |
S8000111
|
[7] |
O-RING
|
|
| 18. |
S8000141
|
[1] |
O-RING
|
|
| 19. |
K1036711
|
[1] |
VALVE;SOLENOID
|
|
| 20. |
S0556566
|
[2] |
BOLT
|
|
| 29. |
DS2094278
|
[1] |
HOSE
|
|
| 32. |
DS2093058
|
[1] |
HOSE
|
|
| 33. |
DS2093055
|
[1] |
HOSE
|
|
| 34. |
DS2093543
|
[1] |
HOSE
|
|
| 5. |
S5102503
|
[2] |
. WASHER
|
|
| 7. |
2181-1702D4
|
[3] |
ELBOW
|
|
| 91. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 92. |
S8000111
|
[1] |
O-RING
|
|
