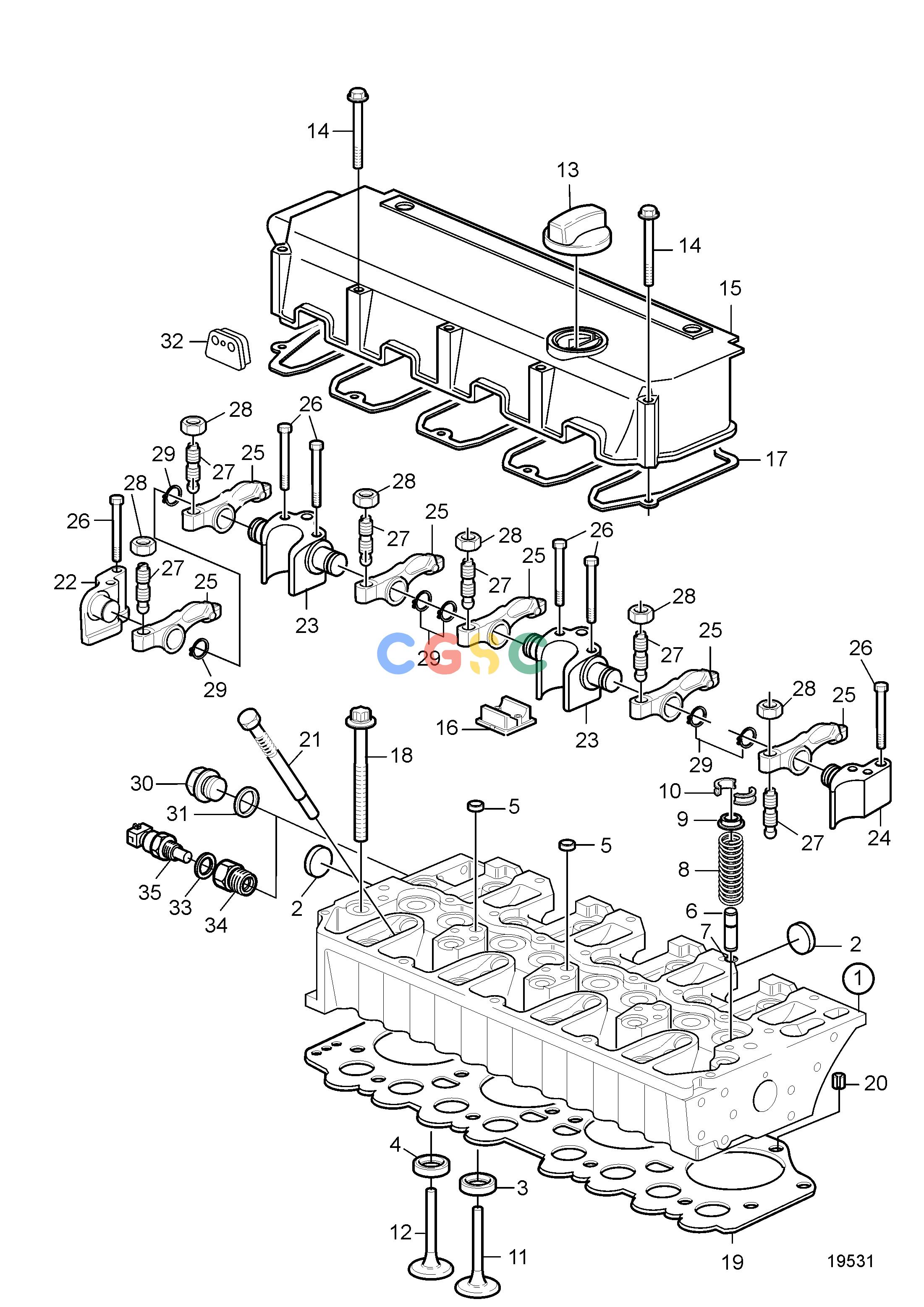

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
996 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803988
|
[1] |
Cylinder head
|
(20405500)
|
| 2. |
20412745
|
[3] |
Cap plug
|
|
| 3. |
20459962
|
[4] |
Valve seat, intake
|
|
| 4. |
20459963
|
[4] |
Valve seat, exhaust
|
|
| 5. |
20412733
|
[3] |
Cap plug
|
|
| 6. |
20405897
|
[8] |
Valve guide
|
Replaced by 21344665.
|
| 7. |
976013
|
[8] |
O-ring
|
|
| 8. |
11700347
|
[8] |
Compression spring
|
|
| 9. |
11700346
|
[8] |
Valve spring washer
|
|
| 10. |
11700345
|
[16] |
Collet
|
|
| 11. |
20714469
|
[4] |
Inlet valve, intake
|
|
| 12. |
20565912
|
[4] |
Exhaust valve, exhaust
|
|
| 13. |
20412589
|
[1] |
Filler cap
|
|
| 14. |
20412601
|
[9] |
Flange screw
|
|
| 15. |
20412587
|
[1] |
Valve cover
|
When replacing the valve cover gasket is only earlier prod. in combination with earlier prod. valve
|
| 15. |
20725337
|
[1] |
Valve cover
|
Metal gasket only for valve cover: 20725337, SN08180878-
|
| 16. |
20412590
|
[1] |
Cap
|
|
| 17. |
20412588
|
[1] |
Plane gasket
|
When replacing the valve cover gasket is only earlier prod. in combination with earlier prod. valve
|
| 17. |
20725315
|
[1] |
Gasket
|
Metal gasket only for valve cover: 20725337, SN08180878-
|
| 18. |
11700334
|
[18] |
Six point screw
|
|
| 19. |
11700335
|
[1] |
Cylinder head gasket
|
TH=1,54mm, One dot
|
| 19. |
11700336
|
[1] |
Cylinder head gasket
|
TH=1,64mm, Two dots
|
| 19. |
11700337
|
[1] |
Cylinder head gasket
|
TH=1,74mm, Three dots
|
| 20. |
20405521
|
[2] |
Spring pin
|
|
| 21. |
20405895
|
[4] |
Plug
|
|
| 22. |
11700369
|
[1] |
Bracket
|
|
| 23. |
11700368
|
[3] |
Bracket
|
|
| 24. |
11700367
|
[1] |
Bracket
|
|
| 25. |
11700370
|
[8] |
Rocker arm
|
|
| 26. |
11700374
|
[10] |
Screw
|
|
| 27. |
20405524
|
[8] |
Adjusting screw
|
|
| 28. |
11700373
|
[8] |
Hexagon nut
|
|
| 29. |
945495
|
[8] |
Snap ring
|
|
| 30. |
20464451
|
[1] |
Plug
|
|
| 31. |
947628
|
[1] |
Gasket
|
|
| 32. |
888770
|
[4] |
Sealing ring
|
|
| 33. |
993784
|
[1] |
Gasket
|
|
| 34. |
3587775
|
[1] |
Adapter
|
|
| 35. |
7745900_148
|
|
thermo monitor
|
|
