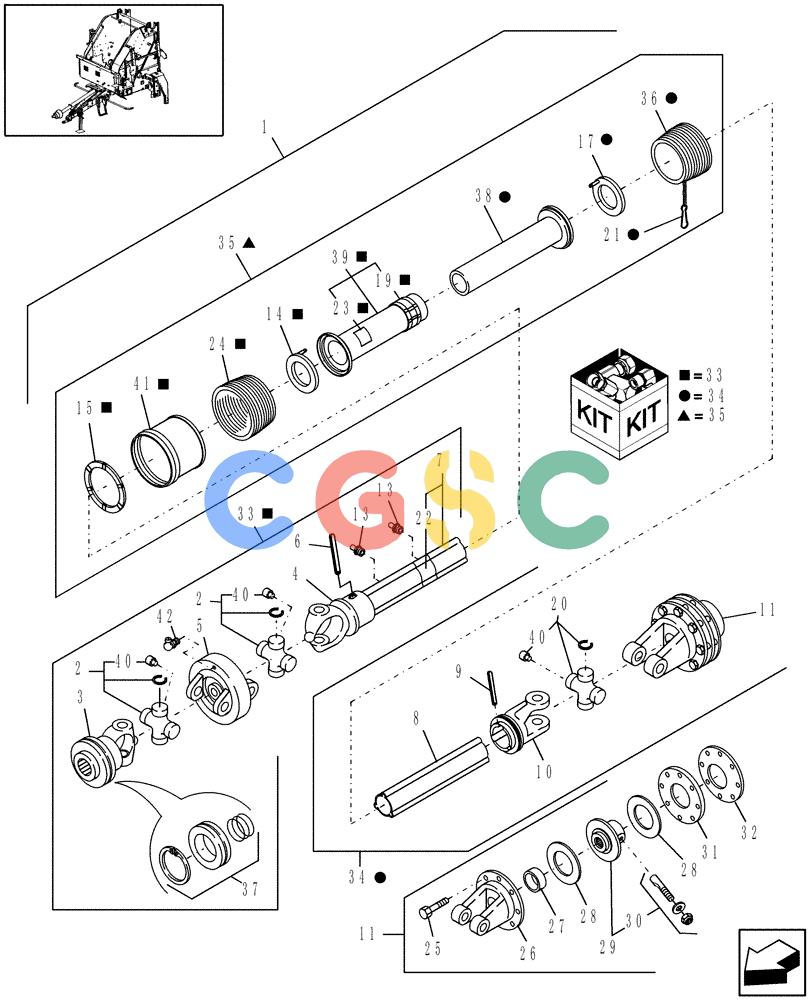

凯斯零件查询(RBX563) - CASE IH ROUND BALER (9/05-12/06) (01.11) - POWER TAKE OFF, 540 RPM, SLIP CLUTCH, NORTH AMERICA, P.I.N. Y6N016414 & AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
446 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87516693
|
[1] |
PTO
|
BEL
540RPM, Slip Clutch
|
| 2. |
87517823
|
[1] |
BEARING ASSY
|
BEL
|
| 3. |
87517822
|
[1] |
YOKE
|
BEL
1-3/8", Standard
|
| 3. |
87675559
|
[1] |
YOKE
|
NH
1-3/4", Optional
|
| 4. |
87517824
|
[1] |
YOKE
|
BEL
Front
|
| 5. |
87517825
|
[1] |
YOKE
|
BEL
|
| 6. |
87517826
|
[1] |
ROLL PIN,10.5mm OD x 95mm L
|
BEL
|
| 7. |
87517827
|
[1] |
OUTER SHIELD
|
BEL
|
| 8. |
87517828
|
[1] |
INNER SHIELD
|
BEL
Superseded by part number: 87484368
|
| 9. |
84036368
|
[1] |
ROLL PIN
|
ZED
|
| 10. |
87517829
|
[1] |
YOKE
|
BEL
|
| 11. |
87517830
|
[1] |
CLUTCH
|
BEL
|
| 12. |
PL
|
[2] |
PROCURE LOCALLY
|
BAS
Screw, Used with Ref. 19
|
| 13. |
87012758
|
[2] |
LUBE NIPPLE
|
PA
LUBRICATOR Superseded by part number: 84036369
|
| 14. |
87517831
|
[1] |
BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm
|
BEL
|
| 15. |
87517832
|
[1] |
BEARING COVER,128.4 mm ID x 187 mm OD x 11 mm
|
BEL
Includes: Clip Superseded by part number: 87587199
|
| 17. |
86979196
|
[1] |
BEARING,86mm ID x 132mm OD x 12mm H
|
PA
|
| 18. |
NSS
|
[6] |
NOT SOLD SEPARAT
|
CON
Washer, Used with Ref. 16
|
| 19. |
87517838
|
[1] |
COLLAR ASSY.
|
BEL
|
| 20. |
87018244
|
[1] |
CROSS
|
RAC
Superseded by part number: 84355352
|
| 21. |
86979198
|
[1] |
CHAIN,229mm L
|
PA
Safety
|
| 22. |
849472
|
[1] |
DANGER DECAL
|
NH
English
|
| 22. |
849483
|
[1] |
DANGER DECAL
|
NH
French
|
| 23. |
849471
|
[1] |
DANGER DECAL
|
NH
English
|
| 23. |
849482
|
[1] |
DANGER DECAL
|
NH
French
|
| 25. |
87012735
|
[8] |
KIT
|
PA
Bolt
|
| 26. |
86979201
|
[1] |
YOKE
|
PA
|
| 27. |
86984909
|
[1] |
BUSHING
|
EML
Superseded by part number: 84026575
|
| 28. |
84011442
|
[2] |
DISC
|
ZED
Superseded by part number: 86517364
|
| 29. |
86625864
|
[1] |
HUB
|
NH
|
| 30. |
86625865
|
[1] |
KIT
|
NH
Tapered
|
| 31. |
87517773
|
[1] |
THRUST PLATE
|
BEL
|
| 32. |
87517766
|
[1] |
BELLEVILLE SPRING
|
BEL
|
| 33. |
87517840
|
[1] |
FRONT PTO ASSY
|
BEL
|
| 34. |
87517841
|
[1] |
REAR PTO ASSY
|
BEL
|
| 35. |
87517842
|
[1] |
REPAIR KIT
|
BEL
|
| 37. |
87018800
|
[1] |
KIT
|
PA
|
| 40. |
321204
|
[4] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 42. |
933205R91
|
[1] |
LUBE NIPPLE,90 Degree, M8 x 1.25
|
IH
|
