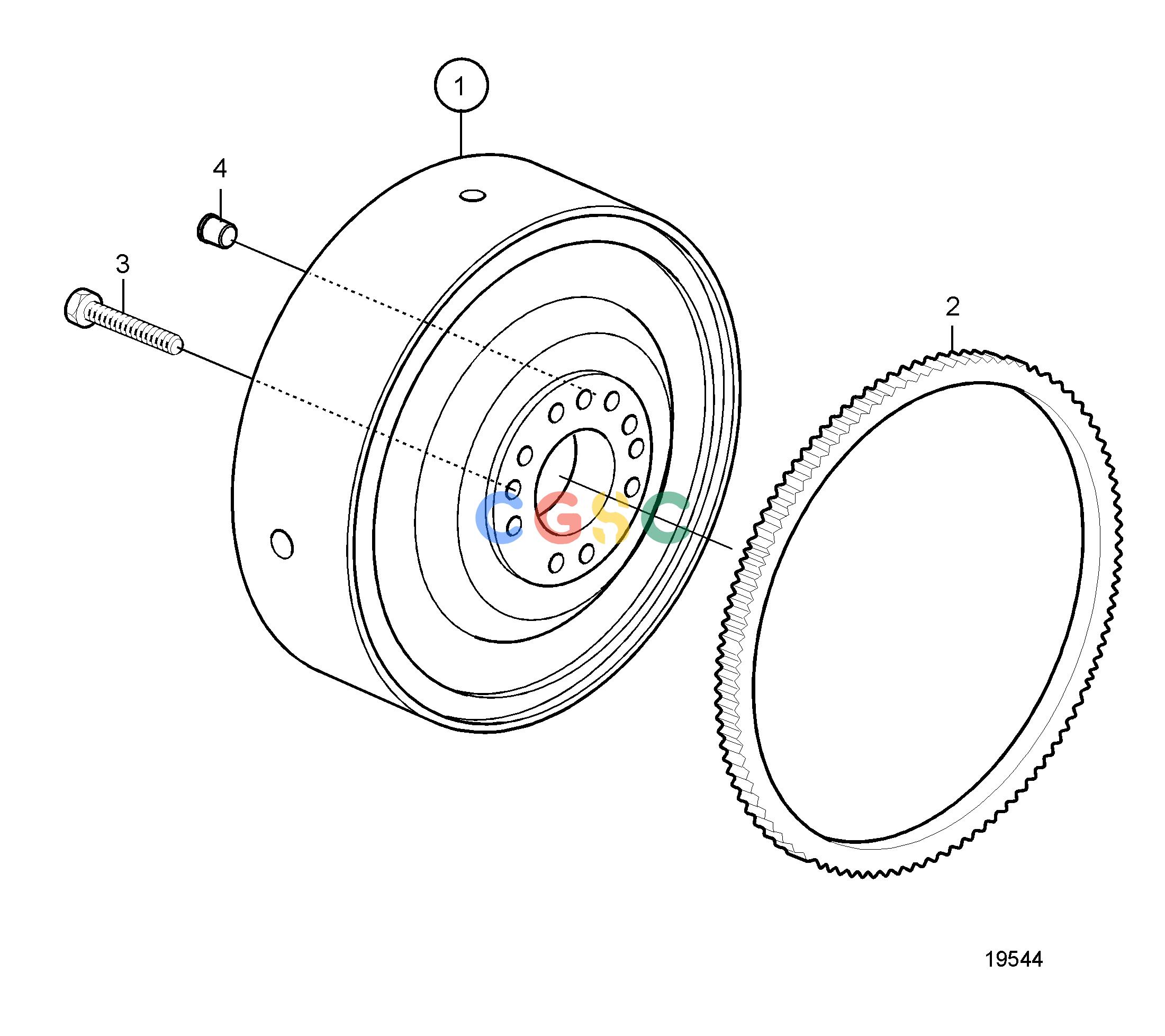

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 20459129 | [1] | Flywheel | For flywheel housing SAE 2 & 3., J=0.906 kgm². |
| 2. | 20405650 | [1] | Gear ring | |
| 2. | 21033328 | [1] | Starter gear ring | (20405650) |
| 3. | 20450835 | [10] | Hexagon screw | L=50mm |
| 4. | 20405643 | [5] | Expansion plug |
广数供应链运营团队, 14 02月, 2025，浏览： 978 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 20459129 | [1] | Flywheel | For flywheel housing SAE 2 & 3., J=0.906 kgm². |
| 2. | 20405650 | [1] | Gear ring | |
| 2. | 21033328 | [1] | Starter gear ring | (20405650) |
| 3. | 20450835 | [10] | Hexagon screw | L=50mm |
| 4. | 20405643 | [5] | Expansion plug |
