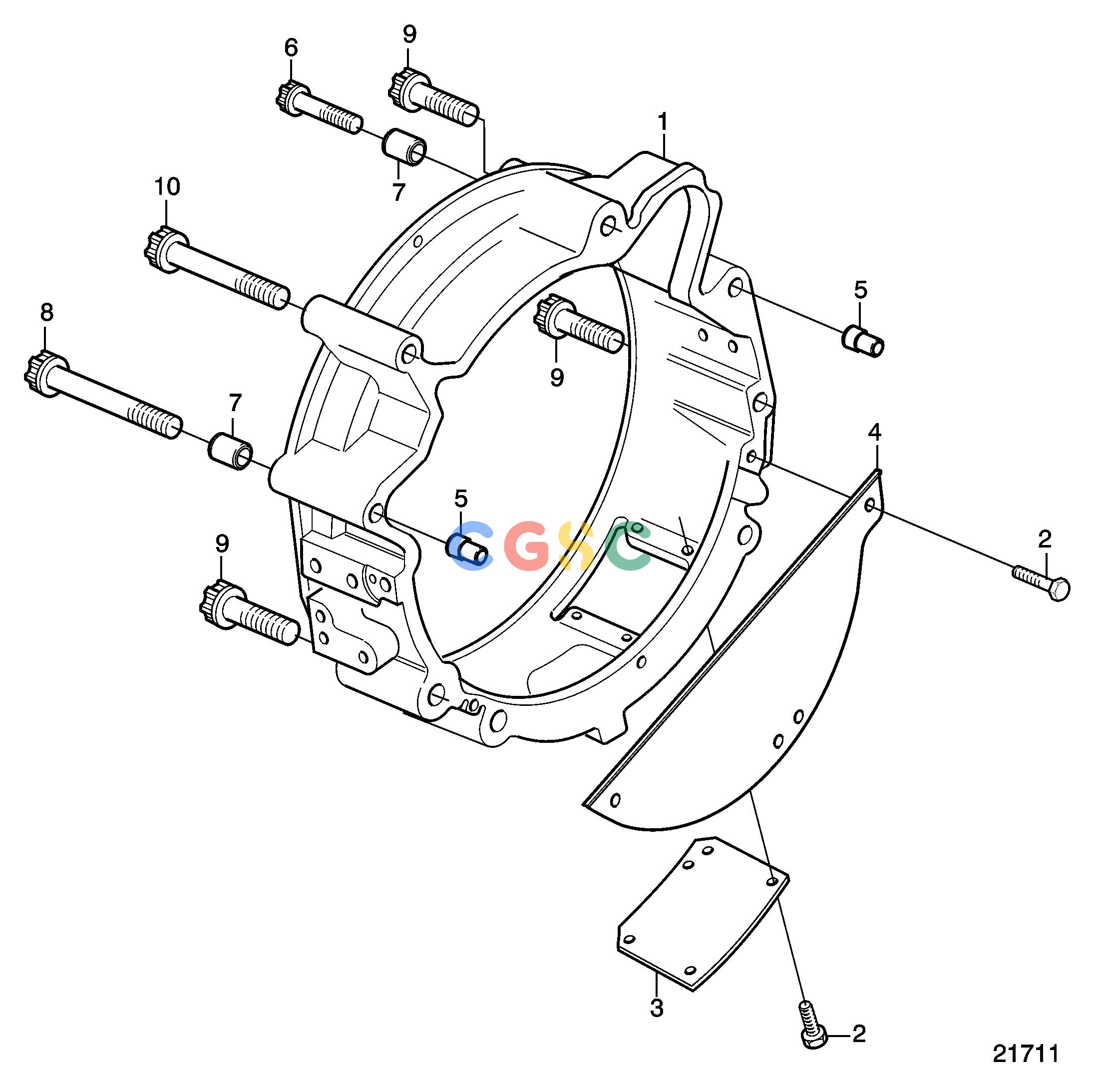

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAEngineFlywheel Housing SAE 1EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
267 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20585419
|
[1] |
Housing
|
SN-11120167, Replaced by 23121563
|
| 1. |
|
|
|
SN11120168-
|
| 2. |
967949
|
[6] |
Flange screw
|
|
| 3. |
888710
|
[1] |
Lid
|
|
| 3. |
20547288
|
[1] |
Cover plate
|
(888710)
|
| 4. |
20459989
|
[1] |
Cover
|
|
| 5. |
20585971
|
[2] |
Bushing
|
|
| 5. |
21455862
|
[2] |
Bushing
|
(20585971)
|
| 6. |
20405713
|
[1] |
Six point screw
|
L=85mm
|
| 7. |
20405646
|
[2] |
Bushing
|
|
| 8. |
20405714
|
[1] |
Six point screw
|
L=160mm
|
| 9. |
20501348
|
[3] |
Screw
|
L=85mm
|
| 10. |
20405715
|
[1] |
Six point screw
|
L=150mm
|
