纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (0.530[01A]) - MUFFLER - DC70 STD. S/N 13041067 & DOWN ; LGP S/N 13045015 & DOWN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
497 次

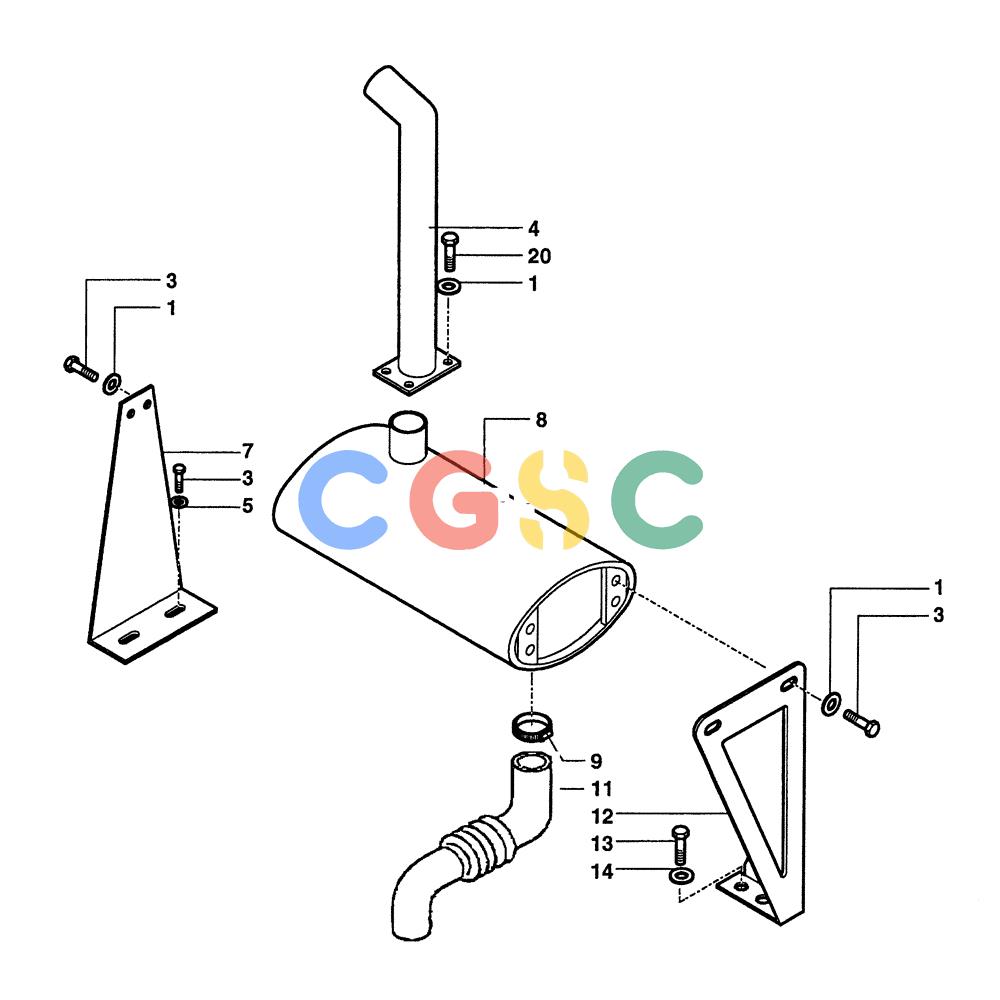

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598212 | [8] | LOCK WASHER | MACWASHER Superseded by part number: 11190679 |
| 3. | 76590946 | [4] | SCREW | LEC |
| 4. | 76595986 | [1] | EXHAUST SYSTEM PIPE | MACMUFFLER |
| 5. | 76598283 | [2] | LOCK WASHER | MACWASHER Superseded by part number: 11198374 |
| 7. | 76598725 | [1] | SUPPORT | MAC Superseded by part number: 76607067 |
| 8. | 76598726 | [1] | MUFFLER | MAC |
| 9. | 76595987 | [2] | CLAMP | MACCOLLAR |
| 11. | 76598727 | [1] | ELBOW | MACTUBE with a 4-bolt flange mounted on exhaust manifold. Flange gasket Cummins # 3912220 |
| 12. | 76598238 | [1] | SUPPORT | MAC |
| 13. | 76590733 | [2] | SCREW | MAC Superseded by part number: 11112424 |
| 14. | 76598239 | [2] | LOCK WASHER | MACWASHER Superseded by part number: 76605521 |
| 20. | 76590719 | [4] | SCREW | MAC Superseded by part number: 9706704 |
| 22. | 76598512 | [1] | FLEXIBLE HOSE | MACSCREW |
| 23. | 76598214 | [1] | FLEXIBLE HOSE | MACSLEEVE Superseded by part number: 76605856 |
