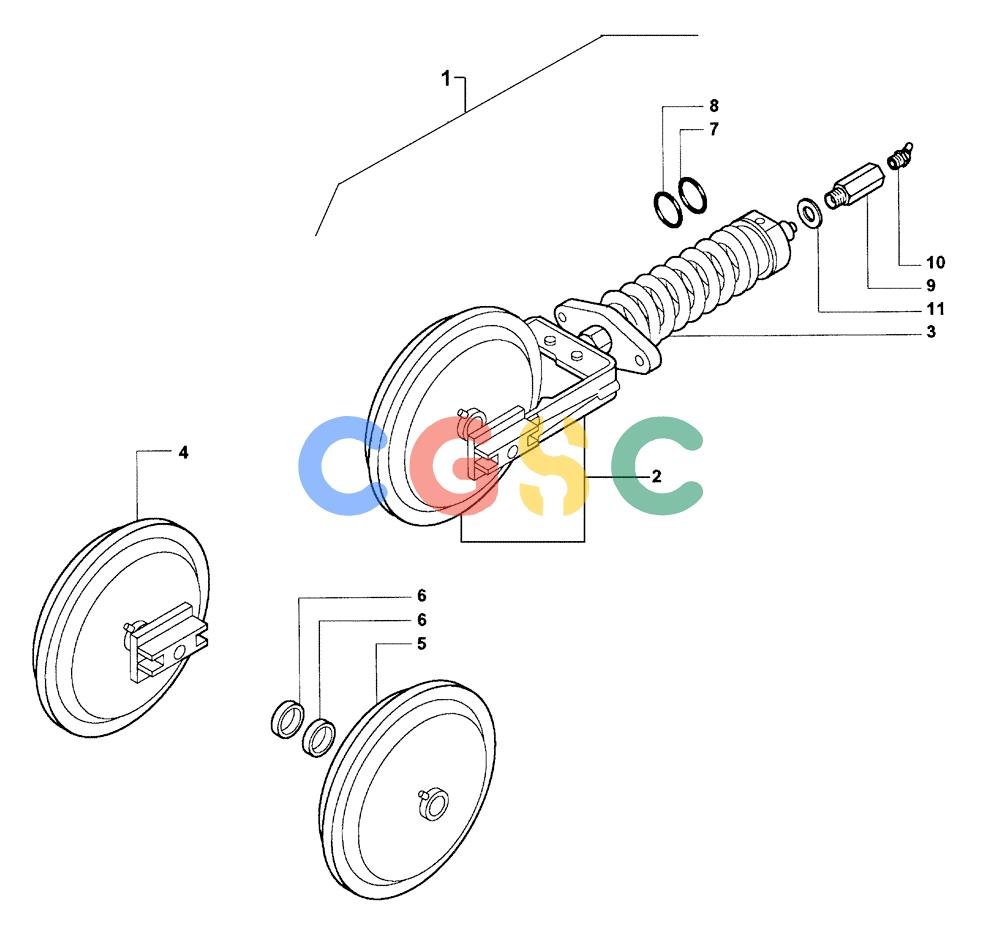

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (4.346[01A]) - TRACK IDLER DC70 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
676 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598669 | [2] | IDLER WHEEL | MACASSY. - INCLUDES REFS. 2 - 8 |
| 2. | 76598738 | [1] | IDLER WHEEL | MAC- COMPLETE WITH THE "U" BRACKET |
| 3. | 76598739 | [1] | SPRING | MAC- SHOCK ABSORBER |
| 4. | 76598740 | [1] | IDLER WHEEL | MACW/MOUNTING BRACKET - FOR SERVICING THE WHEEL ONLY |
| 5. | 76598741 | [1] | IDLER WHEEL | MACW/O MOUNTING BARACKET - FOR SERVICING THE WHEEL ONLY |
| 6. | 76598742 | [2] | SEAL | MAC- BUSHING Superseded by part number: 73133675 |
| 7. | 76590819 | [1] | GASKET | MAC- SEAL |
| 8. | 76590820 | [1] | GASKET | MAC |
| 9. | 76593603 | [1] | HYDRAULIC VALVE | MAC Superseded by part number: 76594911 |
| 10. | 76598743 | [1] | LUBE NIPPLE | MAC |
| 11. | 76593605 | [1] | WASHER | MAC |
