纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (4.347[01A]) - TRACK CARRIER ROLLER DC70 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
542 次

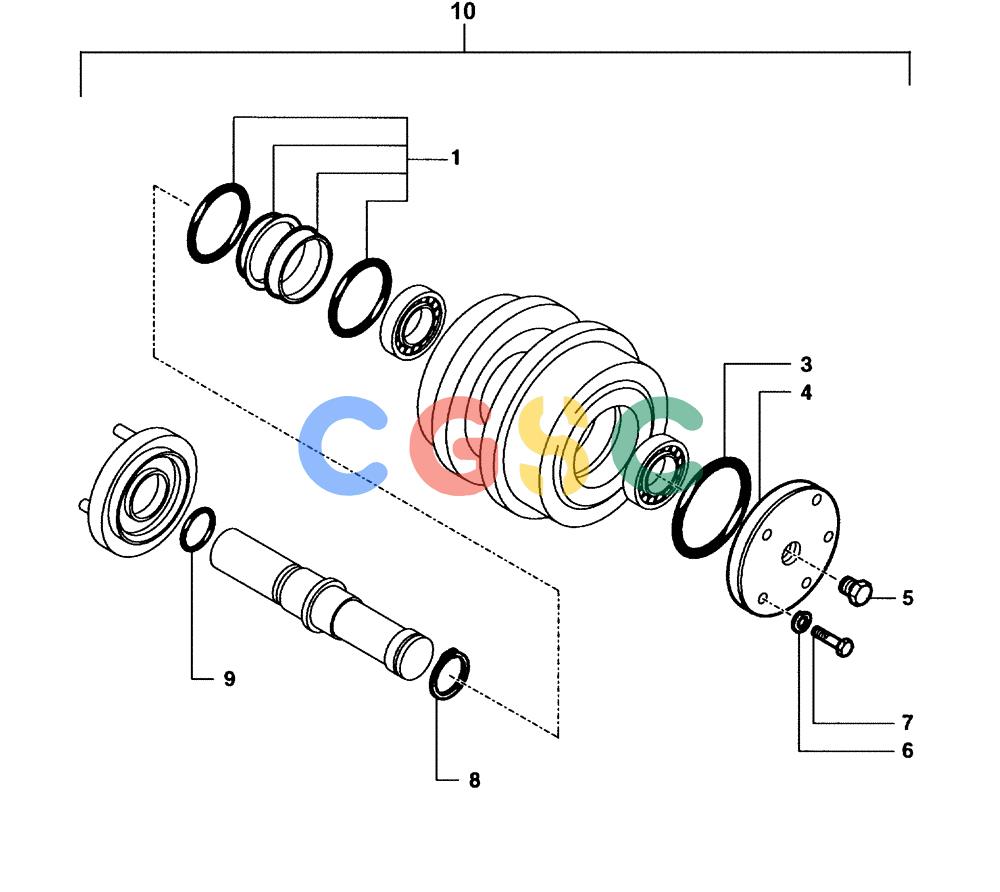

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598751 | [1] | SEAL KIT | MACSEALS Superseded by part number: 5111366 |
| 3. | 76598746 | [1] | SEAL | MAC Superseded by part number: 14464680 |
| 4. | 76598747 | [1] | COVER | MAC |
| 5. | 76598736 | [1] | PLUG | MAC Superseded by part number: 152103107 |
| 6. | 76590750 | [3] | LOCK WASHER | MAC Superseded by part number: 86517328 |
| 7. | 76590872 | [3] | SCREW | MAC Superseded by part number: 120100 |
| 8. | 76598748 | [1] | CIRCLIP | MAC |
| 9. | 76598749 | [1] | O-RING | MAC |
| 10. | 76598657 | [2] | ROLLER | MACASSY. - INCLUDES REFS. 1 - 9 |
