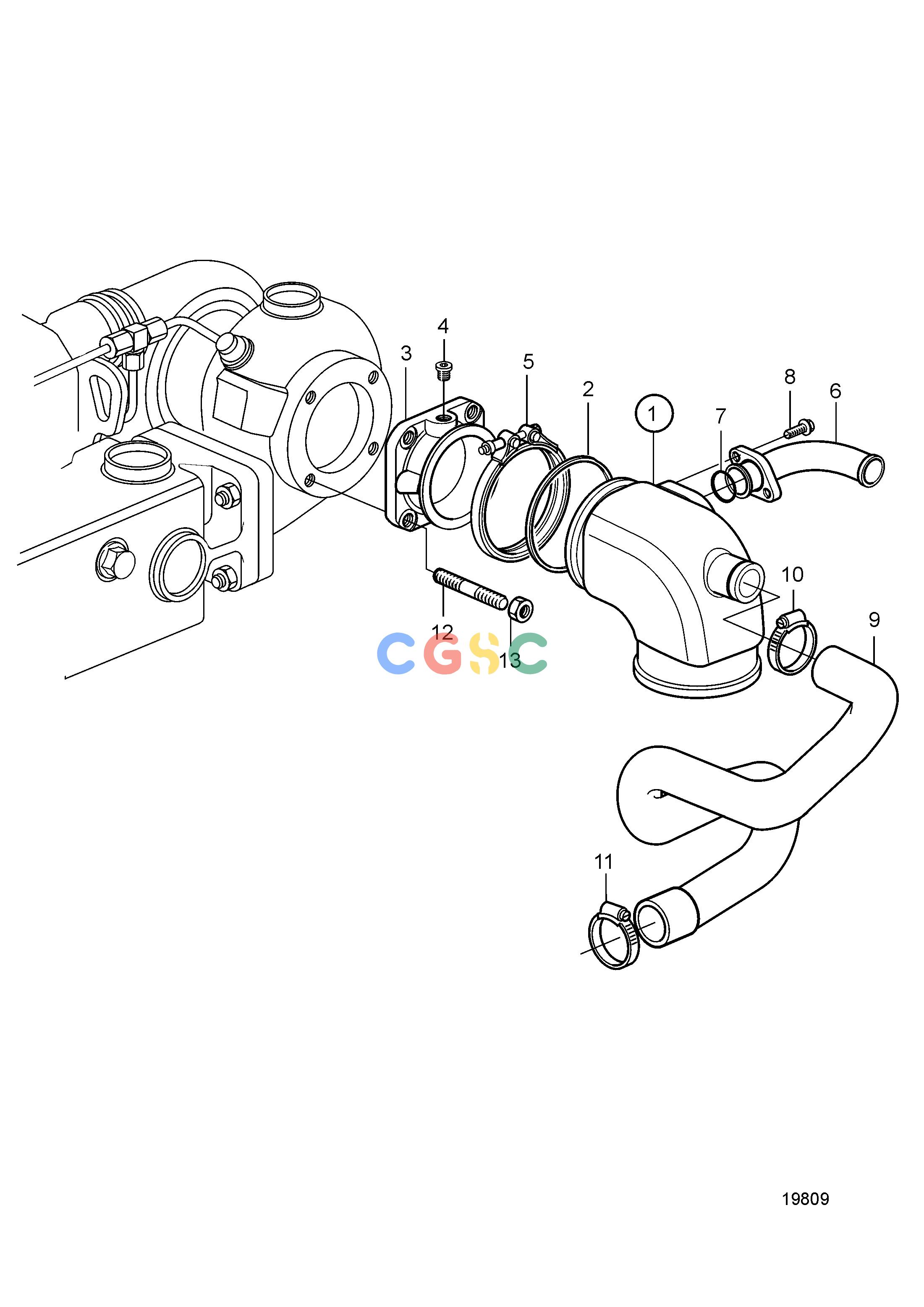

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAIntake and Exhaust SystemWet Exhaust Line 4'' (102mm)EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861289
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
859052
|
[1] |
Gasket
|
|
| 3. |
3835922
|
[1] |
Adapter
|
|
| 4. |
952075
|
[1] |
Plug
|
|
| 5. |
842993
|
[1] |
V-clamp
|
|
| 6. |
844258
|
[1] |
Coolant pipe
|
|
| 7. |
842913
|
[1] |
Sealing ring
|
|
| 8. |
984725
|
[2] |
Flange screw
|
|
| 9. |
3838428
|
[1] |
Hose
|
|
| 10. |
961670
|
[1] |
Hose clamp
|
|
| 11. |
961671
|
[1] |
Hose clamp
|
|
| 12. |
888883
|
[4] |
Stud
|
|
| 13. |
20517048
|
[4] |
Hexagon nut
|
|
